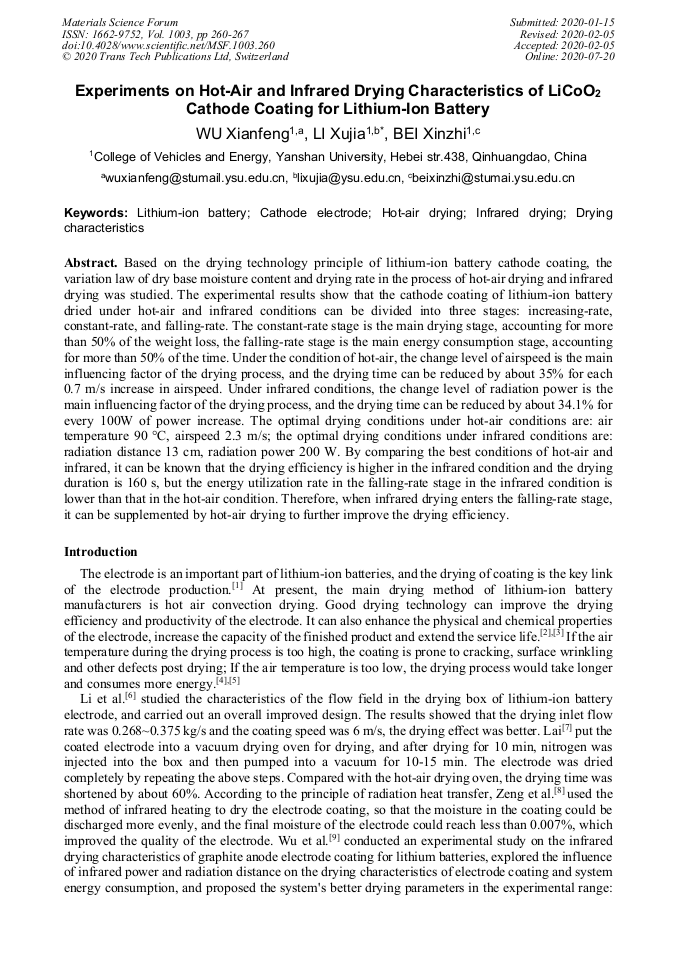

Experiments on Hot-Air and Infrared Drying Characteristics of LiCoO₂ Cathode Coating for Lithium-Ion Battery

Abstract:

Based on the drying technology principle of lithium-ion battery cathode coating, the variation law of dry base moisture content and drying rate in the process of hot-air drying and infrared drying was studied. The experimental results show that the cathode coating of lithium-ion battery dried under hot-air and infrared conditions can be divided into three stages: increasing-rate, constant-rate, and falling-rate. The constant-rate stage is the main drying stage, accounting for more than 50% of the weight loss, the falling-rate stage is the main energy consumption stage, accounting for more than 50% of the time. Under the condition of hot-air, the change level of airspeed is the main influencing factor of the drying process, and the drying time can be reduced by about 35% for each 0.7 m/s increase in airspeed. Under infrared conditions, the change level of radiation power is the main influencing factor of the drying process, and the drying time can be reduced by about 34.1% for every 100W of power increase. The optimal drying conditions under hot-air conditions are: air temperature 90 °C, airspeed 2.3 m/s; the optimal drying conditions under infrared conditions are: radiation distance 13 cm, radiation power 200 W. By comparing the best conditions of hot-air and infrared, it can be known that the drying efficiency is higher in the infrared condition and the drying duration is 160 s, but the energy utilization rate in the falling-rate stage in the infrared condition is lower than that in the hot-air condition. Therefore, when infrared drying enters the falling-rate stage, it can be supplemented by hot-air drying to further improve the drying efficiency.

• Periodical: Materials Science Forum (Volume 1003)
• Pages: 260-267
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.1003.260
• Online since: July 2020
• Authors: Xian Feng Wu, Xu Jia Li*, Xin Zhi Bei
• Keywords: Cathode Electrode, Drying Characteristics, Hot-Air Drying, Infrared Drying, Lithium-Ion Battery

References

[1] Susarla N, Ahmed S, Dees D W, Modeling and analysis of solvent removal during Li-ion battery electrode drying, J. Journal of Powe0r Sources. 378 (2018) 660-670.

DOI: 10.1016/j.jpowsour.2018.01.007

[2] Whitfield P S, Davidson I J, Cranswick L, et al, Investigation of possible superstructure and cation disorder in the lithium battery cathode material LiMn1/3Ni1/3Co1/3O2, using neutron and anomalous dispersion powder diffraction, J. Solid State Ionics. 176 (2005) 463-471.

DOI: 10.1016/j.ssi.2004.07.066

[3] Zeng T, An C S, Yi X, et al, Preparation and enhanced electrochemical performance of LiFePO4 nanoflakes directed by graphene through one-pot solvothermal reaction, J. The Chinese Journal of Nonferrous Metals. 29 (2019) 319-325.

[4] Huang W C, Hu G D, Zhang Q, et al, High temperature thermal simulation and thermal behavior of Li-ion battery, J. Battery Bimonthly. 48 (2018) 410-413.

[5] Huang H J, Huang Q S, Mechanism of recycling electrode materials spent lithium batteries by ball milling-low temperature heat treatment-flotation, J. Chinese Journal of Nonferrous Metals. 29 (2019) 878-886.

[6] Li X J, Gao D R, Yang Z B, et al, Study of uniform characteristics wind velocity field of dryer for lithium battery pole piece, J. Journal of Machine Design. 28 (2011) 77-81.

[7] Lai S W, China. Patent CN104028439A (2014).

[8] Zeng Q C, Huo C D and Zhang J S, China. Patent CN103017496A (2013).

[9] Wu X F, Li X J, Yang S Q, Wang N H, An Y H, Infrared drying characteristics of graphite anode coatings for lithium batteries, J. Science Technology and Engineering. 19 (2019) 159-164.

[10] Wang Y N, Experimental study on thermal wind drying of graphite anode coating for lithium battery, D. Qinhuangdao China Yanshan University (2018).

[11] Pan Y K, Wang X Z, Liu X D, Modern drying technology, Chemical Industry Press, Beijing, (2007).

[12] Wang J Y, Simulation Study on Energy Saving and Drying Characteristics of Train Drying, D. Dalian China Dalian University of Technology (2017).
