Microstructural and Dielectric Responses of Calcium Copper Titanate Added Soda-Lime Glass for High Frequency Devices

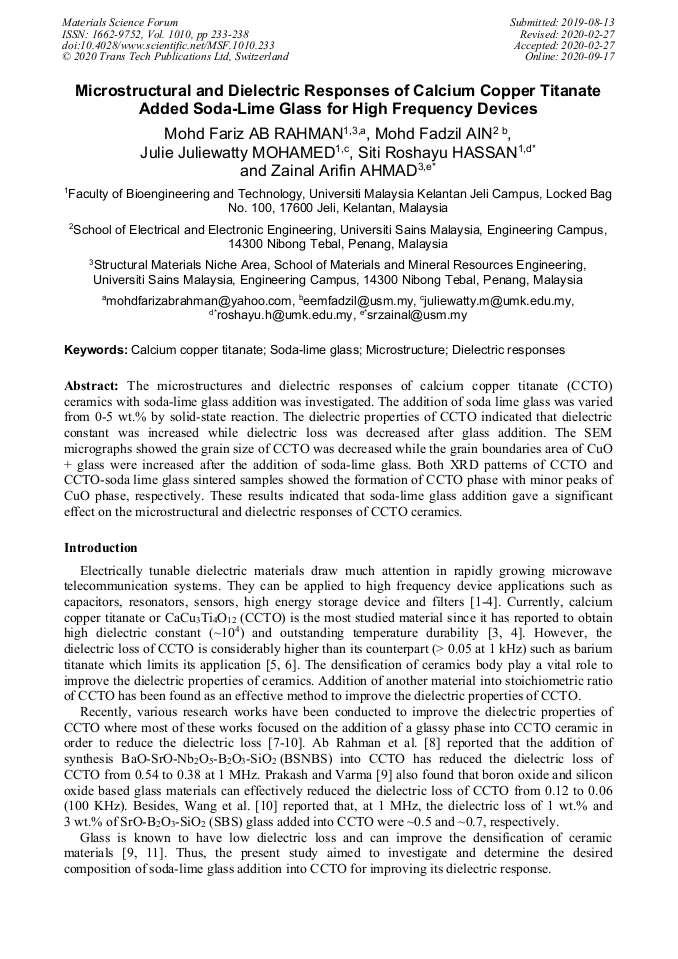

Article Preview

Abstract:

The microstructures and dielectric responses of calcium copper titanate (CCTO) ceramics with soda-lime glass addition was investigated. The addition of soda lime glass was varied from 0-5 wt.% by solid-state reaction. The dielectric properties of CCTO indicated that dielectric constant was increased while dielectric loss was decreased after glass addition. The SEM micrographs showed the grain size of CCTO was decreased while the grain boundaries area of CuO + glass were increased after the addition of soda-lime glass. Both XRD patterns of CCTO and CCTO-soda lime glass sintered samples showed the formation of CCTO phase with minor peaks of CuO phase, respectively. These results indicated that soda-lime glass addition gave a significant effect on the microstructural and dielectric responses of CCTO ceramics.

You might also be interested in these eBooks
Development and Investigation of Materials Using Modern Techniques II View Preview

Info:

Periodical:

Materials Science Forum (Volume 1010)

Pages:

233-238

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.1010.233

Citation:

Cite this paper

Online since:

September 2020

Authors:

Mohd Fariz Ab Rahman, Mohd Fadzil Ain, Julie Juliewatty Mohamed, Siti Roshayu binti Hassan, Zainal Arifin Ahmad*

Keywords:

Calcium Copper Titanate, Dielectric Responses, Grain Size, Soda-Lime Glass

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2020 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

References

[1] M. Ahmadipour, N.A. Rejab, M.F. Ab Rahman, M.F. Ain, Z.A. Ahmad, High sensitivity and selectivity of CaCu3Ti4O12-ZnO composites towards acetone gas at room temperature, Ceram. Int. 44 (2018) 6904-6911.

DOI: 10.1016/j.ceramint.2018.01.116

Google Scholar

[2] M.F. Ab Rahman, M.J. Abu, R.A. Zaman, J.J. Mohamed, M.F. Ain, M.K.M. Jamil, Z.A. Ahmad, Effect of calcination temperature on the breakdown strength and energy density of CaCu3Ti4O12 ceramic, Mater. Sci. Forum. 888 (2017) 23-27.

DOI: 10.4028/www.scientific.net/msf.888.23

Google Scholar

[3] M.A. Subramanian, D. Li, N. Duan, B.A. Reisner, A.W. Sleight, High dielectric constant in ACu3Ti4O12 and ACu3Ti3FeO12 phases, J. Solid State Chem. 151 (2000) 323-325.

DOI: 10.1006/jssc.2000.8703

Google Scholar

[4] D.C. Sinclair, T.B. Adams, F.D. Morrison, A.R. West, CaCu3Ti4O12: One-step internal barrier layer capacitor, Appl. Phys. Lett. 80 (2002) 2153-2155.

DOI: 10.1063/1.1463211

Google Scholar

[5] W. Li, T. Zhang, S. Liu, Z. Lu, R. Xiong, Decrease in the dielectric loss of CaCu3Ti4O12 at high frequency by Ru doping, Ceram. Int. 43 (2017) 4366-4371.

DOI: 10.1016/j.ceramint.2016.12.082

Google Scholar

[6] S.D.A Didry, C. Autret, A. Lucas, C. Honstettre, F. Pacreau, F. Gervais. Leading role of grain boundaries in colossal permittivity of doped and undoped CCTO, J. Eur. Ceram. Soc. 34 (2014) 3649-3654.

DOI: 10.1016/j.jeurceramsoc.2014.06.009

Google Scholar

[7] J.J. Mohamed, M.F. Ab Rahman, M.F. Ain, Z.A. Ahmad, Effect of glass addition on the properties of CaCu3Ti4O12 ceramics, Mater. Sci. Forum 840 (2016) 52-56.

Google Scholar

[8] M.F. Ab Rahman, M.F. Ain, J.J. Mohamed, Z.A. Ahmad, Effective dielectric loss (tan δ) reduction of CaCu3Ti4O12 (CCTO) via various addition of glasses, Int. J. Appl. Ceram. Tech. 16 (2019) 850-861.

DOI: 10.1111/ijac.13136

Google Scholar

[9] B.S. Prakash, K.B.R. Varma. Effect of the addition of B2O3 and BaO-B2O3-SiO2 glasses on the microstructure and dielectric properties of giant dielectric constant material CaCu3Ti4O12, J. Solid State Chem. 180 (2007) 1918-1927.

DOI: 10.1016/j.jssc.2007.04.018

Google Scholar

[10] B. Wang, Y. Pu, H. Wu, K. Chen, N. Xu. Effects of SrO-B2O3-SiO2 glass additive on the microstructure and dielectric properties of CaCu3Ti4O12, J. Mater. Sci. Mater. Electron. 23 (2012) 612-617.

DOI: 10.1007/s10854-011-0453-3

Google Scholar

[11] M.F. Ab Rahman, J.J. Mohamed, M.F. Ain, N.A. Rejab, H. Mohamad, Z.A. Ahmad. Characterization of Phase formation and Microstructural Evolution on Dielectric Properties of SrO-B2O3-SiO2 and BaO‐SrO‐Nb2O5‐B2O3‐SiO2 glasses, Int. J. Cur. Sci. Eng. Tech. 1 (2018) 1-4.

DOI: 10.30967/ijcrset.1.2.2018.1-4

Google Scholar

[12] P. Gao, H. Ji, Q. Jia, X. Li, Low temperature sintering and dielectric properties of Ba0.6Sr0.4TiO3–MgO composite ceramics with CaO–B2O3–SiO2 glass addition, J. Alloy Compd. 527 (2012) 90-95.

DOI: 10.1016/j.jallcom.2012.03.017

Google Scholar

[13] T.N. Aliabadi, P. Alizadeh. Microstructure and dielectric properties of CCTO glass-ceramic prepared by the melt-quenching method, In press (2019).

DOI: 10.1016/j.ceramint.2019.06.182

Google Scholar

[14] C.L. Huang, M.H. Weng, C.T. Lion, C.C. Wu, Low temperature sintering and microwave dielectric properties of Ba2Ti9O20 ceramics using glass addition, Mater. Res. Bull. 35 (2000) 2445-2456.

DOI: 10.1016/s0025-5408(00)00432-3

Google Scholar

[15] Y. Hu, Y. Pu, P. Wang, T. Wu, Effects of kaolinite additions on sintering behavior and dielectric properties of CaCu3Ti4O12 ceramics, J. Mater. Sci. Mater. Electron. 25 (2014) 546-551.

DOI: 10.1007/s10854-013-1622-3

Google Scholar

[16] V.S. Puli, D.K. Pradhan, D.B. Chrisey, M. Tomozawa, G. L. Sharma, J. F. Scott, R. S. Katiyar, Structure, dielectric, ferroelectric, and energy density properties of (1-x) BZT- xBCT ceramic capacitors for energy storage applications, J. Mater. Sci. 48 (2013) 2151-2157.

DOI: 10.1007/s10853-012-6990-1

Google Scholar

[17] B.A. Bender, M.J. Pan. The effect of processing on the giant dielectric properties of CaCu3Ti4O12, Mat. Sci. Eng. B. 117 (2005) 339-347.

Google Scholar

[18] T. Li, Z. Chen, Y. Su, L. Su, J. Zhang, Effect of grain size and Cu-rich phase on the electric properties of CaCu3Ti4O12 ceramics, J. Mater. Sci. Mater. Electron. 44 (2009) 6149-6154.

DOI: 10.1007/s10853-009-3850-8

Google Scholar

[19] W.X. Yuan, Z.J. Li, C.D. Wang, Relationship between microstructural evolution and electric properties of B2O3-CaCu3Ti4O12 composite ceramics, J. Mater. Sci. Mater. Electron. 23 (2012) 1552-1557.

DOI: 10.1007/s10854-012-0627-7

Google Scholar

[20] Q. Zhang, L. Wang, J. Luo, Q. Tang, J. Du, Improved energy storage density in barium strontium titanate by addition of BaO-SiO2-B2O3 glass, J. Am. Ceram. Soc. 92 (2009) 1871-1873.

DOI: 10.1111/j.1551-2916.2009.03109.x

Google Scholar

[21] T. Wang, L. Jin, L. Shu, Q. Hu, X. Wei, Energy storage properties in Ba0.4Sr0.6TiO3 ceramics with addition of semi-conductive BaO-B2O3-SiO2-Na2CO3-K2CO3 glass, J. Alloy Compd. 617 (2014) 399-403.

DOI: 10.1016/j.jallcom.2014.08.038

Google Scholar

[22] W.X. Yuan, Z. Luo, C. Wang, Investigation on effects of CuO secondary phase on dielectric properties of CaCu3Ti4O12 ceramics, J. Alloy Compd. 562 (2013) 1-4.

DOI: 10.1016/j.jallcom.2013.02.035

Google Scholar

[23] F. Luo, J. He, J. Hu, Electric and dielectric behaviors of Y-Doped Calcium Copper Titanate, J. American Ceram. Soc. 93 (2010) 3043-3045.

DOI: 10.1111/j.1551-2916.2010.04022.x

Google Scholar
