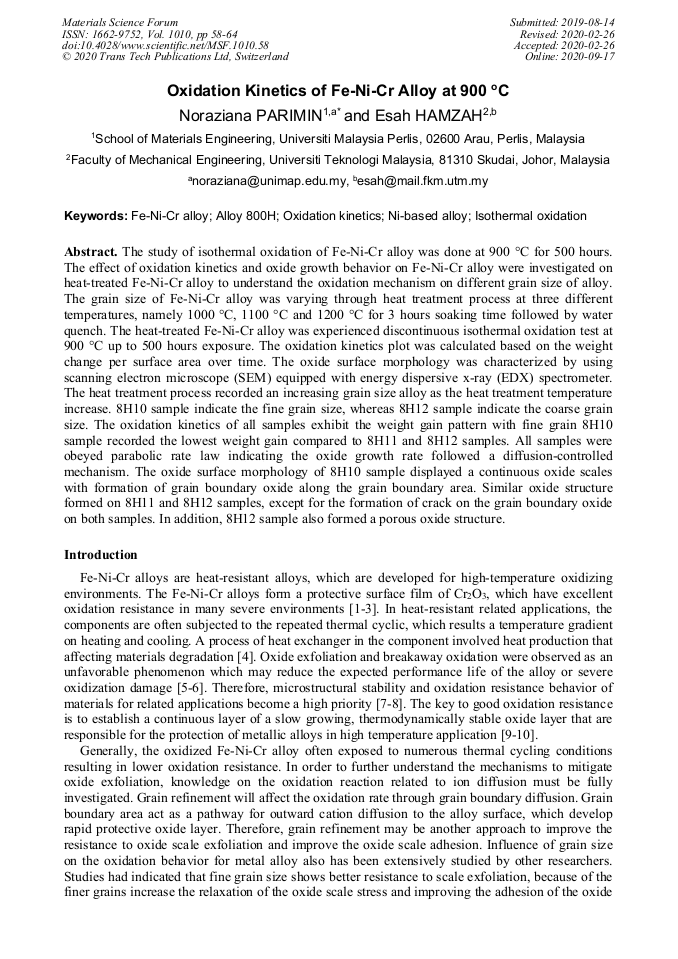

Oxidation Kinetics of Fe-Ni-Cr Alloy at 900 °C

Abstract:

The study of isothermal oxidation of Fe-Ni-Cr alloy was done at 900 °C for 500 hours. The effect of oxidation kinetics and oxide growth behavior on Fe-Ni-Cr alloy were investigated on heat-treated Fe-Ni-Cr alloy to understand the oxidation mechanism on different grain size of alloy. The grain size of Fe-Ni-Cr alloy was varying through heat treatment process at three different temperatures, namely 1000 °C, 1100 °C and 1200 °C for 3 hours soaking time followed by water quench. The heat-treated Fe-Ni-Cr alloy was experienced discontinuous isothermal oxidation test at 900 °C up to 500 hours exposure. The oxidation kinetics plot was calculated based on the weight change per surface area over time. The oxide surface morphology was characterized by using scanning electron microscope (SEM) equipped with energy dispersive x-ray (EDX) spectrometer. The heat treatment process recorded an increasing grain size alloy as the heat treatment temperature increase. 8H10 sample indicate the fine grain size, whereas 8H12 sample indicate the coarse grain size. The oxidation kinetics of all samples exhibit the weight gain pattern with fine grain 8H10 sample recorded the lowest weight gain compared to 8H11 and 8H12 samples. All samples were obeyed parabolic rate law indicating the oxide growth rate followed a diffusion-controlled mechanism. The oxide surface morphology of 8H10 sample displayed a continuous oxide scales with formation of grain boundary oxide along the grain boundary area. Similar oxide structure formed on 8H11 and 8H12 samples, except for the formation of crack on the grain boundary oxide on both samples. In addition, 8H12 sample also formed a porous oxide structure.

• Periodical: Materials Science Forum (Volume 1010)
• Pages: 58-64
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.1010.58
• Online since: September 2020
• Authors: Noraziana Parimin*, Esah Hamzah
• Keywords: Alloy 800H, Fe-Ni-Cr Alloy, Isothermal Oxidation, Ni-Based Alloys, Oxidation Kinetics, Oxide Scales

References

[1] C.N. Athreya, K. Deepak, D.I. Kim, B. Boer, S. Mandal, V.S. Sarma, Role of grain boundary engineered microstructure on high temperature stream oxidation behavior of Ni based superalloy alloy 617, J. of Alloys and Compounds 778(25) (2019) 224-233.

DOI: 10.1016/j.jallcom.2018.11.137

[2] M.S. Elbakshwan, S.K. Gill, A.K. Rumaiz, J. Bai., S. Ghose, R.B. Rebak, L.E. Ecker, High-temperature oxidation of advanced FeCrNi alloy in steam environments, App. Sur. Sci. 426(31) (2017) 562-571.

DOI: 10.1016/j.apsusc.2017.06.318

[3] Y.X. Xu, J.T. Lu, W.Y. Li, X.W. Yang, Oxidation behavior of Nb-rich Ni-Cr-Fe alloys: Role and effect of carbides precipitates, Corros. Sci. 140 (2018) 252-259.

DOI: 10.1016/j.corsci.2018.05.040

[4] S. Swaminathan, S.M. Hong, M. Kumar, W.S. Jung, D. IkKim, H. Singh, I.S. Choi, Microstructural evolution and high temperature oxidation characteristics of cold sprayed Ni-20Cr nanostructured alloy coating, Sur. and Coat. Tech. 362 (2019) 333-344.

DOI: 10.1016/j.surfcoat.2019.01.112

[5] C. Pascal, V. Parry, E. Fedorov, M. Braccini, P. Chemelle, N. Meyer, D. Oquab, D. Monceau, Y. Wouters, M. Mantel, Breakaway oxidation of austenitic stainless steels induced by alloyed Sulphur, Corros. Sci. 93 (2015) 100-108.

DOI: 10.1016/j.corsci.2015.01.007

[6] A. Col, V. Parry, C. Pascal, Oxidation of a Fe–18Cr–8Ni austenitic stainless steel at 850 °C in O2: Microstructure evolution during breakaway oxidation, Corros. Sci. 114 (2017) 17-27.

DOI: 10.1016/j.corsci.2016.10.029

[7] M.D. Pandey, S. Datla, R.L. Tapping, Y.C. Lu, The Estimation of Lifetime Distribution of Alloy 800 Steam Generator Tubing, Nuc. Eng. and Design 239(10) (2009) 1862–1869.

DOI: 10.1016/j.nucengdes.2009.05.027

[8] M. Fulger, D. Ohai, M. Mihalache, M. Pantiru, V. Malinovschi, Oxidation Behavior of Incoloy 800 under Simulated Supercritical Water Conditions, J. of Nuc. Mater. 385(2) (2009) 288–293.

DOI: 10.1016/j.jnucmat.2008.12.004

[9] S.H. Nie, Y. Chen, X. Ren, K. Sridharan, T.R. Allen, Corrosion of Alumina-Forming Austenitic Steel Fe-20Ni-14Cr-3Al-0.6Nb-0.1Ti in Supercritical Water, J. of Nuc. Mater. 399(2-3) (2010) 231–235.

DOI: 10.1016/j.jnucmat.2010.01.025

[10] I. Peter, A. Zago, M.A. Grande, D. Ugues, Thermo-Mechanical and Oxidation Behaviour of High Temperature Advanced Metallic Alloys, Sur. and Coat. Tech. 203(13) (2009) 1776–1784.

DOI: 10.1016/j.surfcoat.2008.12.021

[11] X. Wang, J.A. Szpunar, Effects of grain sizes on the oxidation behavior of Ni-based alloy 230 and N, J. of Alloys and Comp. 752 (2018) 40-52.

DOI: 10.1016/j.jallcom.2018.04.173

[12] H.Z. Zheng, S.Q. Lu, Y. Huang, Influence of Grain Size on the Oxidation Behavior of NbCr2 Alloys at 950–1200°C, Corros. Sci. 51(2) (2009) 434–438.

DOI: 10.1016/j.corsci.2008.11.014

[13] X. Peng, J. Yan, Y. Zhou, F. Wang, Effect of Grain Refinement on the Resistance of 304 Stainless Steel to Breakaway Oxidation in Wet Air, Acta Materialia 53(19) (2005) 5079–5088.

DOI: 10.1016/j.actamat.2005.07.019
