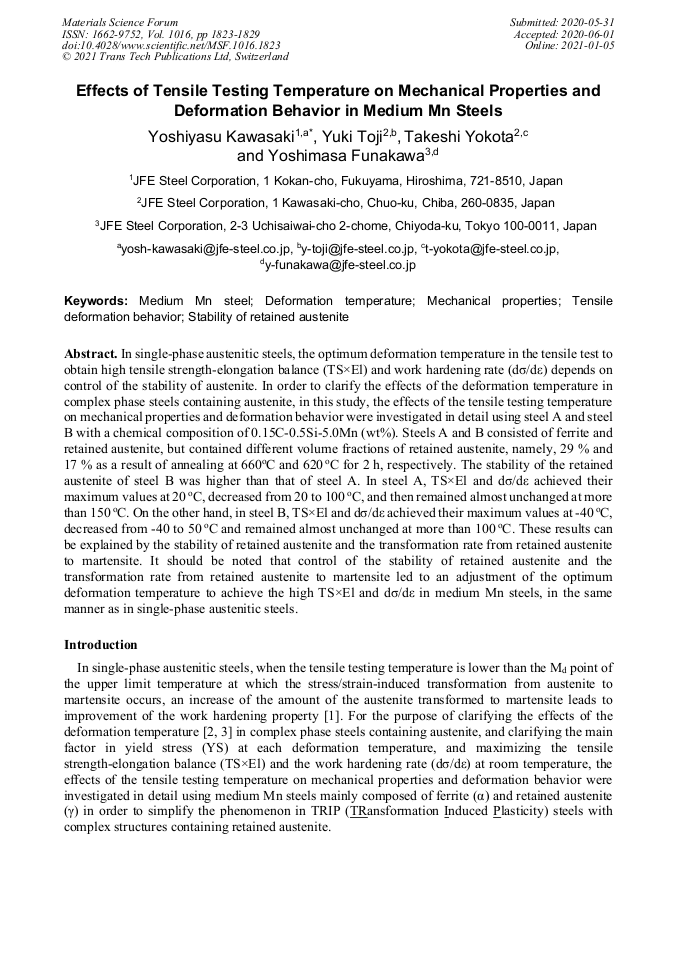

Effects of Tensile Testing Temperature on Mechanical Properties and Deformation Behavior in Medium Mn Steels

Abstract:

In single-phase austenitic steels, the optimum deformation temperature in the tensile test to obtain high tensile strength-elongation balance (TS×El) and work hardening rate (dσ/dε) depends on control of the stability of austenite. In order to clarify the effects of the deformation temperature in complex phase steels containing austenite, in this study, the effects of the tensile testing temperature on mechanical properties and deformation behavior were investigated in detail using steel A and steel B with a chemical composition of 0.15C-0.5Si-5.0Mn (wt%). Steels A and B consisted of ferrite and retained austenite, but contained different volume fractions of retained austenite, namely, 29 % and 17 % as a result of annealing at 660 °C and 620 °C for 2 h, respectively. The stability of the retained austenite of steel B was higher than that of steel A. In steel A, TS×El and dσ/dε achieved their maximum values at 20 °C, decreased from 20 to 100 °C, and then remained almost unchanged at more than 150 °C. On the other hand, in steel B, TS×El and dσ/dε achieved their maximum values at -40 °C, decreased from -40 to 50 °C and remained almost unchanged at more than 100 °C. These results can be explained by the stability of retained austenite and the transformation rate from retained austenite to martensite. It should be noted that control of the stability of retained austenite and the transformation rate from retained austenite to martensite led to an adjustment of the optimum deformation temperature to achieve the high TS×El and dσ/dε in medium Mn steels, in the same manner as in single-phase austenitic steels.

• Periodical: Materials Science Forum (Volume 1016)
• Pages: 1823-1829
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.1016.1823
• Online since: January 2021
• Authors: Yoshiyasu Kawasaki*, Yuki Toji, Yokota Takeshi, Yoshimasa Funakawa
• Keywords: Deformation Temperature, Mechanical Properties, Medium Mn Steel, Stability of Retained Austenite, Tensile Deformation Behaviour

References

[1] I. Tamura, T. Maki and H. Hato, On the morphology of strain-induced martensite and the transformation-induced plasticity in Fe-Ni and Fe-Cr-Ni alloys, Transactions ISIJ, 10 (1970), 163.

DOI: 10.2355/isijinternational1966.10.163

[2] L. Luo, W. Li, L. Wang, S. Zhou and X. Jin, Tensile behaviors and deformation mechanism of a medium Mn-TRIP steel at different temperatures, Mat. Sci. Eng. A, 682 (2017), 698-703.

DOI: 10.1016/j.msea.2016.11.017

[3] K. Sugimoto, H. Tanino and J. Kobayashi, Warm ductility of 0.2% C-1.5% Si-5% Mn-TRIP-aided steel, Mat. Sci. Eng. A, 688 (2017), 237-243.

DOI: 10.1016/j.msea.2017.02.018

[4] Y. Kawasaki, Y. Toji, T. Kobayashi, T. Yamashita, K. Sato and Y. Funakawa, Microstructure and tensile deformation behavior of medium-Mn TRIP steels, CAMP-ISIJ, 29 (2016), 759.

[5] H. Kajimura, Application of heat-resistant stainless steel to automobile engine exhaust system, Bull. Iron Steel Inst. Jpn, 11 (2006), 68.

[6] G.B. Olson and M. Cohen, A mechanism for the strain-induced nucleation of martensitic transformations, J. Less-Common Metals, 28 (1972), 107.

DOI: 10.1016/0022-5088(72)90173-7
