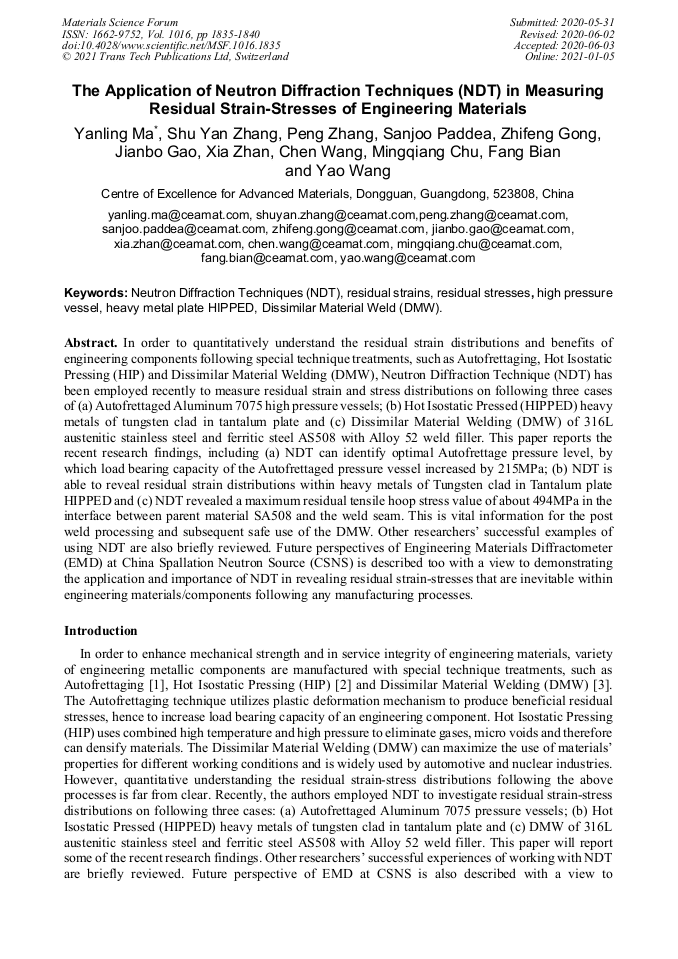

The Application of Neutron Diffraction Techniques (NDT) in Measuring Residual Strain-Stresses of Engineering Materials

Abstract:

In order to quantitatively understand the residual strain distributions and benefits of engineering components following special technique treatment, such as Autofrettaging, Hot Isostatic Pressing (HIP) and Dissimilar Material Welding (DMW), the Neutron Diffraction Technique (NDT) has been employed recently to measure residual strain and stress distributions on following three cases of (a) Autofrettaged Aluminum 7075 high pressure vessels; (b) Hot Isostatic Pressed (HIPPED) heavy metals of tungsten clad in tantalum plate and (c) Dissimilar Material Welding (DMW) of 316L austenitic stainless steel and ferritic steel AS508 with Alloy 52 weld filler. This paper reports the recent research findings, including (a) NDT can identify optimal Autofrettage pressure level, by which load bearing capacity of the Autofrettaged pressure vessel increased by 215MPa; (b) NDT is able to reveal residual strains within heavy metals of Tungsten clad in Tantalum plate HIPPED and (c) NDT revealed a maximum residual tensile hoop stress value of about 494MPa in the interface between parent material SA508 and the weld seam. This is vital information for the post weld process and subsequent safe use of the dissimilar materials weld. Other researchers’ successful examples of working with NDT are also briefly reviewed. Future prospective of Engineering Materials Diffractometer (EMD) at CSNS is described too with a view to demonstrating the application and importance of NDT in revealing residual strain-stresses that are inevitable within engineering materials and engineering components following any manufacturing process.

• Periodical: Materials Science Forum (Volume 1016)
• Pages: 1835-1840
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.1016.1835
• Online since: January 2021
• Authors: Yan Ling Ma*, Shu Yan Zhang, Peng Zhang, Sanjoo Paddea, Zhi Feng Gong, Jian Bo Gao, Xia Zhan, Chen Wang, Ming Qiang Chu, Fang Bian, Yao Wang
• Keywords: Compound Heavy Metal Plate, Dissimilar Material Weld, High Pressure Vessel, Neutron Diffraction Techniques (NDT), Residual Strains, Residual Stresses

References

[1] R.R. de Swardt and T.D. Andrews (2006), Stress analysis of autofrettaged midwall cooled compound gun tubes, J. of Pressure Vessel Technology, Vol. 128(2), pp.201-207.

DOI: 10.1115/1.2172968

[2] H.V. Atkinson and S. Davies (2000), Fundamental aspects of hot isostatic pressing: An Overview, J. of Metallurgical and Materials Transactions A, Vol.31, pp.2981-3000.

DOI: 10.1007/s11661-000-0078-2

[3] A.H. Yaghi, T.H. Hyde, A.A. Becker and W. Sun (2013), Finite element simulation of welding residual stresses in martensitic steel pipes, J. of Materials Research Innovations,Vol.17, Issue5, pp.306-311.

DOI: 10.1179/1433075x13y.0000000140

[4] Y. Ma, S.Y. Zhang, and C. Goodway, et al(2012), A non-destructive experimental investigation of elastic plastic interfaces of autofrettaged thick-walled cylindrical aluminium high pressure vessels. Int. J. of High Pressure Research, Vol. 32, Issue 3, pp.364-375.

DOI: 10.1080/08957959.2012.702766

[5] Y. Ma, S.Y. Zhang, D. Jenkins and S. Kabra (2015), An experiment of using neutron diffraction to investigate residual strain distribution in a hot isostatic pressed (HIPPED) target plate, J. of Materials Today: Proceedings 2S(2015), pp.267-273.

DOI: 10.1016/j.matpr.2015.05.039

[6] D. Haynes, internal ISIS communication, ISIS TS1 and TS2 target operation dates, 18/08/(2014).

[7] S.Y. Zhang, E. Godfrey, and W. Kockelmann et al (2009), High-tech composites to ancient metals, J. of Materials Today, Neutron Scattering Special Issue, Review, Vol.12, Issues7-8, pp.78-84.

[8] Y. Ma, D. Jenkins, S. Kabra and S.Y. Zhang (2018), A comparison of strains induced by manufacturing and operational conditions of a Tantalum clad tungsten plate of an ISIS TS1 Solid Target", ICANS XXII, IOP Conf. Series: J. of Physics: Conf. Series 1021(2018) 012086 doi :10.1088/1742-6596/1021/1/012086.

DOI: 10.1088/1742-6596/1021/1/012086

[9] G.J. Baxter, M. Preuss and P.J. Withers, Inertia friction welding of nickel base supperalloys for aerospace applications, Information on https://www.researchgate.net/publication/23724484.

[10] W. Wagner, Y. Dai, and H. Glasbrenner et al (2006), Status of SINQ, the only MW spallation neutron source—highlighting target development and industrial applications, J. of Nuclear Instruments and Methods in Physics Research, A562, pp.541-547.

DOI: 10.1016/j.nima.2006.02.026

[11] M. Turski, A. Paradowska, and S.Y. Zhang et al, Validation of predicted residual stresses within direct chill cast magnesium alloy slab, J. of Metallurgical and materials Transaction A, Vol 43A, May 2012, pp.1547-1557,.

DOI: 10.1007/s11661-011-1077-1
