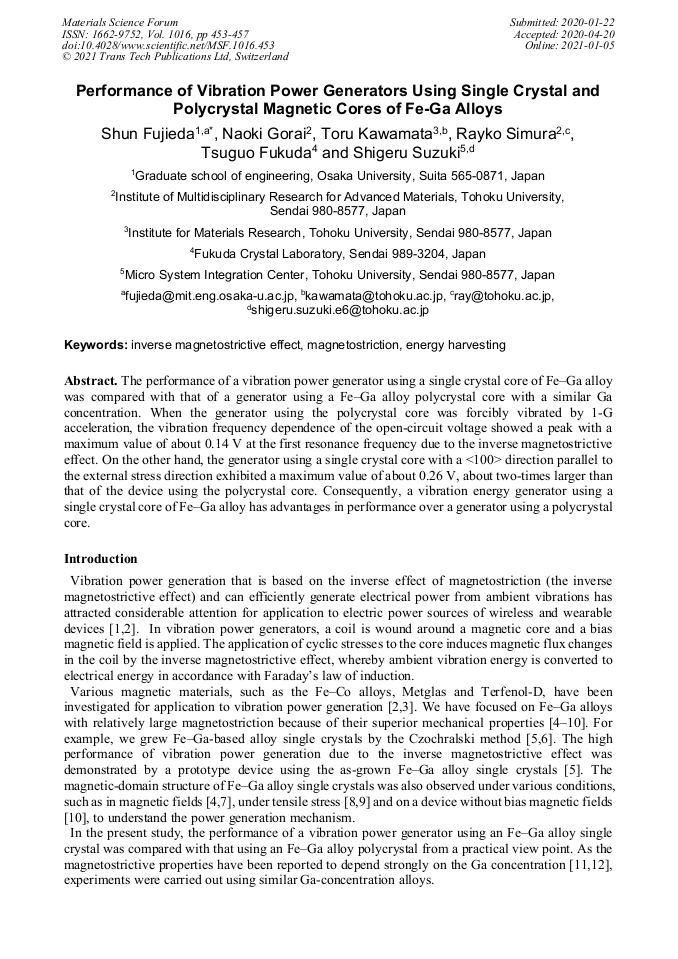

Performance of Vibration Power Generators Using Single Crystal and Polycrystal Magnetic Cores of Fe–Ga Alloys

Abstract:

The performance of a vibration power generator using a single crystal core of Fe–Ga alloy was compared with that of a generator using a Fe–Ga alloy polycrystal core with a similar Ga concentration. When the generator using the polycrystal core was forcibly vibrated by 1-G acceleration, the vibration frequency dependence of the open-circuit voltage showed a peak with a maximum value of about 0.14 V at the first resonance frequency due to the inverse magnetostrictive effect. On the other hand, the generator using a single crystal core with a <100> direction parallel to the external stress direction exhibited a maximum value of about 0.26 V, about two-times larger than that of the device using the polycrystal core. Consequently, a vibration energy generator using a single crystal core of Fe–Ga alloy has advantages in performance over a generator using a polycrystal core.

• Periodical: Materials Science Forum (Volume 1016)
• Pages: 453-457
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.1016.453
• Online since: January 2021
• Authors: Shun Fujieda*, Naoki Gorai, Toru Kawamata, Rayko Simura, Tsuguo Fukuda, Shigeru Suzuki
• Keywords: Energy Harvesting, Inverse Magnetostrictive Effect, Magnetostriction

References

[1] T. Ueno, S. Yamada, Performance of energy harvester using iron-gallium alloy in free vibration, IEEE Trans. Magn., 47 (2011) 2407-2409.

DOI: 10.1109/tmag.2011.2158303

[2] Z. Deng, M.J. Dapino, Review of magnetostrictive vibration energy harvesters, Smart Mater. Struct., 26 (2017) 103001.

DOI: 10.1088/1361-665x/aa8347

[3] Z. Yang, K. Nakajima, R. Onodera, T. Tayama, D. Chiba and F. Narita, Appl. Phys. Lett., 112 (2018) 073902.

DOI: 10.1063/1.5016197

[4] S. Suzuki, T. Kawamata, R. Simura, S. Asano, S. Fujieda, R.Y. Umetsu, M. Fujita, M. Inafuku, T. Kumagai and T. Fukuda, Anisotropy of magnetostriction of functional bcc iron-based alloys, Mater. Trans., 60 (2019) 2235-2244.

DOI: 10.2320/matertrans.mt-m2019146

[5] S. Fujieda, S. Suzuki, A. Minato, T. Fukuda, T. Ueno, Growth of Fe-Ga alloy single crystals by the Czochralski method and their application to vibration power generator, IEEE Trans. Magn., 50 (2014) 2505204.

DOI: 10.1109/tmag.2014.2331139

[6] S. Fujieda, R. Ukai, Y. Onuki, S. Suzuki, T. Fukuda, Influence of Co substitution on magnetostriction and on Young's modulus of Fe-Ga alloy single crystal, AIP Conf. Proc., 1649 (2015) 27-31.

DOI: 10.1063/1.4913540

[7] S. Asano, S. Fujieda, S. Hashi, K. Ishiyama, T. Fukuda, S. Suzuki, Magnetic domain structure and magnetostriction of Fe-Ga single crystal grown by the Czochralski method, IEEE Magn. Lett., 8 (2017) 6101004.

DOI: 10.1109/lmag.2016.2619332

[8] S. Fujieda, S. Asano, S. Hashi, K. Ishiyama, T. Fukuda and S. Suzuki, Significant reduction in Young's modulus of Fe–Ga alloy single crystal by inverse magnetostrictive effect under tensile stress, J. Appl. Phys., 124 (2018) 233901.

DOI: 10.1063/1.5063718

[9] S. Fujieda, S. Asano, S. Hashi, K. Ishiyama, T. Fukuda and S. Suzuki, Magnetostrictive property and magnetic domain structure of Fe-Ga alloy single crystal under tensile strain, Mater. Sci. Forum, 941 (2018) 914-918.

DOI: 10.4028/www.scientific.net/msf.941.914

[10] T. Takahashi, R. Simura, S. Fujieda, T. Kawamata, S. Suzuki, and T. Fukuda, Investigation of power generation mechanism and anisotropy of Fe–Ga magnetostrictive alloy single crystal based on magnetic domain observations, Jpn. J. Appl. Phys., 58 (2019) 106508.

DOI: 10.7567/1347-4065/ab3e60

[11] A.E. Clark, J.B. Restorff, M. Wun-Fogle, T.A. Lograsso, D.L. Schlagel, Magnetostrictive properties of body-centered cubic Fe-Ga and Fe-Ga-Al alloys, IEEE Trans. Magn., 36 (2000) 3238-3240.

DOI: 10.1109/20.908752

[12] A.E. Clark, K.B. Hathaway, M. Wun-Fogle, J.B. Restorff, T.A. Lograsso, V.M. Keppens, G. Petculescu and R.T. Taylor, Extraordinary magnetoelasticity and lattice softening in bcc Fe-Ga alloys J. Appl. Phys., 93 (2003) 8621-8623.

DOI: 10.1063/1.1540130

[13] T. Ueno, U-shape magnetostrictive vibration based power generator for universal use, Proc. SPIE, 9806 (2016) 98060E.
