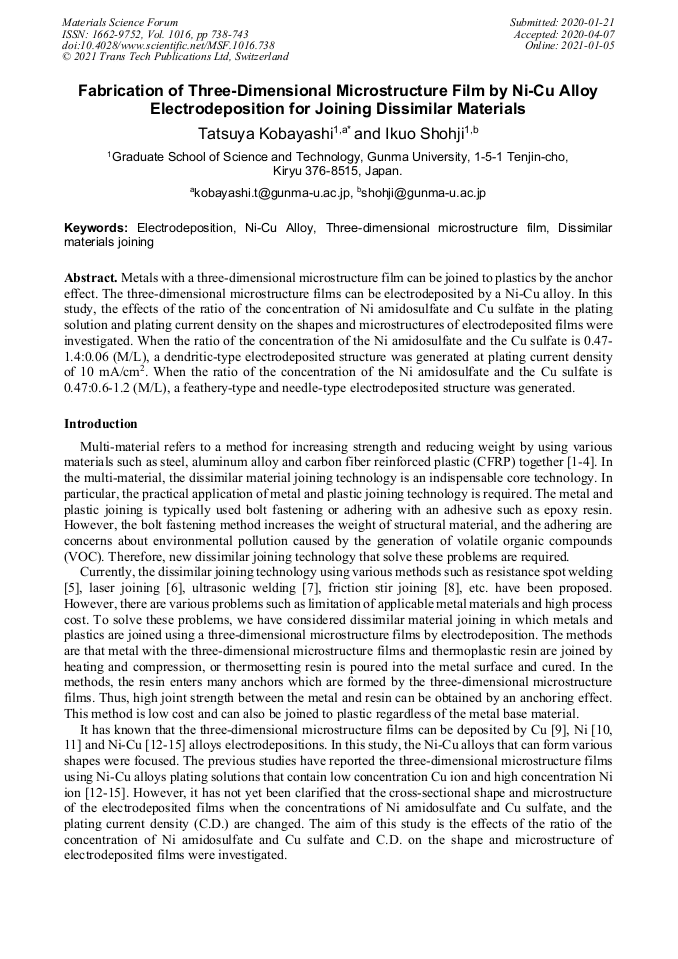

Fabrication of Three-Dimensional Microstructure Film by Ni-Cu Alloy Electrodeposition for Joining Dissimilar Materials

Abstract:

Metals with a three-dimensional microstructure film can be joined to plastics by the anchor effect. The three-dimensional microstructure films can be electrodeposited by a Ni-Cu alloy. In this study, the effects of the ratio of the concentration of Ni amidosulfate and Cu sulfate in the plating solution and plating current density on the shapes and microstructures of electrodeposited films were investigated. When the ratio of the concentration of the Ni amidosulfate and the Cu sulfate is 0.47-1.4:0.06 (M/L), a dendritic-type electrodeposited structure was generated at plating current density of 10 mA/cm². When the ratio of the concentration of the Ni amidosulfate and the Cu sulfate is 0.47:0.6-1.2 (M/L), a feathery-type and needle-type electrodeposited structure was generated.

• Periodical: Materials Science Forum (Volume 1016)
• Pages: 738-743
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.1016.738
• Online since: January 2021
• Authors: Tatsuya Kobayashi, Ikuo Shohji
• Keywords: Dissimilar Materials Joining, Electrodeposition, Ni-Cu Alloy, Three-Dimensional Microstructure Film

References

[1] M. Goede, M. Stehlin, L. Rafflenbeul, G. Kopp, E. Beeh, Super light car-lightweight construction thanks to a multi-material design and function integration, Eur. Transp. Res. Rev. 1 (2009) 5-10.

DOI: 10.1007/s12544-008-0001-2

[2] J. Korta, T. Uhl, Multi-material design optimization of a bus body structure, J. KONES Powertrain and Transport 20 (2013) 139-146.

DOI: 10.5604/12314005.1135327

[3] J. Korta, A. Mlyniec, T. Uhl, Experimental and numerical study on the effect of humidity-temperature cycling on structural multi-material adhesive joints, Composites: Part B 79 (2015) 621-630.

DOI: 10.1016/j.compositesb.2015.05.020

[4] H.C. Schmidt, U. Damerow, C. Lauter, B. Gorny, F. Hankeln, W. Homberg, T. Troester, H.J. Maier, R. Mahnken, Manufacturing processes for combined forming of multi-material structures consisting of sheet metal and local CFRP reinforcements, Key. Eng. Mater. 504-506 (2012) 295-300.

DOI: 10.4028/www.scientific.net/kem.504-506.295

[5] K. Nagatsuka, B. Xiao, L. Wu, K. Nakata, S. Saeki, Y. Kitamoto, Y. Iwamoto, Resistance spot welding of metal/carbon-fibre-reinforced plastics and applying silane coupling treatment, Science and Technology of Welding and Joining 23 (2018) 181-186.

DOI: 10.1080/13621718.2017.1362159

[6] K.W. Jung, Y. Kawahito, M. Takahashi, S. Katayama, Laser direct joining of carbon fiber reinforced plastic to zinc-coated steel, Materials and Design 47 (2013) 179-188.

DOI: 10.1016/j.matdes.2012.12.015

[7] F. Balle, D. Eifler, Statistical test planning for ultrasonic welding of dissimilar materials using the example of aluminum-carbon fiber reinforced polymers (CFRP) joints, Mat.-wiss. u. Werkstofftech. 43 (2012) 286-292.

DOI: 10.1002/mawe.201200943

[8] K. Nagatsuka, S. Yoshida, A. Tsuchiya, K. Nakata, Direct joining of carbon-fiber-reinforced plastic to an aluminum alloy using friction lap joining, Composites: Part B 73 (2015) 82-88.

DOI: 10.1016/j.compositesb.2014.12.029

[9] J.M. Lee, J.S. Ko, Effects of a micro pattern on Cu alloy electrodeposition and its application as an oil detector, Micro and Nano Syst. Lett. 4 (2016) Article number: 9.

DOI: 10.1186/s40486-016-0034-6

[10] J.M. Lee, K.K. Jung, J.S. Ko, Effect of NaCl in a nickel electrodeposition on the formation of nickel nanostructure, J. Mater. Sci. 52 (2016) 3036-3044.

DOI: 10.1007/s10853-015-9614-8

[11] M. Hashemzadeh, K. Raeissi, F. Ashrafizadeh, S. Khorsand, Effect of ammonium chloride on microstructure, super-hydrophobicity and corrosion resistance of nickel coatings, Surface & Coatings Technology 283 (2015) 318-328.

DOI: 10.1016/j.surfcoat.2015.11.008

[12] Z. Lia, H. Bian, C.M. Lee, X. Chen, Y.Y. Li, Nickel nanotube array via electroplating and dealloying, Thin Solid Films 658 (2018) 1-6.

DOI: 10.1016/j.tsf.2018.05.015

[13] D. Goranova, R. Rashkov, G. Avdeev, V. Tonchev, Electrodeposition of Ni-Cu alloys at high current densities: details of the elements distribution, J. Mater. Sci. 51 (2016) 8663-8673.

DOI: 10.1007/s10853-016-0126-y

[14] M. Haciismailoglu, M. Alper, Effect of electrolyte pH and Cu concentration on microstructure of electrodeposited Ni-Cu alloy films, Surf. Coat. Technol. 206 (2011) 1430-1438.

DOI: 10.1016/j.surfcoat.2011.09.010

[15] J.M. Lee, S.H. Lee, J.S. Ko, Influence of open area ratio on microstructure shape in Cu-Ni alloy electrodeposition, Appl. Phys. A 118 (2015) 579-585.

DOI: 10.1007/s00339-014-8759-7

[16] D.J. Arrowsmith, Adhesion of electroformed copper and nickel to plastic laminates, Trans. Inst. Metal Finish., 48 (1970) 88-92.

DOI: 10.1080/00202967.1970.11870136

[17] D. Goranova, G. Avdeev, R. Rashkov, Electrodeposition and characterization of Ni-Cu alloys, Surf. Coat. Technol. 240 (2014) 204-210.

DOI: 10.1016/j.surfcoat.2013.12.014

[18] J.M. Lee, J.S. Ko, Cu–Ni alloy electrodeposition on microstructured surfaces, J. Mater. Sci. 50 (2015) 393-402.

DOI: 10.1007/s10853-014-8598-0
