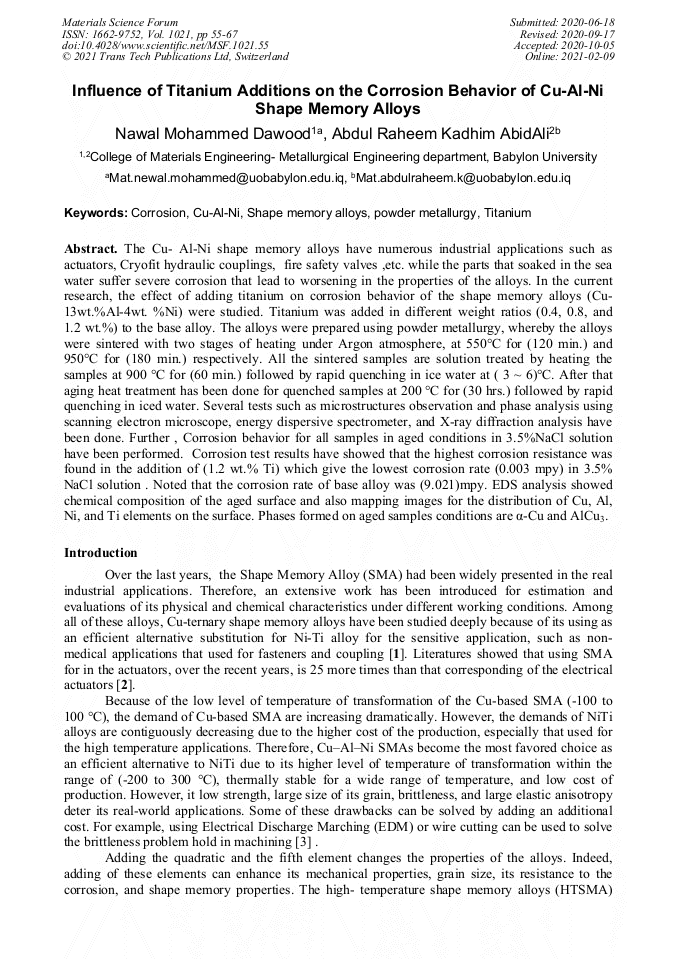

Influence of Titanium Additions on the Corrosion Behavior of Cu-Al-Ni Shape Memory Alloys

Abstract:

The Cu- Al-Ni shape memory alloys have numerous industrial applications such as actuators, Cryofit hydraulic couplings, fire safety valves ,etc. while the parts that soaked in the sea water suffer severe corrosion that lead to worsening in the properties of the alloys. In the current research, the effect of adding titanium on corrosion behavior of the shape memory alloys (Cu-13wt. %Al-4wt. %Ni) were studied. Titanium was added in different weight ratios (0.4, 0.8, and 1.2 wt.%) to the base alloy. The alloys were prepared using powder metallurgy, whereby the alloys were sintered with two stages of heating under Argon atmosphere, at 550°C for (120 min.) and 950°C for (180 min.)respectively. All the sintered samples are solution treated by heating the samples at 900 °C for (60 min.) followed by rapid quenching in ice water at ( 3 ~ 6) °C. After that aging heat treatment has been done for quenched samples at 200 °C for (30 hrs.) followed by rapid quenching in iced water. Several tests such as microstructures observation and phase analysis using scanning electron microscope, energy dispersive spectrometer, and X-ray diffraction analysis have been done. Further , Corrosion behavior for all samples in aged conditions in 3.5%NaCl solution have been performed. Corrosion test results have showed that the highest corrosion resistance was found in the addition of (1.2 wt.% Ti) which give the lowest corrosion rate (0.003 mpy) in 3.5% NaCl solution . Noted that the corrosion rate of base alloy was (9.021)mpy. EDS analysis showed chemical composition of the aged surface and also mapping images for the distribution of Cu, Al, Ni, and Ti elements on the surface. Phases formed on aged samples conditions are α-Cu and AlCu3.

• Periodical: Materials Science Forum (Volume 1021)
• Pages: 55-67
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.1021.55
• Online since: February 2021
• Authors: Nawal Mohammed Dawood*, Abdul Raheem Abid Ali
• Keywords: Corrosion, Cu-Al-Ni, Powder Metallurgy, Shape Memory Alloys, Titanium

References

[1] M.K. Abbass, M.M. Radhi, R.S.A. Adnan, The effect of Germanium addition on mechanical properties and microstructure of Cu-Al-Ni shape memory alloy, Materials Today: Materialstoday: proceedings 4 (2017) 224-233.

DOI: 10.1016/j.matpr.2017.01.016

[2] J.M. Jani, M. Leary, A. Subic, M.A. Gibson, A review of shape memory alloy research, applications and opportunities, Materials and Design 56 (2014) 1078-1113.

DOI: 10.1016/j.matdes.2013.11.084

[3] S.N. Saud, E. Hamzah, T. Abubakar, H.R. Bakhsheshi-Rad, Thermal aging behavior in Cu-Al-Ni-xCo shape memory alloys, J. Therm. Anal. Calorim. 119 (2015) 1273-1284.

DOI: 10.1007/s10973-014-4265-6

[4] S.N. Saud, E. Hamzah, T.A. Abubakara, R. Hosseinian, A review on influence of alloying elements on the microstructure and mechanical properties of Cu-Al-Ni shape memory alloys, J. Technologi.: Sci. Eng. 64 (2013) 51-56.

DOI: 10.11113/jt.v64.1338

[5] U. Sari., Influences of 2.5 wt% Mn addition on the microstructure and mechanical properties of Cu-Al-Ni shape memory alloys, Int. J. Miner. Metall. Mater. 17 (2010) 192-198.

DOI: 10.1007/s12613-010-0212-0

[6] S.N. Saud, E. Hamzaha, T. Abubakara, S. Farahany, Structure-property relationship of Cu-Al-Ni-Fe shape memory alloys in different quenching media, J. of Materi. Eng. and Perform. 23 (2014) 255-261.

DOI: 10.1007/s11665-013-0759-9

[7] S.N. Saud, E. Hamzah, T. Abubakar, M.K. Ibrahim, A. Bahador, Effect of a fourth alloying element on the microstructure and mechanical properties of Cu-Al-Ni shape memory alloys, J. Mater. Res. 30 (2015) 2258-2269.

DOI: 10.1557/jmr.2015.196

[8] V. Recarte, R.B. Pérez-Sáez, M.L. Nó, J.S. Juan, Evolution of martensitic transformation in Cu-Al-Ni shape memory alloys during low-temperature aging, J. Mater. Res. 14 (1999) 2806-2813.

DOI: 10.1557/jmr.1999.0375

[9] P. Rodriguez, G. Guenin, Thermal aging behavior and origin of a CuAlNi shape memory alloy, J. Mater. Sci. Eng.: A 129 (1990) 273-277.

[10] W.A. Badawy, M.M. El-Rabiee, N.H. Helal, H. Nady, Effect of nickel content on the electrochemical behavior of Cu-Al-Ni alloys in chloride free neutral solution, Electrochimica Acta 56 (2010) 913-918.

DOI: 10.1016/j.electacta.2010.09.080

[11] A.K. Abidali, Z.T.K. Al-Tai, Study the effect of silicon addition on the corrosion behavior and dry sliding wear of CuAlNi shape memory alloy, Iraqi J. Mech. Mater. Eng. 12 (2012) 172-185.

[12] R.Z. Alfay, A.M. Takhakh, A.K. Abidali, Effect of Nb Addition on hardness and wear resist of Cu-Al-Ni shape memory alloy fabricated by powder metallurgy, J. Eng. 20 (2014) 42-49.

DOI: 10.1109/beiac.2013.6560141

[13] S.N. Saud, E. Hamzah, H.R. Bakhsheshi-Rad, T. Abubakar, Effect of Ta additions on the microstructure, damping, and shape memory behavior of prealloyed Cu-Al-Ni shape memory alloys, Scanning 2017 (2017) 1789454.

DOI: 10.1155/2017/1789454

[14] C. Segui, E. Cesari, Effect of Mn on ageing of Cu-AI-Ni-Mn-B alloys, J. de Physique IV Colloque 5 (1995) C2-187- C2191.

DOI: 10.1051/jp4:1995229

[15] S.N.S. Al-Humairi, Cu-based shape memory alloys: modified structures and their related properties, book chapter in: Recent Advances in Engineering Materials and Metallurgy. Intech Open, 2019.

DOI: 10.5772/intechopen.86193

[16] C.A. Canbay, N. Unlu, I. Ozkul, T. Polata, M. Sekerci, K. Aldas, Investigation of Fe content in Cu-Al-Ni shape memory alloys, J. Phys. Metals Metallogr. 119 (2018) 536-541.

DOI: 10.1134/s0031918x18060030

[17] E.M. Mazzer, C.S. Kiminami, C. Bolfarini, R.D. Cava, W.J. Botta, P. Gargarella, F. Audebert, M. Galano, Phase transformation and shape memory effect of a Cu-Al-Ni-Mn-Nb high temperature shape memory alloy, J. Mater. Sci. Eng.: A. 663 (2016) 64-68.

DOI: 10.1016/j.msea.2016.03.017

[18] Z. Stošić, D. Manasijević, L. Balanović, T. Holjevac-Grgurić, U. Stamenković, M. Premović, D. Minić, M. Gorgievski, R. Todorović, Effects of composition and thermal treatment of Cu-Al-Zn alloys with low content of Al on their shape-memory properties, J. Mater. Res. 20 (2017) 1425-1431.

DOI: 10.1590/1980-5373-mr-2017-0153

[19] N.M. Dawood, A.K. Abidali, A.A. Atiyah, Fabrication of porous NiTi shape memory alloy objects by powder metallurgy for biomedical applications, IOP Conf. Ser.: Mater. Sci. Eng. 518 (2019) 032056.

DOI: 10.1088/1757-899x/518/3/032056

[20] R. Dasgupta, A look into Cu-based shape memory alloys: present scenario and future propose, J. Mater. Res. 29 (2014) 1681-1698.

DOI: 10.1557/jmr.2014.189

[21] M.Benke, V.Mertinger, E.Nagy, Jan Van Humbeeck, Investigation of Ageing Phenomena in CuAlNi Based Shape Memory Alloys, Materials Science Forum Vols 537-538 (2007) pp.129-136.

DOI: 10.4028/www.scientific.net/msf.537-538.129

[22] J.R. Davis, ASM Specialty Handbook: Copper and copper alloys, ASM International, Ohio, (2001).

[23] S.N. Saud, E. Hamzah, T. Abubakar, H. Bakhsheshi-Rad, Microstructure and corrosion behavior of Cu-Al-Ni shape memory alloys with Ag nano particles, Materials and Corrosion 66 (2014) 527-534.

DOI: 10.1002/maco.201407658

[24] Annual Book of ASTM standards, Wear and erosion, Metal corrosion, American Society for Testing and Materials, Vol. 03. 02, G5 -87, (1988).

[25] Y. Aydogdu, A. Aydogdu, O. Adiguzel, Self-accommodating martensite plate variants in shape memory CuAlNi alloys, J. Mater. Proces. Techno. 123 (2002) 498-500.

DOI: 10.1016/s0924-0136(02)00140-1

[26] S. Montecinos and S. Simison, Corrosion behavior of Cu- Al-Be shape memory alloys with different compositions and microstructures, Corrosion Science 74 (2013) 387-395.

DOI: 10.1016/j.corsci.2013.05.012

[27] Booth-Morrison C., Noebe R., Seidman D.N., Effects of a tantalum addition on the morphological and compositional evolution of a model Ni-Al-Cr superalloy. Proceedings of the International Symposium on Superalloys. 2008, 73-79.

DOI: 10.7449/2008/superalloys_2008_73_79

[28] V. Sampath, Studies on the effect of grain refinement and thermal processing on shape memory characteristics of Cu-Al-Ni alloys, Smart Mater. Struct. 14 (2005) S253-S260.

DOI: 10.1088/0964-1726/14/5/013

[29] F.C. Lovey, E. Cesari, On the microstructural characteristics of non-equilibrium 𝛾 precipitates in Cu-Zn-Al alloys, J. Mate. Sci. Eng. A. 129 (1990) 127-133.

DOI: 10.1016/0921-5093(90)90351-3

[30] B. Chen, C. Liang, D. Fu, D. Ren, Corrosion behavior of Cu and the Cu-Zn-Al shape memory alloy in simulated uterine fluid, Contraception 72 (2005) 221-224.

DOI: 10.1016/j.contraception.2005.04.006

[31] A.A. Atiyah, A.K. Abidali, N.M. Dawood, Characterization of NiTi and NiTiCu porous shape memory alloys prepared by powder metallurgy (Part I), Arab J. Sci. Eng. 40 (2015) 901-913.

DOI: 10.1007/s13369-014-1538-0

[32] A.W. Rajih, N.M. Dawood, F.S. Rasheed, Corrosion protection of 316L stainless steel by HA coating via pulsed laser deposition technique, J. Eng. Appl. Sci. 13 (2018) 10221-10231.
