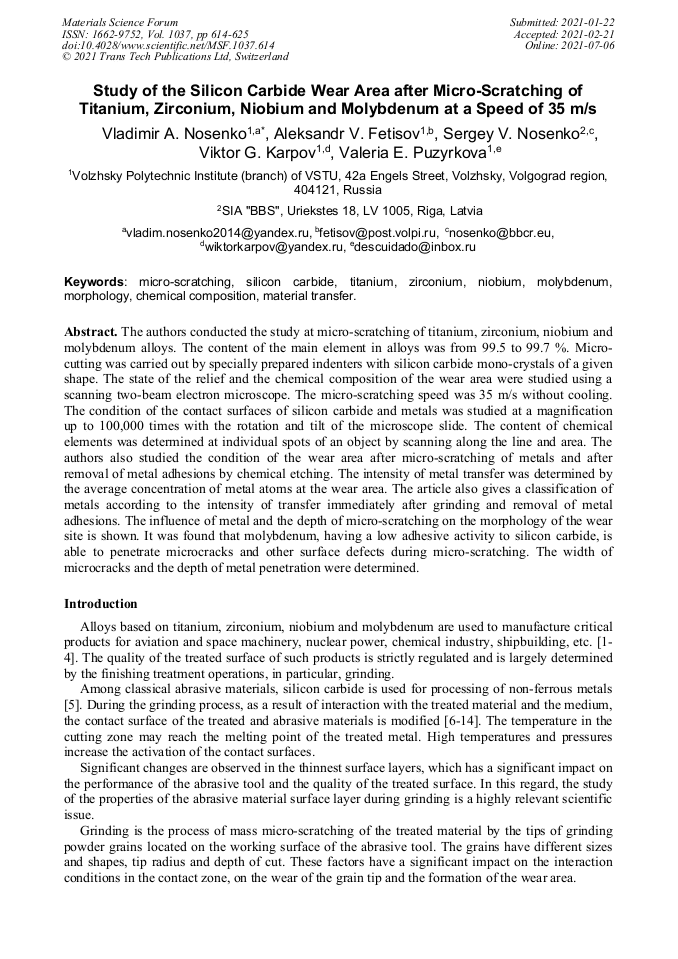

Study of the Silicon Carbide Wear Area after Micro-Scratching of Titanium, Zirconium, Niobium and Molybdenum at a Speed of 35 m/s

Abstract:

The authors conducted the study at micro-scratching of titanium, zirconium, niobium and molybdenum alloys. The content of the main element in alloys was from 99.5 to 99.7 %. Micro-cutting was carried out by specially prepared indenters with silicon carbide mono-crystals of a given shape. The state of the relief and the chemical composition of the wear area were studied using a scanning two-beam electron microscope. The micro-scratching speed was 35 m/s without cooling. The condition of the contact surfaces of silicon carbide and metals was studied at a magnification up to 100,000 times with the rotation and tilt of the microscope slide. The content of chemical elements was determined at individual spots of an object by scanning along the line and area. The authors also studied the condition of the wear area after micro-scratching of metals and after removal of metal adhesions by chemical etching. The intensity of metal transfer was determined by the average concentration of metal atoms at the wear area. The article also gives a classification of metals according to the intensity of transfer immediately after grinding and removal of metal adhesions. The influence of metal and the depth of micro-scratching on the morphology of the wear site is shown. It was found that molybdenum, having a low adhesive activity to silicon carbide, is able to penetrate microcracks and other surface defects during micro-scratching. The width of microcracks and the depth of metal penetration were determined

• Periodical: Materials Science Forum (Volume 1037)
• Pages: 614-625
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.1037.614
• Online since: July 2021
• Authors: Vladimir A. Nosenko*, Aleksandr V. Fetisov, Sergey V. Nosenko, Viktor G. Karpov, Valeria E. Puzyrkova
• Keywords: Chemical Composition, Material Transfer, Micro-Scratching, Molybdenum, Morphology, Niobium, Silicon Carbide, Titanium, Zirconium

References

[1] Caron P. French Research and Development Activities on High-Performance Superalloys for Gas Turbine Components. Materials Science Forum. V. 546-549 (2007) 1179–1186. https://doi.org/10.4028/www. scientific.net / msf.546-549.1179.

DOI: 10.4028/www.scientific.net/msf.546-549.1179

[2] O.S. Kashapov, A.V. Novak, N.A. Nochovnaya, T.V. Pavlova. Sostoyanie problemy i perspektivy sozdaniya zharoprochnyh titanovyh splavov dlya detalej GTD. Trudy VIAM. №3 (2013) 8 р.

[3] L.M. Poltorackii, A.B. Iur'ev, O.D. Sidorova, V.E. Gromov. Metody issledovaniia mikrostruktury i mekkhanicheskikkh svoistv metallov i splavov. Novokuzneck. SibGIU publ. (2008). 162 p.

[4] Spravochnik tekhnologa. Pod obshchej red. A.G. Suslova. M. Innovacionnoe mashinostroenie (2019) 800 s. ISBN 978-5-907104-23-5.

[5] Z. Liao, A. Abdelhafeez, H. Li, Y. Yang, O. G. Diaz, D. Axinte. State-of-the-art of surface integrity in machining of metal matrix composites. International Journal of Machine Tools and Manufacture. 143(2019) 63-91. https://doi.org/10.1016/j.ijmachtools.2019.05.006.

DOI: 10.1016/j.ijmachtools.2019.05.006

[6] V.A. Nosenko, S.V. Nosenko. Mathematical Models of Operating Time and Cutting Capacity for Various Stages of Flat Creep Feed Grinding of Horizontal Surface by Circle of Direct Profile. Journal of Machinery Manufacture and Reliability. 39(4) (2010) 380-385.

DOI: 10.3103/s1052618810040138

[7] S.V. Nosenko, V.A. Nosenko, A.A. Bairamov. Factors affecting the surface roughness in the deep grinding of titanium alloys. Russian Engineering Research. 35(7). (2015) 549-553.

DOI: 10.3103/s1068798x15070151

[8] V.A. Nosenko, A.V. Fetisov, S.P. Kuznetsov. Morphology and chemical composition of the titanium alloy surface at the initial stage of grinding with a cubic boron nitride wheel. Obrabotka metallov (tekhnologiya, oborudovanie, instrumenty) = Metal Working and Material Science. Vol. 22. no. 2 (2020) 30–40.

DOI: 10.35211/1990-5297-2020-3-238-42-45

[9] V.A. Nosenko, A.A. Kruticova. Improving abrasive tool cutting properties with the use of impregnators that emit chemically active gas media during thermal decomposition. Materials Today: Proceedings. 19. Part 5 (2019) 2041-2045. – doi: https://doi.org/10.1016/j.matpr.2019.07.070.

DOI: 10.1016/j.matpr.2019.07.070

[10] V.A. Nosenko, A.V. Fetisov, V.Y. Puzyrkova. Morphology and Chemical Composition of Silicon Carbide Surfaces Interacting with Iron, Cobalt, and Nickel in Microscratching. Solid State Phenomena. 284 (2018) 363-368.–.

DOI: 10.4028/www.scientific.net/ssp.284.363

[11] S.V. Nosenko, V.A. Nosenko, A.A. Koryazhkin. The Effect of the Operating Speed and Wheel Characteristics on the Surface Quality at Creep-Feed Grinding Titanium Alloys. Solid State Phenomena. 284 (2018) 369-374. –.

DOI: 10.4028/www.scientific.net/ssp.284.369

[12] D.T. Curtis, S.L. Soo, D.K. Aspinwall, Andrew Mantle. Evaluation of Workpiece Surface Integrity Following Point Grinding of Advanced Titanium and Nickel Based Alloys. Procedia CIRP. 45 (2016) 47-50.

DOI: 10.1016/j.procir.2016.02.343

[13] V.A. Nosenko, A.V. Fetisov, S.P. Kuznesov. Transfer of Cubic Boron Nitride Grinding Wheel Wear Products to the Nickel Alloy Surface. MATEC Web of Conferences. 329. 03050 (2020) 8 P. – DOI: https://doi.org/10.1051/matecconf/202032903050.

DOI: 10.1051/matecconf/202032903050

[14] L Rypina, D. Lipinski, B. Balasz, W. Kacalak, T. Szatkiewicz. Analysis and Modeling of the Micro-Cutting Process of Ti-6Al-4V Titanium Alloy with Single Abrasive Grain. Materials. 13(24):5835 (2020) 18 P. DOI: https://doi.org/10.3390/ma13245835.

DOI: 10.3390/ma13245835

[15] F. Ducobu, P.J., Arrazola, E. Riviere-Lorphevre, E. Filippi. On the selection of an empirical material constitutive model for the finite element modeling of Ti6Al4V orthogonal cutting, including the segmented chip formation. International Journal of Material Forming. Original Research. Springer Professional. 29.01. (2020).DOI: https://doi.org/10.1007/s12289-020-01535-2.

DOI: 10.1007/s12289-020-01535-2

[16] I.V. Antonets, L.N. Kotov, V.G. Shavrov, V.I. Shcheglov. Conducting and reflecting properties of nanometer-width films of various metals. Tribology International. 18, Issue 4 (1985) 237-245.

DOI: 10.1134/s1064226906120096

[17] Z. Tao, Y. Shi, L. Sampsa, J. Zhou. Investigation of the effect of grinding parameters on surface quality in grinding of TC4 titanium alloy. Procedia Manufacturing. 11 (2017) 2131–2138. –.

DOI: 10.1016/j.promfg.2017.07.344

[18] X. Xi, T. Yu, W. Ding, J. Xu. Grinding of Ti2AlNb intermetallics using silicon carbide and alumina abrasive wheels: tool surface topology effect on grinding force and ground surface quality. Precision Engineering. 53. (2018) 134–145. –.

DOI: 10.1016/j.precisioneng.2018.03.007

[19] A. Mello, R.B. de Silva, A.R. Machado, R.V. Gelamo, A.E. Diniz, R.F.M. de Oliveira. Surface grinding of Ti-6Al-4V Surface grinding of Ti-6Al-4V alloy with SiC abrasive wheel at various cutting conditions. Procedia Manufacturing. 10 (2017) 590–600. –.

DOI: 10.1016/j.promfg.2017.07.057

[20] V.A. Nosenko. Interaction intensity criterion for machined and abrasive materials in grinding. Problems of mechanical engineering and machine reliability. 5 (2001) 85-91.

[21] V.A. Nosenko. On contact interaction intensity of d-transition metals with silicon carbide in grinding. Problems of mechanical engineering and machine reliability. 5 (2002) 78-84.

[22] G.V. Samsonov, I.F. Pryadko, L.F. Pryadko, Elektronnaya lokalizaciya v tvyordom tele [Electronic localization in a solid]. Moskva. Nauka (1976) 339 p.
