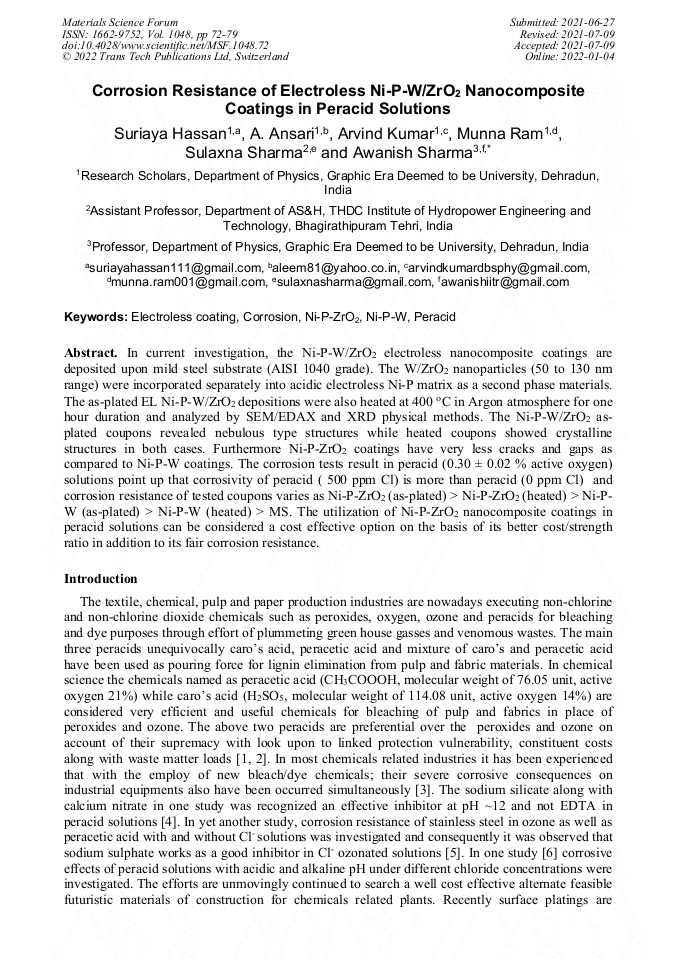

Corrosion Resistance of Electroless Ni-P-W/ZrO₂ Nanocomposite Coatings in Peracid Solutions

Abstract:

In current investigation, the Ni-P-W/ZrO₂ electroless nanocomposite coatings are deposited upon mild steel substrate (AISI 1040 grade). The W/ZrO₂ nanoparticles (50 to 130 nm range) were incorporated separately into acidic electroless Ni-P matrix as a second phase materials. The as-plated EL Ni-P-W/ZrO₂ depositions were also heated at 400 ^οC in Argon atmosphere for one hour duration and analyzed by SEM/EDAX and XRD physical methods. The Ni-P-W/ZrO₂ as-plated coupons revealed nebulous type structures while heated coupons showed crystalline structures in both cases. Furthermore Ni-P-ZrO₂ coatings have very less cracks and gaps as compared to Ni-P-W coatings. The corrosion tests result in peracid (0.30 ± 0.02 % active oxygen) solutions point up that corrosivity of peracid ( 500 ppm Cl) is more than peracid (0 ppm Cl) and corrosion resistance of tested coupons varies as Ni-P-ZrO₂ (as-plated) > Ni-P-ZrO₂ (heated) > Ni-P-W (as-plated) > Ni-P-W (heated) > MS. The utilization of Ni-P-ZrO₂ nanocomposite coatings in peracid solutions can be considered a cost effective option on the basis of its better cost/strength ratio in addition to its fair corrosion resistance.

• Periodical: Materials Science Forum (Volume 1048)
• Pages: 72-79
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.1048.72
• Online since: January 2022
• Authors: Suriaya Hassan, Abdul Ansari, Arvind Kumar, Munna Ram, Sulaxna Sharma, Awanish Sharma*
• Keywords: Corrosion, Electroless Coating, Ni-P-W, Ni-P-ZrO₂, Peracid

References

[1] B. Amini,J. Webster, On-site peracids: Tools For Bleaching Strategies to meet the Cluster Rule, and considerations on how to select among them, Proc. Tappi Intl. Pulping Conf., Atlanta, p.371 (1994).

[2] N. Liebergott, Peracid Delignification and Bleaching, Proc. Tappi Intl. Pulping Conf., Atlanta, p.357 (1994).

[3] O.A. Varjonen, T.J. Hakkarainen, Corrosion of titanium in alkaline hydrogen peroxide bleaching solution, Tappi J. 78 (6) (1995)161.

[4] W.E. Wyllie II, B.E. Brown, D.J. Duquette, The corrosion behavior of titanium (grade 2) in alkaline peroxide bleach liquors, Tappi J. 78(6) (1995)151.

[5] A. Pehkonen, T. Salo, J. Aromaa, O. Forsen, Corrosion of stainless steels in ozone and peracetic acid bleaching, Pulp & Paper Canada 101(4) (2000) T104.

[6] A. Sharma, Corrosion Investigations in Pulping and Bleaching media, Ph. D. Thesis, Indian Institute of Technology Roorkee, (2006).

[7] R.C. Agarwala, V. Agarwala, R. Sharma, Electroless Ni-P Based Nanocoating Technology—A Review, Synth. React. Inorg., Met.-Org., Nano-Met. Chem., 36(6) (2006) 493-515.

DOI: 10.1080/15533170600596030

[8] J. Sudagar, J. Lian, W. Sha, Electroless nickel, alloy, composite and nano coatings–A critical review, J. Alloy. Compd. 571(2013)183-204.

DOI: 10.1016/j.jallcom.2013.03.107

[9] Y.S. Huang, X.T. Zeng, X.F. Hu, F.M. Liu, Corrosion resistance properties of electroless nickel composite coatings, Electrochem. Acta., 49(2004) 4313–4319.

DOI: 10.1016/j.electacta.2004.04.023

[10] S.B Sharma, PhD Thesis. Synthesis and tribological characterization of Ni-P based electroless composite coatings. IIT Roorkee, India, (2002).

[11] S.B. Sharma, R.C. Agarwala, V. Agarwala, S. Ray, Application of Ni-P-ZrO2-Al2O3-Al3Zr Electroless Composite Coatings and their Characteristics, Int. J. Surf Eng., 18(05) (2002)344-349.

DOI: 10.1179/026708402225006312

[12] J.N. Balaraju K.S. Rajam, Electroless Deposition of Ni-Cu-P, Ni-W-P and Ni-W-Cu-P Alloys, J.  Surf. Coat. Technol., 195 (2005) 154–161.

DOI: 10.1016/j.surfcoat.2004.07.068

[13] D.W. Boudrand, Electroless plating, ASM Handbook, Surface Engg.,15(1994) 200-203, (1994).

[14] W. Wang, X. Jü, C. Xu, W. Zhang,N. Mitsuzaki, Z. Chen,Study on Electroless Plating Ni-W-P Ternary Alloy with High Tungsten from Compound Complexant Bath, J. Mater. Engg. Perform. 29 (2020) 8213–8220.

DOI: 10.1007/s11665-020-05312-9

[15] S. Sharma, S. Sharma, A. Sharma,V. Agarwala, Co-deposition of Synthesised ZnO Nano-particles into Ni-P Matrix using Electroless Technique and Their Corrosion Study, J. Mater. Engg. Perform. 25(10) (2016) 4383-4393.

DOI: 10.1007/s11665-016-2292-0

[16] Y.S. Huang, X.T. Zeng, X.F. Hu, F.M. Liu, Corrosion resistance properties of electroless nickel composite coatings, Electrochem. Acta., 49 (2004) 4313–4319.

DOI: 10.1016/j.electacta.2004.04.023
