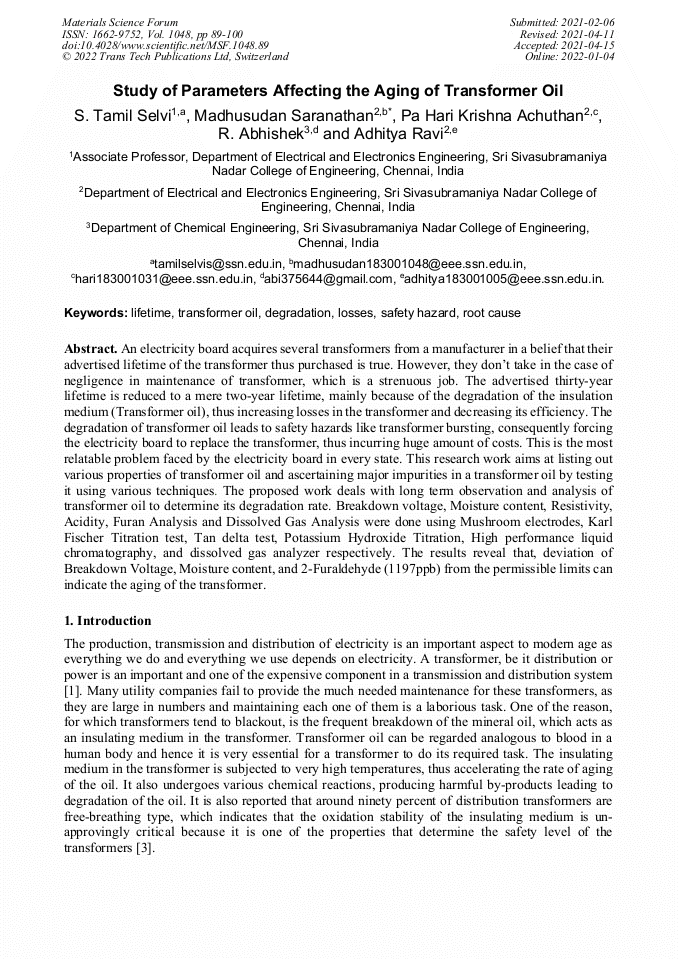

Study of Parameters Affecting the Aging of Transformer Oil

Abstract:

An electricity board acquires several transformers from a manufacturer in a belief that their advertised lifetime of the transformer thus purchased is true. However, they don’t take in the case of negligence in maintenance of transformer, which is a strenuous job. The advertised thirty-year lifetime is reduced to a mere two-year lifetime, mainly because of the degradation of the insulation medium (Transformer oil), thus increasing losses in the transformer and decreasing its efficiency. The degradation of transformer oil leads to safety hazards like transformer bursting, consequently forcing the electricity board to replace the transformer, thus incurring huge amount of costs. This is the most relatable problem faced by the electricity board in every state. This research work aims at listing out various properties of transformer oil and ascertaining major impurities in a transformer oil by testing it using various techniques. The proposed work deals with long term observation and analysis of transformer oil to determine its degradation rate. Breakdown voltage, Moisture content, Resistivity, Acidity, Furan Analysis and Dissolved Gas Analysis were done using Mushroom electrodes, Karl Fischer Titration test, Tan delta test, Potassium Hydroxide Titration, High performance liquid chromatography, and dissolved gas analyzer respectively. The results reveal that, deviation of Breakdown Voltage, Moisture content, and 2-Furaldehyde (1197ppb) from the permissible limits can indicate the aging of the transformer.

• Periodical: Materials Science Forum (Volume 1048)
• Pages: 89-100
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.1048.89
• Online since: January 2022
• Authors: S. Tamil Selvi, Madhusudan Saranathan*, Pa Hari Krishna Achuthan, R. Abhishek, Adhitya Ravi
• Keywords: Degradation, Lifetime, Losses, Root Cause, Safety Hazard, Transformer Oil

References

[1] Kelvinkumar Kalariya, Hardik kannad, Dipesh, Pallav Gandhi, A Review on Ageing of power transformer and insulation life assessment, Advanced Research in Electric and Electronic Engineering.

[2] Mohammad R. Meshkatoddini, American J. of Engineering and applied Sciences 1 (4): 384-388, (2008).

[3] Feipeng Wang, Kaizheng Wang, Jian Li, Qiuhuang Han, Qi Zhao, Kelin Hu, Synthesis of trimethylolpropane esters as potential insulating oil base stocks, IEEE 20th International Conference on Dielectric liquids, Roma, Italy, (2019).

DOI: 10.1109/icdl.2019.8796514

[4] Kamal Miners, Particles and Moisture effect on dielectric strength of transformer oil using VDE electrodes, IEEE Transactions on Power Apparatus and Systems, Vol. PAS-101, No. 3 March (1982).

DOI: 10.1109/tpas.1982.317291

[5] Charishma Almeida, Sohan Paul, Lazarus Godson Asirvatham, Stephen Manova, Rajesh Nimmagadda, Jefferson Raja Bose, SomchaiWongwises, " Experimental Studies on Thermophysical and Electrical properties of Graphene – Transformer Oil Nanofluid, Fluids 2020, MDPI.

DOI: 10.3390/fluids5040172

[6] Pugazhendhi Sugumaran. C, Experimental Evaluation on Dielectric and Thermal Characteristics of Nano Filter Added Transformer oil,, 2012 International Conference on High Voltage Engineering and Application, Shangai, China.

DOI: 10.1109/ichve.2012.6357077

[7] Saleh Forouhari, Remnant Life Estimation of Power Transformer based on IFT and Acidity Number of Transformer oil,, IEEE 11th International Conference on the properties and Applications of Dielectric materials, (2015).

DOI: 10.1109/icpadm.2015.7295331

[8] IS 13567 : 1992, Indian Standard, Determination of water in insulating liquids and in oil impregnated paper and pressboard by automatic coulometric Karl Fischer Titration – Method of test,.

DOI: 10.3403/01317331

[9] R Siva Sai et al, Degradation studies of electrical, physical, and chemical properties of aged transformer oil,, 2020 J. Phys.: Conf. Ser. 1706 012056.

DOI: 10.1088/1742-6596/1706/1/012056

[10] Jaspreet Singh Maan, Sanjeev Singh, Transformer Failure Analysis: Reasons and methods,, International Journal of Engineering Research and Technology, 2016, ISSN:2278-0181.

[11] M Gunasekaran, Specialized Polymer Concrete Composite Material for in-situ cleansing/improvement of Transformer oil,, CIRED2001, 18-21 June 2001, Conference Publication No. 482.

DOI: 10.1049/cp:20010692

[12] Hui Li et al., Development staus and application polymer concrete,, International forum on Energy, Environment and sustainable development (2016).

[13] Dissolved gas analysis and supervision of oil condition in transformers and reactors by Transformers Diagnostic Services at ABB.

[14] A guide to Transformer oil analysis by I.A.R. Gray ,Transformer Chemistry Services.

[15] Masanori Kohtoh et al., Aging Effect on Electrical Characteristics of Insulating Oil in Field Transformer,, IEEE Transactions on Dielectrics and Electrical Insulation Vol. 16, No. 6; December (2009).

DOI: 10.1109/tdei.2009.5361592

[16] Sotirios Missas, Michael G. Danikas, Ioannis Liapis, Factors Affecting the Ageing of Transformer Oil in 150 / 20 kV Transformers,, 2011 IEEE International Conference on Dielectric Liquids.

DOI: 10.1109/icdl.2011.6015409
