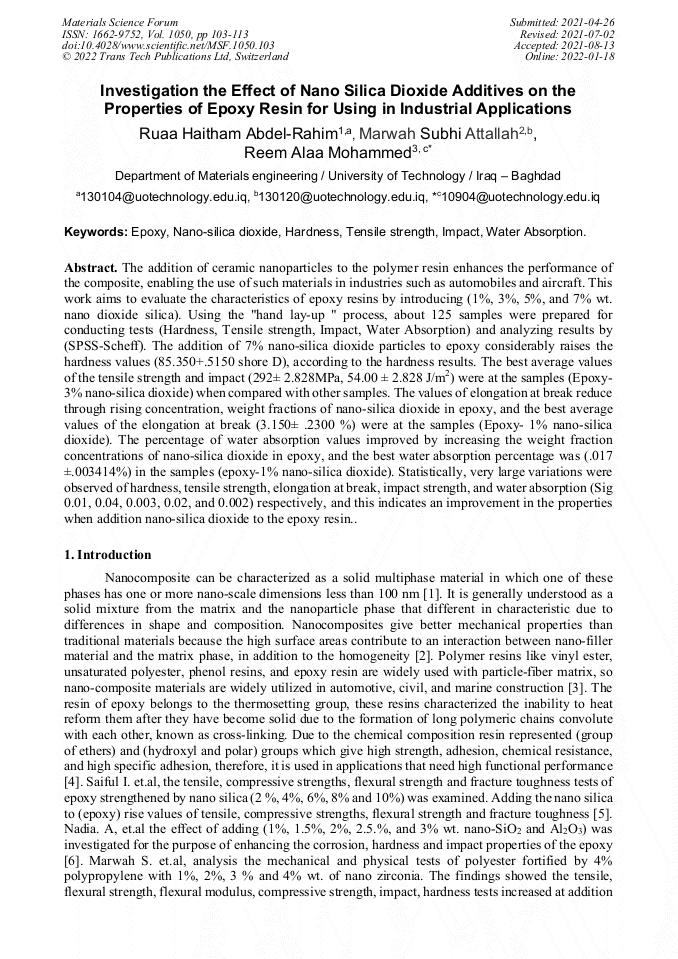

Investigation the Effect of Nano Silica Dioxide Additives on the Properties of Epoxy Resin for Using in Industrial Applications

Abstract:

The addition of ceramic nanoparticles to the polymer resin enhances the performance of the composite, enabling the use of such materials in industries such as automobiles and aircraft. This work aims to evaluate the characteristics of epoxy resins by introducing (1%, 3%, 5%, and 7% wt. nano dioxide silica). Using the "hand lay-up " process, about 125 samples were prepared for conducting tests (Hardness, Tensile strength, Impact, Water Absorption) and analyzing results by (SPSS-Scheff). The addition of 7% nano-silica dioxide particles to epoxy considerably raises the hardness values (85.350+.5150 shore D), according to the hardness results. The best average values of the tensile strength and impact (292± 2.828MPa, 54.00 ± 2.828 J/m²) were at the samples (Epoxy- 3% nano-silica dioxide) when compared with other samples. The values of elongation at break reduce through rising concentration, weight fractions of nano-silica dioxide in epoxy, and the best average values of the elongation at break (3.150± .2300 %) were at the samples (Epoxy- 1% nano-silica dioxide). The percentage of water absorption values improved by increasing the weight fraction concentrations of nano-silica dioxide in epoxy, and the best water absorption percentage was (.017 ±.003414%) in the samples (epoxy-1% nano-silica dioxide). Statistically, very large variations were observed of hardness, tensile strength, elongation at break, impact strength, and water absorption (Sig 0.01, 0.04, 0.003, 0.02, and 0.002) respectively, and this indicates an improvement in the properties when addition nano-silica dioxide to the epoxy resin

• Periodical: Materials Science Forum (Volume 1050)
• Pages: 103-113
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.1050.103
• Online since: January 2022
• Authors: Ruaa Haitham Abdel-Rahim, Marwah Subhi Attallah, Reem Alaa Mohammed*
• Keywords: Epoxy, Hardness, Impact, Nanooxide Silica, Tensile Strength, Water Absorption

References

[1] Y.,-Min, S., Hwangbo, T., Geol, Y., Ham, "Effect of Particle Size on the Mechanical Properties of TiO2–Epoxy Nanocomposites, Vol. 14, PP.1-12, (2021).

[2] E., Kaadhm, K., Salman, A., Reja, Investigating The Effect of Magnetite (Fe3O4) Nanoparticles on Mechanical Properties of Epoxy Resin,, Engineering and Technology Journal, Vol.39, No. 06, PP.986-995, (2021).

DOI: 10.30684/etj.v39i6.2063

[3] M. Subhi, R., Alaa, Flexural, compressive and thermal characterization of hybrid composite Materials,, AIP Publishing Conference Proceedings, Vol. 2123, PP. 020084-1–020084-12, (2019), https://doi.org/10.1063/1.5117011.

[4] A., Ali, Effect of Reinforcing by MgO Particles on Thermal and Mechanical Characteristics of Epoxy Resin,, the Iraqi Journal for Mechanical and Material Engineering, Vol.11, No.3, PP. 560-570, (2011).

[5] I., Saiful, M., Reza, R., Hossein, The Effect of Nanoparticles Percentage on Mechanical Behavior of Silica-Epoxy Nanocomposites,, Journal of Nanoscience, Vol.2013, Article ID 275037, PP 1-10, (2013).

[6] A., Nadia, M., Hussein, I., Jawad, Effect of Al2O3 and SiO2 Nanopartical on Wear, Hardness and Impact behavior of Epoxy composites,, Chemistry and Materials Research, Vol.7 No.4, PP. 34-39, (2015).

[7] R., Alaa, M. Subhi., Improving the Performance of Characteristics Unsaturated Polyester Polymer By Adding The Nano Zirconia with Polypropylene Fiber,, Solid State Technology, Vol.63, No.2, PP.1077-1095, (2020).

[8] R., Alaa, M. Subhi, Erosive Wear Behavior of Jute Fiber / Polyester resin with Biowaste Materials,, 3rd International Conference on Sustainable Engineering Techniques, IOP, Vol.88, No.012100, (2020),.

DOI: 10.1088/1757-899x/881/1/012100

[9] Annual Book of ASTM Standard, Standard Test Method for Plastics Properties- Durometer Hardness D 2240,, Vol. 09.01, (1988).

[10] Annual Book of ASTM Standard, Standard Test Method for Tensile Properties of Plastics,, D 638-03, PP.1-12, (2003).

[11] Annual Book of ASTM Standard Standard Test Method for Izod Impact (Unnotched) ASTM D4812, ISO180,, (2014).

[12] Annual Book of ASTM Standard, Standard Test Method for Water Absorption of Plastics ASTM D570 ,, PP. 570- 98, 08.01, (2005).

[13] A., Alhareb, Z., Ahmad, Impact strength, fracture toughness and hardness improvement of PMMA denture base through addition of nitrile rubber/ceramic fillers,, The Saudi Journal for Dental Research, Elsevier, Vol.8, PP. 26-34 , (2017).

DOI: 10.1016/j.sjdr.2016.04.004

[14] K., Sudheer, R., Venkateswara, G., Chakraverti, C., Shilpa, Tribological Properties of Epoxy/Al2O3 Nanocomposites,, International Journal of Engineering Trends and Technology, Vol.4, No. 5, (2013).

[15] R., Alaa, M. Subhi, Comparative Study of Mechanical Properties and Water Absorption of Hybrid Unsaturated Polyester Composite Reinforced by Cinnamon Sticks and Banana Peel Powder with Jute Fiber,, Journal of Mechanical Engineering Research and Developments, Coden: Jerdfo, Vol. 43, No.2, PP. 267-283, (2020).

[16] L.,Feihua, T., Huidong, W., Chuang, G., Zihao, L., Peng, P., Zongren, W., Qing, Synergetic enhancement of mechanical and electrical strength in epoxy/ silica nanocomposites via chemically-bonded interface,, Composites Science and Technology, Vol.167, PP. 539-546, (2018).

DOI: 10.1016/j.compscitech.2018.08.047

[17] L., Mitja, M., Branka,The Efects of Silica-Based Fillers on the Properties of Epoxy Molding Compounds,, Materials, Vol.12, No.1811, (2019),.

[18] S., Sarojini, A., Ram, B., Subhendu, C., Lokesh, Effects of Nano-silica/Nano- alumina on Mechanical and Physical Properties of Polyurethane Composites and Coatings, Transactions on Electrical and Electronic Materials, Vo. 14, No. 1, PP.1-8, (2013).

DOI: 10.4313/teem.2013.14.1.1

[19] R., Alaa, Tensile strength, impact strength and experimental analysis wear behavior of modified zinc nitrate filled polymer,, Materials Research Express, IOP Publishing, Vol.6, No. 125314, PP.1-10, (2019), https://doi.org/10.1088/2053-1591/ab5492.

DOI: 10.1088/2053-1591/ab5492

[20] K., Sudheer, R., Venkateswara, G., Chakraverti, C., Shilpa, Tribological Properties Of Epoxy/Al2O3Nanocomposites,, International Journal of Engineering Trends and Technology, Vol.4, No.5, (2013).

[21] K., Duraisamy, R., Sadayan, S., Dharmalingam, B., Govindarajan, Investigation of Mechanical Properties of Horn Powder-Filled Epoxy Composites,, Journal of Mechanical Engineering, Vol. 63, No. 2, PP. 138-147, (2017).

DOI: 10.5545/sv-jme.2016.3764

[22] H., Alamri, Effect of water absorption on the mechanical properties of nano-filler reinforced epoxy nanocomposites,, Materials and Design, Vol.42, PP. 214–222, (2012), http://dx.doi.org/10.1016/j.matdes.2012.05.060.

DOI: 10.1016/j.matdes.2012.05.060
