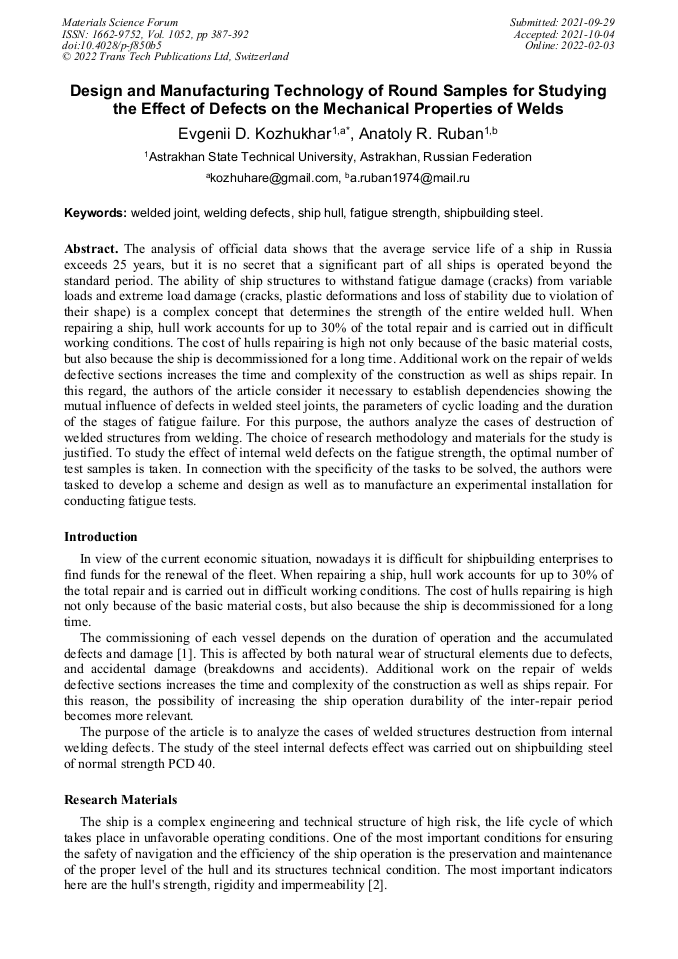

Design and Manufacturing Technology of Round Samples for Studying the Effect of Defects on the Mechanical Properties of Welds

Abstract:

The analysis of official data shows that the average service life of a ship in Russia exceeds 25 years, but it is no secret that a significant part of all ships is operated beyond the standard period. The ability of ship structures to withstand fatigue damage (cracks) from variable loads and extreme load damage (cracks, plastic deformations and loss of stability due to violation of their shape) is a complex concept that determines the strength of the entire welded hull. When repairing a ship, hull work accounts for up to 30% of the total repair and is carried out in difficult working conditions. The cost of hulls repairing is high not only because of the basic material costs, but also because the ship is decommissioned for a long time. Additional work on the repair of welds defective sections increases the time and complexity of the construction as well as ships repair. In this regard, the authors of the article consider it necessary to establish dependencies showing the mutual influence of defects in welded steel joints, the parameters of cyclic loading and the duration of the stages of fatigue failure. For this purpose, the authors analyze the cases of destruction of welded structures from welding. The choice of research methodology and materials for the study is justified. To study the effect of internal weld defects on the fatigue strength, the optimal number of test samples is taken. In connection with the specificity of the tasks to be solved, the authors were tasked to develop a scheme and design as well as to manufacture an experimental installation for conducting fatigue tests.

• Periodical: Materials Science Forum (Volume 1052)
• Pages: 387-392
• DOI: https://doi.org/10.4028/p-f850b5
• Online since: February 2022
• Authors: Evgenii D. Kozhukhar*, Anatoly R. Ruban
• Keywords: Fatigue Strength, Ship Hull, Shipbuilding Steel, Welded Joint, Welding Defects

References

[1] A.P. Anosov, Evaluation of the Ship Structures Resource in the Conditions of Cyclic Loading: Dis. Doctor of Tech. Sciences, DVSTU, Vladivostok, (2001).

[2] V.V. Novikov, G.P. Turmov, Operational Resource of the Vessel, Publishing House of the Far Eastern Federal, Vladivostok, (2013).

[3] I.F. Deyev, I.R. Patskevich, Welding Seams Defects, Nauk. dumka, Kiev, (1984).

[4] G.A. Belchuk, On the relations of metal deformation resistance indicators in welded joints, in: K.N. Shmargunov and A.F. Alabyshev (Eds), Welding Production, Works of Leningrad Polytechnic Institute, Leningrad, 1964, pp.25-30.

[5] B.F. Belyaev, Strength of welded joints with defects at low temperatures, in: A.B Berger (Eds.), Selection and Justification of Methods and Standards for Quality Control of Welded Joints, Leningr. house of science. tech. propaganda, Leningrad, 1976, pp.45-52.

[6] I.N. Birillo, Evaluation of the Strength Resource of Gas Pipes with Corrosion Damage, Tsentralitneftegaz, Moscow, (2008).

[7] V.V. Bolotin, Forecasting the Resource of Machines and Structures, Mashinostroenie, Moscow, (1984).

[8] S.D. Chizhiumov, A.D. Burmensky, Design of Ship Hull Structures, GOWPO KnAGTU,, Komsomolsk-on-Amur, (2006).

[9] Russian Maritime Register of Shipping. Rules for the Classification and Construction of Marine Vessels. Body, Vol. 2, FAU RMRS,, St. Petersburg, (2018).

[10] Russian Maritime Register of Shipping. Rules for the Classification and Construction of Marine Vessels. Welding, Vol. 14, FAU RMRS,, St. Petersburg, (2019).

[11] V.P. Kogaev, Calculations for Strength under Stress, Variable in Time, Mashinostroenie, Moscow, (1977).

[12] V.V. Korolyov, N.E. Zhadobin, Investigation of the deformation fields of ship hulls, Operation of Sea Transport. 53 (2008) 73-75.

[13] E.D. Kozhukhar, A.R. Ruban, Determination of welded joints strength with non-crack-like defects in steel hulls of ships, Business magazine Neftegaz.RU. 8 (2020) 15-17.

[14] GOST standard 5264-80 Manual Arc Welding. Welded Joints. The Basic Types, Structural Elements and Sizes.

[15] GOST standard 28841-90 Machines for Material Testing for Fatigue. General Technical Requirements.

[16] L.M. Shkolnik, Methodology of Fatigue Tests: A Reference Book, Metallurgiya, Moscow, (1978).

[17] A.R. Ruban, Improving of the Marine Planetary Gearboxes Processability during the Repair by Changing the Roughness Standards of the Transition Surfaces of the Cemented Wheels Teeth: Dis., Astrakhan State Technical University, Astrakhan, (2004).

[18] M.N. Stepnov, Statistical Methods of Analysis and Processing of Observations, Nauka, Moscow, (1968).

[19] GOST 25.502-79 Calculations and Strength Tests in Mechanic Engineering. Methods of Mechanical Testing of Metals. Methods of Fatigue Testing.

[20] A.R. Ruban, E.D. Kozhukhar, RU Utility Model Patent 201,820.
