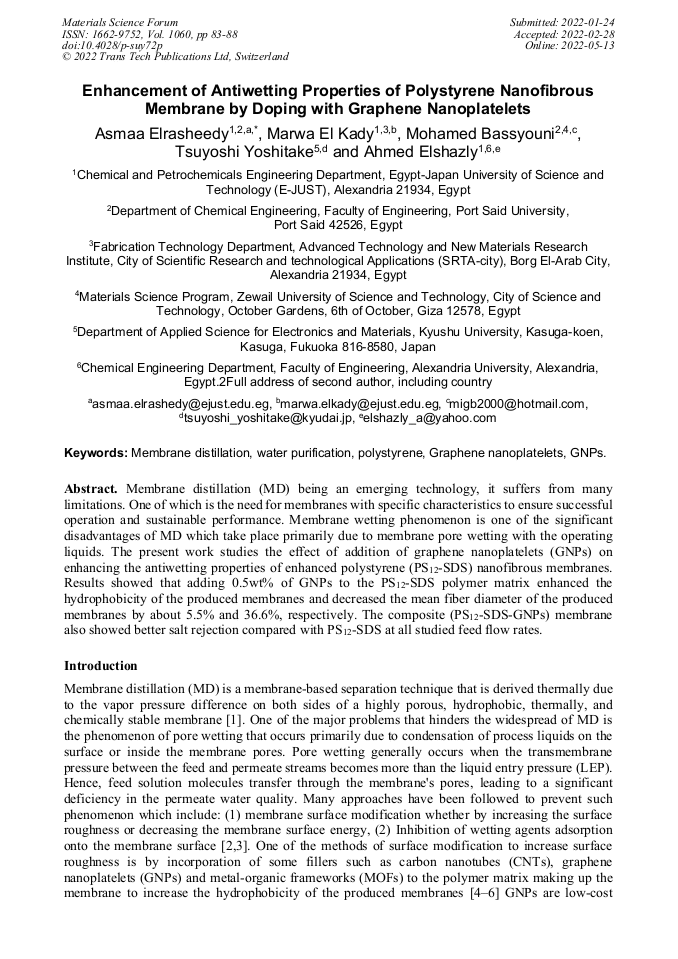

Enhancement of Antiwetting Properties of Polystyrene Nanofibrous Membrane by Doping with Graphene Nanoplatelets

Abstract:

Membrane distillation (MD) being an emerging technology, it suffers from many limitations. One of which is the need for membranes with specific characteristics to ensure successful operation and sustainable performance. Membrane wetting phenomenon is one of the significant disadvantages of MD which take place primarily due to membrane pore wetting with the operating liquids. The present work studies the effect of addition of graphene nanoplatelets (GNPs) on enhancing the antiwetting properties of enhanced polystyrene (PS₁₂-SDS) nanofibrous membranes. Results showed that adding 0.5wt% of GNPs to the PS₁₂-SDS polymer matrix enhanced the hydrophobicity of the produced membranes and decreased the mean fiber diameter of the produced membranes by about 5.5% and 36.6%, respectively. The composite (PS₁₂-SDS-GNPs) membrane also showed better salt rejection compared with PS₁₂-SDS at all studied feed flow rates.

• Periodical: Materials Science Forum (Volume 1060)
• Pages: 83-88
• DOI: https://doi.org/10.4028/p-suy72p
• Online since: May 2022
• Authors: Asmaa Elrasheedy*, Marwa F. El Kady, Mohamed Bassyouni, Tsuyoshi Yoshitake, Ahmed Hassan El Shazly
• Keywords: GNPs, Graphene Nanoplatelets, Membrane Distillation, Polystyrene, Water Purification

References

[1] H. Ke et al., Electrospun polystyrene nanofibrous membranes for direct contact membrane distillation,, J. Memb. Sci., (2016).

[2] M. Rezaei, D. M. Warsinger, J. H. Lienhard V, M. C. Duke, T. Matsuura, and W. M. Samhaber, Wetting phenomena in membrane distillation: Mechanisms, reversal, and prevention,, Water Research. (2018).

DOI: 10.1016/j.watres.2018.03.058

[3] M. Gryta, Mitigation of membrane wetting by applying a low temperature membrane distillation,, Membranes (Basel)., vol. 10, no. 7, p.1–24, (2020).

DOI: 10.3390/membranes10070158

[4] M. S. Salem, A. H. El-Shazly, N. Nady, M. R. Elmarghany, and M. N. Sabry, PES/PVDF blend membrane and its composite with graphene nanoplates: Preparation, characterization, and water desalination via membrane distillation,, Desalin. Water Treat., vol. 166, p.9–23, (2019).

DOI: 10.5004/dwt.2019.24611

[5] A. Elrasheedy, M. Rabie, A. El-Shazly, M. Bassyouni, S. M. S. Abdel-Hamid, and M. F. El Kady, Numerical investigation of fabricated mwcnts/polystyrene nanofibrous membrane for dcmd,, Polymers (Basel)., vol. 13, no. 1, p.1–11, (2021).

DOI: 10.3390/polym13010160

[6] M. R. S. Kebria, A. Rahimpour, G. Bakeri, and R. Abedini, Experimental and theoretical investigation of thin ZIF-8/chitosan coated layer on air gap membrane distillation performance of PVDF membrane,, Desalination, (2019).

DOI: 10.1016/j.desal.2018.10.023

[7] K. Celebi et al., Ultimate permeation across atomically thin porous graphene,, Science (80-.)., vol. 344, no. 6181, p.289–292, (2014).

DOI: 10.1126/science.1249097

[8] P. Ding and B. Qu, Synthesis and characterization of polystyrene/layered double-hydroxide nanocomposites via in situ emulsion and suspension polymerization,, J. Appl. Polym. Sci., vol. 101, no. 6, p.3758–3766, (2006).

DOI: 10.1002/app.23447

[9] R. H. Bello, L. A. F. Coelho, and D. Becker, Role of chemical funcionalization of carbon nanoparticles in epoxy matrices,, J. Compos. Mater., vol. 52, no. 4, p.449–464, (2018).

DOI: 10.1177/0021998317709082

[10] M. M. Chamakh, D. Ponnamma, and M. A. A. Al-Maadeed, Vapor sensing performances of PVDF nanocomposites containing titanium dioxide nanotubes decorated multi-walled carbon nanotubes,, J. Mater. Sci. Mater. Electron., (2018).

DOI: 10.1007/s10854-017-8387-z

[11] C. Mit-Uppatham, M. Nithitanakul, and P. Supaphol, Ultrafine electrospun polyamide-6 fibers: Effect of solution conditions on morphology and average fiber diameter,, Macromol. Chem. Phys., vol. 205, no. 17, p.2327–2338, (2004).

DOI: 10.1002/macp.200400225

[12] M. Rabie et al., Thermal analysis of a hybrid high concentrator photovoltaic / membrane distillation system for isolated coastal regions Organic Rankine cycle,, Sol. Energy, vol. 215, no. December 2020, p.220–239, (2021).

DOI: 10.1016/j.solener.2020.12.029

[13] A. Elrasheedy, M. Rabie, A. Elshazly, M. Bassyouni, A. A. El-moneim, and M. El Kady, Investigation of Different Membrane Porosities on the Permeate Flux of Direct Contact Membrane Distillation,, vol. 889, no. c, p.85–90, (2021).

DOI: 10.4028/www.scientific.net/kem.889.85

[14] M. Rabie, M. S. Salem, A. Y. M. Ali, and A. H. El-shazly, ScienceDirect Modeling of an integrated air gap membrane distillation unit utilizing a flat plate solar collector,, Energy Reports, vol. 6, p.1591–1596, (2020).

DOI: 10.1016/j.egyr.2020.10.046
