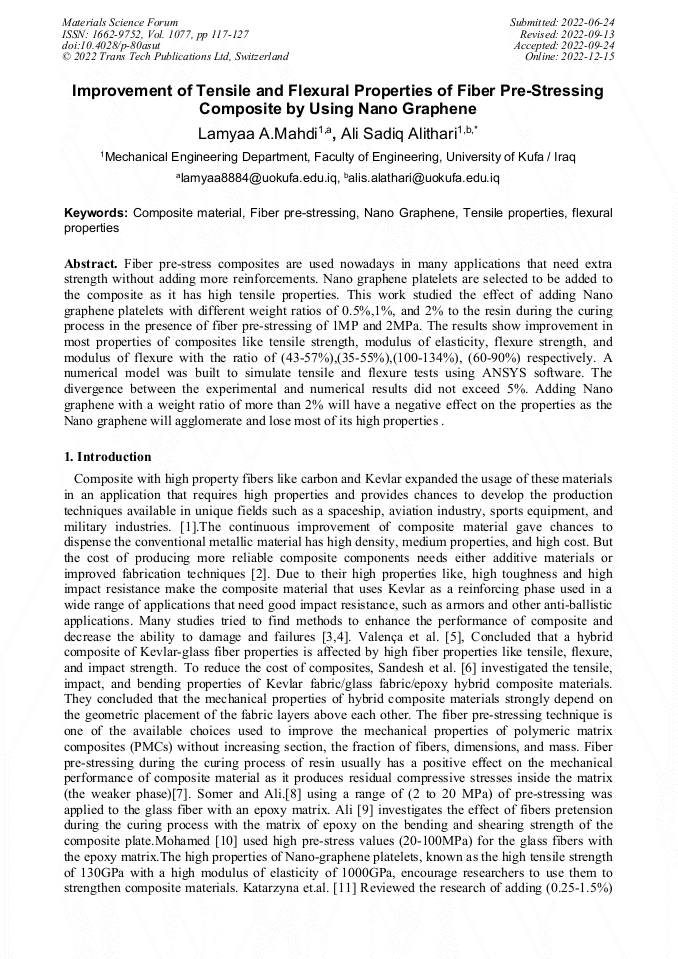

Improvement of Tensile and Flexural Properties of Fiber Pre-Stressing Composite by Using Nano Graphene

Abstract:

Fiber pre-stress composites are used nowadays in many applications that need extra strength without adding more reinforcements. Nano graphene platelets are selected to be added to the composite as it has high tensile properties. This work studied the effect of adding Nano graphene platelets with different weight ratios of 0.5%,1%, and 2% to the resin during the curing process in the presence of fiber pre-stressing of 1MP and 2MPa. The results show improvement in most properties of composites like tensile strength, modulus of elasticity, flexure strength, and modulus of flexure with the ratio of (43-57%),(35-55%),(100-134%), (60-90%) respectively. A numerical model was built to simulate tensile and flexure tests using ANSYS software. The divergence between the experimental and numerical results did not exceed 5%. Adding Nano graphene with a weight ratio of more than 2% will have a negative effect on the properties as the Nano graphene will agglomerate and lose most of its high properties that match with most literature reviewed.

• Periodical: Materials Science Forum (Volume 1077)
• Pages: 117-127
• DOI: https://doi.org/10.4028/p-80asut
• Online since: December 2022
• Authors: Lamyaa A. Madi, Ali Sadiq Alithari*
• Keywords: Composite Material, Fiber Pre-Stressing, Flexural Properties, Nanographene, Tensile Properties

References

[1] M. B. Ibrahim.,H.Y. Habib, and R.M. Jabrah, Preparation of Kevlar-49 Fabric/E-Glass Fabric/Epoxy Composite Materials and Characterization of Their Mechanical Properties,, Journal of Composite and Advanced Materials,Vol.30,No.3, (2020), pp.133-141, https://doi.org/10.18280/rcma.303-403.

DOI: 10.18280/rcma.303-403

[2] N.H. Mostafa. Z.N Ismarrubie, S.M Sapuan,and M.TH.Sultan,Fibre prestressed polymer-matrix composites: a review,, Journal of Composite Materials,0,(2016),(0),1–28,.

DOI: 10.1177/0021998316637906

[3] R. Oliwa, The Mechanical Properties of Kevlar Fabric/Epoxy Composites Containing Aluminosilicates Modified with Quaternary Ammonium and Phosphonium Salts,,materials, MDPI, Vol.13, 3726,(2020),.

DOI: 10.3390/ma13173726

[4] P.M. Gore and B.Kandasubramanian,Functionalized Aramid Fibers and Composites for Protective Applications: A Review,, Ind. Eng.Chem. Res.57, (2018), p.16537–16563.

DOI: 10.1021/acs.iecr.8b04903

[5] S.L. Valença, S.Griza, V.G.de Oliveira, E.M. Sussuchi,and F.G.de Cunha, Evaluation of the Mechanical Behavior of Epoxy Composite Reinforced with Kevlar Plain Fabric and Glass/Kevlar Hybrid Fabric Composite., Part B. Eng. (2015), 70, 1–8. (2015).

DOI: 10.1016/j.compositesb.2014.09.040

[6] K.J. Sandesh, , K.S. , Umashankar, B.J. Manujesh, C.K.hejesh, and N.M. Kumar,Mechanical characterisation of Kevlar/glass hybrid reinforced polymer composite laminates,, Int. Adv. Res. J. Sci. Eng. Technol., Vol. 3, issue 12, (2016), 90-97, https://doi.org/10.17148/IARJSET.2016.31218.

[7] N.H. Mostafa, Z.N. Ismarrubie, and S.M. Sapuan, The influence of equi-biaxially fabric prestressing on the flexural performance of woven E-glass/polyester-reinforced composites,, J. Compos Material,(2015), DOI: 10.1177/ 0021998315620478.

DOI: 10.1177/0021998315620478

[8] S. M.Nacy and A.S. Yaser, The Effect of Fibers Pre-stressing On Tensile Properties of Glass Fiber/Epoxy Composite materials,, 1st Scientific Conf. Tech. College-Najaf,(2008), pp.418-429.

[9] A.S. Yasir,The effect of fiber pre-stressing on the bending strength of composite materials,, 5TH INTERNATIONAL CONFERENCE ON ADVANCES IN MECHANICAL ENGINEERING ISTANBUL,(2019).

[10] M.Mohamed, M.Selim, H.Ning and S. Pillay, Effect of fiber pre-stressing on mechanical properties of glass fiber epoxy composites manufactured by vacuum-assisted resin transfer molding,, Journal of Reinforced Plastics and Composites, Vol. 39,(1–2), (2020),p.21–30,.

DOI: 10.1177/0731684419868841

[11] K. Kośla, M.Olejnik, and K.Olszewska, Preparation and properties of composite materials containing graphene structures and their applicability in personal protective equipment: A Review,, Rev. Adv. Mater. Sci.,vol 59, (2020), p.215–242, https://doi.org/10.1515/rams-2020-0025.

DOI: 10.1515/rams-2020-0025

[12] L.Ch. Tang, L. Zhao and Li. Zhi Guan, Graphene/Polymer Composite Materials: Processing, Properties and Applications,, Book of Advanced Composite Materials: Properties and Applications,(2017), https://doi.org/10.1515/9783110574432-007.

DOI: 10.1515/9783110574432-007

[13] Data sheet of Epoxy resin type (Renksan - Renfloor HT 2000)/ Turkey, (2021).

[14] Data sheet of Kevlar fabric from MB Fiberglass Company/ UK. (2020).

[15] Data sheet of Nano Graphene manufactured by skyspring Nano- materials /USA,(2020).

[16] D. A. Hawkins J r., A. Haque, Fracture toughness of carbon-graphene/epoxy hybrid Nano-composites,, 10th International Conference on Mechanical Engineering, ICME (2013), Procedia Engineering,90, 176 – 181,.

DOI: 10.1016/j.proeng.2014.11.833

[17] ASTM D3039-14, Standard Test Method for Tensile Properties of Polymer Matrix Composite Materials, (2014).

[18] ASTM D7264/D7264M-15, Standard Test Method for Flexural Properties of Polymer Matrix Composite Materials, (2015).
