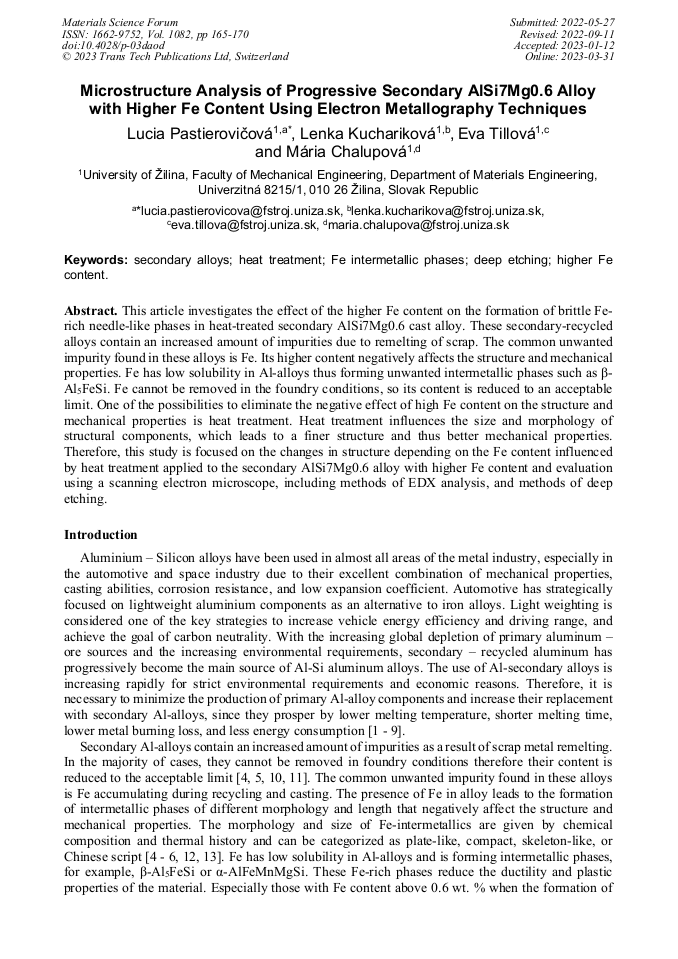

Microstructure Analysis of Progressive Secondary AlSi7Mg0.6 Alloy with Higher Fe Content Using Electron Metallography Techniques

Abstract:

This article investigates the effect of the higher Fe content on the formation of brittle Fe-rich needle-like phases in heat-treated secondary AlSi7Mg0.6 cast alloy. These secondary-recycled alloys contain an increased amount of impurities due to remelting of scrap. The common unwanted impurity found in these alloys is Fe. Its higher content negatively affects the structure and mechanical properties. Fe has low solubility in Al-alloys thus forming unwanted intermetallic phases such as β-Al₅FeSi. Fe cannot be removed in the foundry conditions, so its content is reduced to an acceptable limit. One of the possibilities to eliminate the negative effect of high Fe content on the structure and mechanical properties is heat treatment. Heat treatment influences the size and morphology of structural components, which leads to a finer structure and thus better mechanical properties. Therefore, this study is focused on the changes in structure depending on the Fe content influenced by heat treatment applied to the secondary AlSi7Mg0.6 alloy with higher Fe content and evaluation using a scanning electron microscope, including methods of EDX analysis, and methods of deep etching.

• Periodical: Materials Science Forum (Volume 1082)
• Pages: 165-170
• DOI: https://doi.org/10.4028/p-03daod
• Online since: March 2023
• Authors: Lucia Pastierovičová*, Lenka Kuchariková, Eva Tillová, Mária Chalupová
• Keywords: Deep Etching, Fe Intermetallic Phases, Heat Treatment, Higher Fe Content, Secondary Alloys

References

[1] B. Zhou, B. Liu, Sh. Zhang, R. Lin, Y. Jiang, X. Lan, Microstructure evolution of recycled 7075 aluminum alloy and its mechanical and corrosion properties, Journal of Alloys and Compounds 879 (2021) 160407.

DOI: 10.1016/j.jallcom.2021.160407

[2] L. Kuchariková, E. Tillová, O. Bokůvka, Recycling and properties of recycled aluminium alloys used in the transportation industry, Transport Problems 11 (2016) 117-122.

DOI: 10.20858/tp.2016.11.2.11

[3] C. Bulei, I. Kiss, V. Alexa, Development of metal matrix composites using recycled secondary raw materials from aluminium wastes, Materials Today: Proceedings, 45 (2021) 4143-4149.

DOI: 10.1016/j.matpr.2020.11.926

[4] J. Svobodova, M. Lunak, M. Lattner, Analysis of the Increased Iron Content on the Corrosion Resistance of the AlSi7Mg0.3 Alloy Casting, Manufacturing Technology, 19 (2019) 1041-1046.

DOI: 10.21062/ujep/415.2019/a/1213-2489/mt/19/6/1041

[5] A. Bjurenstedt, E. Ghassemali, S. Seifeddine, A. K. Dahle, The effect of Fe-rich intermetallics on crack initiation in cast aluminium: An in-situ tensile study, Materials Science and Engineering: A,756 (2019) 502-507.

DOI: 10.1016/j.msea.2018.07.044

[6] D. Stanić, V. Špada, D. Iljkić, Influence of natural aging on the mechanical properties of high pressure die casting (HPDC) EN AC 46000-AlSi9Cu3(Fe) Al alloy, Materials Testing, 61 (2019) 448-454.

DOI: 10.3139/120.111341

[7] D. Song, Y. Jia, Q. Li, Y. Zhao, W. Zhang, Effect of Initial Fe Content on Microstructure and Mechanical Properties of Recycled Al-7.0Si-Fe-Mn Alloys with Constant Mn/Fe Ratio, Materials. 15 (2022) 1618.

DOI: 10.3390/ma15041618

[8] C. Quintero, G. Ercolino, A. Poozhikunnath, R. Maric, S. Specchia, Analysis of heat and mass transfer limitations for the combustion of methane emissions on PdO/Co3O4 coated on ceramic open cell foams, Chemical Engineering Journal 405 (2021) 126970.

DOI: 10.1016/j.cej.2020.126970

[9] S. Dash, D. Li, X. Zeng, D. Li, D. Chen, Cyclic deformation behavior and fatigue life prediction of an automotive cast aluminum alloy: A new method of determining intrinsic fatigue toughness, Fatigue Fract Eng Mater Struct., 45 (2022) 725-738.

DOI: 10.1111/ffe.13629

[10] L. Kuchariková, D. Medvecká, E. Tillová, J. Belan, M. Kritikos, M. Chalupová, M. Uhríčik, The Effect of the β-Al5FeSi Phases on Microstructure, Mechanical and Fatigue Properties in A356.0 Cast Alloys with Higher Fe Content without Additional Alloying of Mn, Materials, 14 (2021) 1943.

DOI: 10.3390/ma14081943

[11] L. Kuchariková, E. Tillová, M. Chalupová, P. Hanusová, Investigation on microstructural and hardness evaluation in heat-treated and as-cast state of secondary AlSiMg cast alloys, Materials Today: Proceedings 32 (2020) 63-67.

DOI: 10.1016/j.matpr.2020.02.037

[12] J. Kasińska, D. Bolibruchová, M. Matejka, Marek, The Influence of Remelting on the Properties of AlSi9Cu3 Alloy with Higher Iron Content, Materials. 13 (2020) 575.

DOI: 10.3390/ma13030575

[13] L. Hurtalová, E. Tillová, M. Chalupová, Identification and Analysis of Intermetallic Phases in Age-Hardened Recycled AlSi9Cu3 Cast Alloy, Archive of Mechanical Engineering. LIX (2012) 385-396.

DOI: 10.2478/v10180-012-0020-3

[14] H. Yang, S. Ji, Z. Fan, Effect of heat treatment and Fe content on the microstructure and mechanical properties of die-cast Al–Si–Cu alloys, Materials & Design. 85 (2015) 823-832.

DOI: 10.1016/j.matdes.2015.07.074

[15] D. Závodská, E. Tillová, I. Švecová, M. Chalupová, L. Kuchariková, J. Belan, The Effect of Iron Content on Microstructure and Porosity of Secondary AlSi7Mg0.3 Cast Alloy. Period. Polytech. Transp. Eng., 47(4), (2019) 283-289.

DOI: 10.3311/pptr.12101

[16] J. Sena, et al, Influence of chemical composition and impurities on microstructure and formation of intermetallic phases in selected aluminum alloys. Proceedings 29th International Conference on Metallurgy and Materials (2020) 1174-1180.

DOI: 10.37904/metal.2020.3622

[17] E. Cerri, M.T. Di Giovanni, E. Ghio, A study of intermetallic phase stability in Al-Si-Mg casting alloy: the role of Cu additions. La metallurgia Italiana, light metals (2020) 37-47.

[18] J. Wiecheć, P. Uliasz, T. Knych, J. Tatarczuch, Research into the Impact of Magnesium Content in the AlSi7Mg Aluminum Cast Alloys on the Strength and Electrical Properties of the Material after Different Parameters of Heat Treatment Operations, Key Engineering Materials 641 (2015) 63–68

DOI: 10.4028/www.scientific.net/kem.641.63

[19] J. A. Taylor, Iron-Containing Intermetallic Phases in a Al-Si Based Casting Alloys, Procedia Materials Science 1 (2012) 19-33.

DOI: 10.1016/j.mspro.2012.06.004
