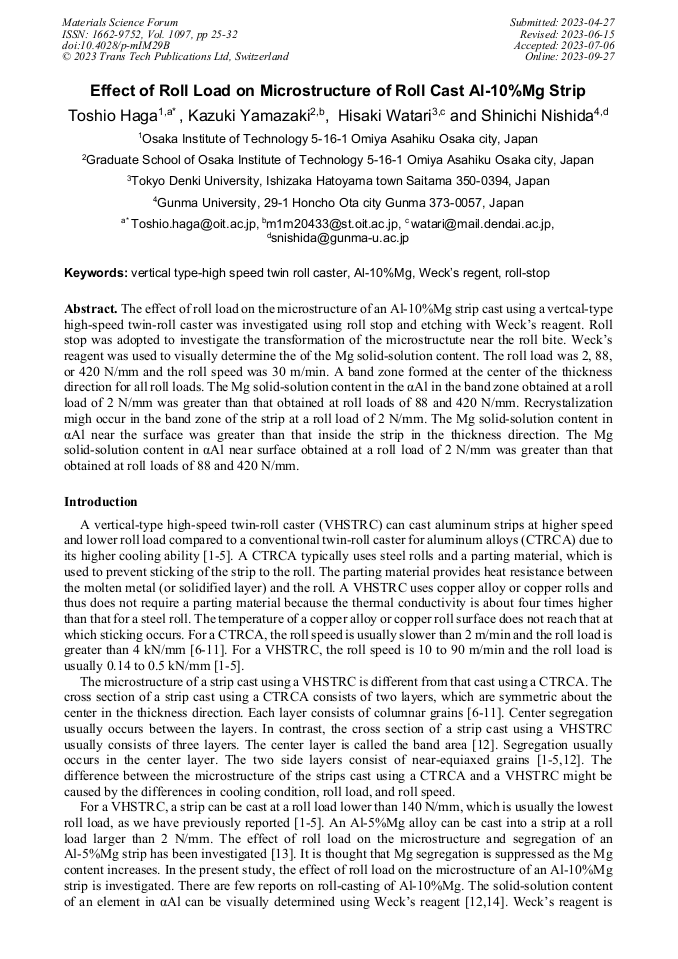

Effect of Roll Load on Microstructure of Roll Cast Al-10%Mg Strip

Abstract:

The effect of roll load on the microstructure of an Al-10%Mg strip cast using a vertcal-type high-speed twin-roll caster was investigated using roll stop and etching with Weck’s reagent. Roll stop was adopted to investigate the transformation of the microstructute near the roll bite. Weck’s reagent was used to visually determine the of the Mg solid-solution content. The roll load was 2, 88, or 420 N/mm and the roll speed was 30 m/min. A band zone formed at the center of the thickness direction for all roll loads. The Mg solid-solution content in the αAl in the band zone obtained at a roll load of 2 N/mm was greater than that obtained at roll loads of 88 and 420 N/mm. Recrystalization migh occur in the band zone of the strip at a roll load of 2 N/mm. The Mg solid-solution content in αAl near the surface was greater than that inside the strip in the thickness direction. The Mg solid-solution content in αAl near surface obtained at a roll load of 2 N/mm was greater than that obtained at roll loads of 88 and 420 N/mm.

• Periodical: Materials Science Forum (Volume 1097)
• Pages: 25-32
• DOI: https://doi.org/10.4028/p-mIM29B
• Online since: September 2023
• Authors: Toshio Haga*, Kazuki Yamazaki, Hisaki Watari, Shinichi Nishida
• Keywords: Al-10%Mg, Roll-Stop, Vertical Type-High Speed Twin Roll Caster, Weck’s Regent

References

[1] T. Haga, K. Takahashi, M. Ikawa: A vertical type twin roll caster for aluminum alloy strip, J. Mater. Process Technol. 140 (2003) 610-615

DOI: 10.1016/s0924-0136(03)00835-5

[2] T. Haga, Development of a twin roll caster for light metals, J. Achiev. Mater. Manuf. Eng. 43(2010) 393-402.

[3] T.Haga, M.Ikawa, H.Watari, K.Suzuki, S.Kumai, High-speed twin roll casting of thin aluminum alloy strips containing Fe impurities, Materials Transactions Vol.46(2005) 2596-2601.

DOI: 10.2320/matertrans.46.2596

[4] K. Suzuki, S. Kumai, Y. Saito, T. Haga, High-speed twin-roll strip casting of Al-Mg-Si alloys with high iron content, Materials Transactions Vol.46(2005)2602-2608.

DOI: 10.2320/matertrans.46.2602

[5] T. Haga, M. Ikawa, H. Watari, K. Suzuki, S.Kumai, 6111 aluminum alloy strip casting using an unequal diameter twin roll caster, Journal of Materials Processing and Technology, Vol.172(2006)271-276.

DOI: 10.1016/j.jmatprotec.2005.10.007

[6] T. Haga，K. Komeda，K.Matsuoka，S.Kumai，H.Watari, Roll casting of recycled AA5182, Applied Mechanics and Materials, Vol.121-126(2012)4667-4670.

DOI: 10.4028/www.scientific.net/amm.121-126.4667

[7] Y. Li, C. He, J. Li, Z. Wang, D. Wu, G. Xu: A novel approach to improve the microstructure and mechanical properties of Al-Mg-Si aluminum alloys during twin-roll casting, Metals 13,1713(2020).

DOI: 10.3390/ma13071713

[8] R. Cook, P. G. Groock, P. M. Thomas, D. V. Edmonds, J. D. Hunt: Development of the twin-roll casting process, J. Mater. Process. Technol. 55(2) (1995) 76-84.

DOI: 10.1016/0924-0136(95)01788-7

[9] S.Hamers, D.Smith, C.Romanowski, G.Yildizbayrak, B.Taraglio, Twin roll casting of aluminum at 2.5mm gauge. Production experience and process improvement, Light Met. (1999)931-937.

[10] P.Y. Menet, R.Cayol, J.Moriceau, Pechiney Jumbo 3CM 'TM' start-up of the Neu-Brisach thin strip caster, Light Met. (1997) 753-756.

[11] O.Daland, A.B. Espedal, M.L. Nedreberg, I.Alvestad, Thin gage twin-roll casting, process capabilities and product quality, Light Met. (1997) 745-752.

DOI: 10.1007/978-3-319-48228-6_125

[12] T.H. Nguyen, R.Song, Y.Harada, S.Kumai: Color Metallography of Characteristic Microstructure in High-Speed Twin-Roll Cast Al-Mn-Si Alloy Strip Using Weck's Reagent, Mater. Trans. 61(2020)225-2262.

DOI: 10.2320/matertrans.l-m2020856

[13] Kazuki Yamazaki, Toshio Haga, In-Line Hot Rolling of Al–Mg Strip Casts Using Unequal-Diameter Twin-Roll Caster, Metals 2023, 13(1), 72;.

DOI: 10.3390/met13010072

[14] Kamolwat Prapasajchavet, Yohei Harada, Shinji Kumai, Microstructure Analysis of Al-5.5%Mg alloy Semi-Solid Slurry by Weck's Regent.

DOI: 10.1007/s40962-016-0084-9

[15] T.Haga, Y.Kurahashi: Casting Process at Roll Bite in Strip Cast Using Vertical-Type High-Speed Twin-Roll Caster. Metals, 12(2022) 1169; https://doi.org/10.3390/met12071169.W. Strunk Jr., E.B. White, The Elements of Style, third ed., Macmillan, New York, 1979.

DOI: 10.3390/met12071169
