Casting of Thin Aluminum Alloy Wire Using a Single Wheel Caster

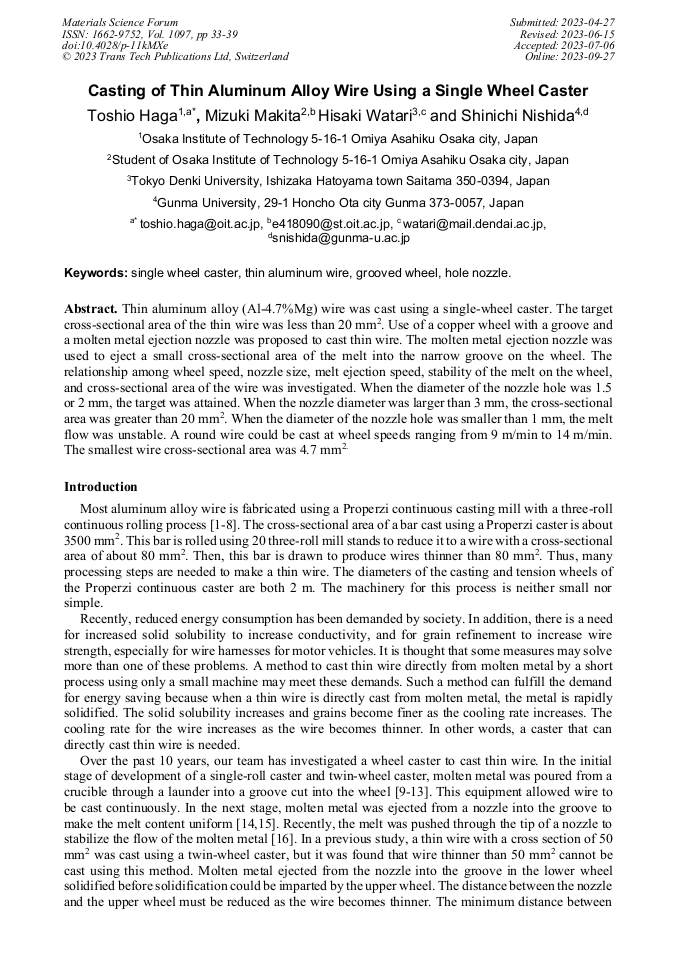

Article Preview

Abstract:

Thin aluminum alloy (Al-4.7%Mg) wire was cast using a single-wheel caster. The target cross-sectional area of the thin wire was less than 20 mm². Use of a copper wheel with a groove and a molten metal ejection nozzle was proposed to cast thin wire. The molten metal ejection nozzle was used to eject a small cross-sectional area of the melt into the narrow groove on the wheel. The relationship among wheel speed, nozzle size, melt ejection speed, stability of the melt on the wheel, and cross-sectional area of the wire was investigated. When the diameter of the nozzle hole was 1.5 or 2 mm, the target was attained. When the nozzle diameter was larger than 3 mm, the cross-sectional area was greater than 20 mm². When the diameter of the nozzle hole was smaller than 1 mm, the melt flow was unstable. A round wire could be cast at wheel speeds ranging from 9 m/min to 14 m/min. The smallest wire cross-sectional area was 4.7 mm².

You might also be interested in these eBooks

International Conference on Material Engineering Research

Functional Materials and Nanoresearch

Info:

Periodical:

Materials Science Forum (Volume 1097)

Pages:

33-39

DOI:

https://doi.org/10.4028/p-11kMXe

Citation:

Cite this paper

Online since:

September 2023

Authors:

Toshio Haga*, Mizuki Makita, Hisaki Watari, Shinichi Nishida

Keywords:

Grooved Wheel, Hole Nozzle, Single Wheel Caster, Thin Aluminum Wire

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2023 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

[1] Giuseppe E. Marcantoni, FROM MOLTEN METAL TO 3.2 mm WIRE FOR MECHANICAL APPLICATIONS, Light Metals 2012 Edited by: Carlos E. Suarez TMS (2012).

DOI: 10.1002/9781118359259.ch44

[2] Y. Otsuka, T. Nishikawa, Y. Yoshimoto, Y. Akasofu, Development of Aluminum Wire for Low-Voltage Automotive Wiring Harnesses, SAE Int. J. Passeng. Cars - Electron. Electr. Syst. 5(2012)486-491.

DOI: 10.4271/2012-01-0925

[3] M. G. Kim, "Continuous Casting and Rolling for Aluminum Alloy Wire and Rod", Materials Science Forum, 638-642(2010)255-260.

DOI: 10.4028/www.scientific.net/msf.638-642.255

[4] M. Jabłoński, Effect of Iron Addition to Aluminium on the Structure and Properties of Wires Used for Electrical Purposes, Materials Science Forum, 690(2011)459-462.

DOI: 10.4028/www.scientific.net/msf.690.459

[5] K. Buxmann, E. Gold, Solidification Conditions and Microstructure in Continuously Cast Aluminum 　 JOURNAL OF METALS　April 1982, Volume 34(1982)28–34.

DOI: 10.1007/bf03337996

[6] N. Cheung, N. Santos, J. Quaresma, G. Dulikravich, A. Garcia, Interfacial heat transfer coefficients and solidification of an aluminum alloy in a rotary continuous caster, Int. J. Heat & Mass Transfer,52(2009)451-459.

DOI: 10.1016/j.ijheatmasstransfer.2008.07.003

[7] D. Lewis, THE PRODUCTION OF NON-FERROUS METAL SLAB AND BAR BY CONTINUOUS-CASTING AND ROLLING METHODS, Metallurgical Reviews, 6(1961) 143- 192.

DOI: 10.1179/mtlr.1961.6.1.143

[8] J. Birat, Continuous casting for tomorrow: Near-Net Shape Casting, Rev. Met. Paris, 86(1989) 317-334.

DOI: 10.1051/metal/198986040317

[9] T. Haga, T. Miyake, Casting of Aluminum Alloy Rod by a Single Wheel with V-Groove, Key Engineering Materials, 792(2018) 53-58.

DOI: 10.4028/www.scientific.net/kem.792.53

[10] T. Haga, T. Miyake, Fabrication of Aluminum Alloy Rods Using a Single Wheel Caster with Rotating Side Dam Plates and Pool-Less Pouring, Key Engineering Materials, 792(2018) 35-40.

DOI: 10.4028/www.scientific.net/kem.792.35

[11] T. Haga, T. Miyake, Investigation of Side-Dam Plate in Single-Wheel Caster for Casting Rods, Key Engineering Materials, 805 (2019) 31-36.

DOI: 10.4028/www.scientific.net/kem.805.31

[12] Toshio Haga, Kirito Itou, Hisaki Watari and Shinichi Nishida, Casting of Thin Bare Wire Using Wheel Caster Equipped with Rotating, Side-Dam Plates, Key Engineering Materials, 846(2020) 152-156.

DOI: 10.4028/www.scientific.net/kem.846.152

[13] Toshio Haga, Naotsugu Okuda, Hisaki Watari and Shinichi Nishida, Casting of Thin Aluminum Alloy Rod Using Twin Wheel Caster Equipped with Rotating Side Dam Plates, Materials Science Forum, 1042 (2021) 61-67.

DOI: 10.4028/www.scientific.net/msf.1042.61

[14] Toshio Haga,Ryusei Tahara, Hisaki Watari, Shinichi Nishida, Casting of Wire Using a Twin Wheel Caster, Key Engineering Materials, 904 (2021) 137-142.

DOI: 10.4028/www.scientific.net/kem.904.137

[15] Toshio Haga, Masanari Daishi, Hisaki Watari and Shinichi Nishida, Thin Wire Casting Using Twin Wheel Caster Equipped with Horizontal Wheels, Materials Science Forum, 1066(2022) 19-15.

DOI: 10.4028/p-y78gtx

[16] Toshio Haga, Naotsugu Okuda, Hisaki Watari, Shinichi Nishida, Casting of Wire Using Twin Wheel Caster with Melt Holding Nozzle, Key Engineering Materials, 934, (2022) 103-108.

DOI: 10.4028/p-r8pk4x
