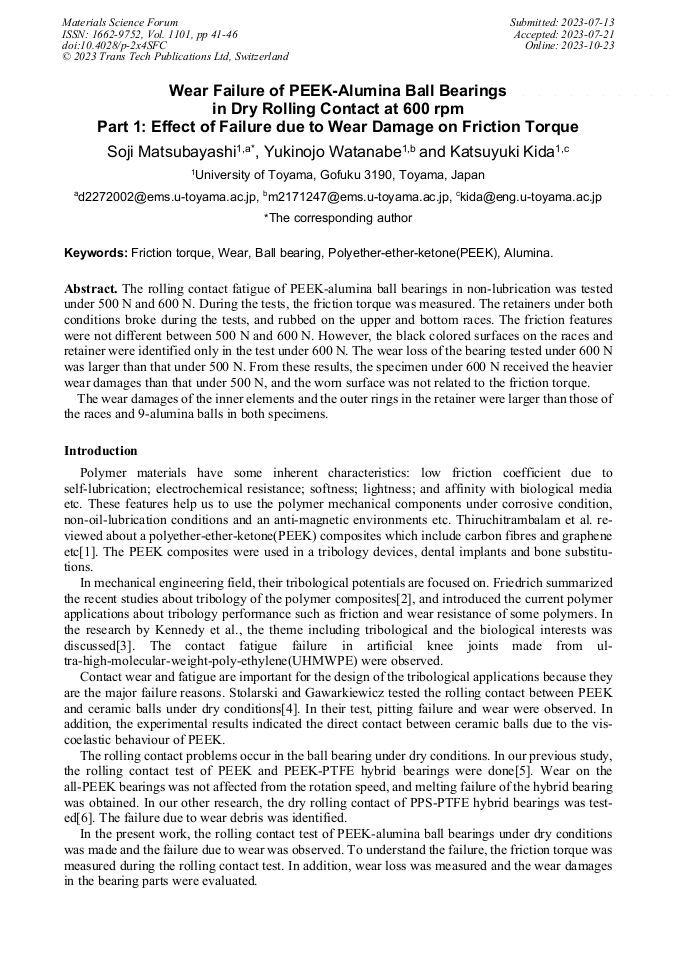

Wear Failure of PEEK-Alumina Ball Bearings in Dry Rolling Contact at 600 rpm - Part 1: Effect of Failure due to Wear Damage on Friction Torque

Abstract:

The rolling contact fatigue of PEEK-alumina ball bearings in non-lubrication was tested under 500 N and 600 N. During the tests, the friction torque was measured. The retainers under both conditions broke during the tests, and rubbed on the upper and bottom races. The friction features were not different between 500 N and 600 N. However, the black colored surfaces on the races and retainer were identified only in the test under 600 N. The wear loss of the bearing tested under 600 N was larger than that under 500 N. From these results, the specimen under 600 N received the heavier wear damages than that under 500 N, and the worn surface was not related to the friction torque. The wear damages of the inner elements and the outer rings in the retainer were larger than those of the races and 9-alumina balls in both specimens.

You might also be interested in these eBooks

International Conference on Mechanical Structures and Smart Materials

View Preview

Mechanical Properties and Wear Resistance of Structural Materials

View Preview

Info:

Periodical:

Materials Science Forum (Volume 1101)

Pages:

41-46

DOI:

https://doi.org/10.4028/p-2x4SFC

Citation:

Cite this paper

Online since:

October 2023

Authors:

Soji Matsubayashi*, Yukinojo Watanabe, Katsuyuki Kida

Keywords:

Alumina, Ball Bearing, Friction Torque, Polyether-Ether-Ketone (PEEK), Wear

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] M. Thiruchitrambalam, D. B. Kumar, D. Shanmugram, M. Jawaid, A review on PEEK composites-Manufacturing methods properties and applications, Material Today: Proceedings 33, (2020) 1085-1092.

DOI: 10.1016/j.matpr.2020.07.124

Google Scholar

[2] K. Friedrich, Polymer composites for tribological applications, Advanced Industrial and Engineering Polymer Research 1, (2018) 3-39.

Google Scholar

[3] F. E. Kennedy, J. H. Currier, S. Plumet, J. L. Duda, D. P. Gestwick, J. P. Collier, B. H. Currier, M-C. Dubourg, Contact fatigue failure of ultra-high molecular weight polyethylene bearing components of knee prostheses, Journal of Tribology 122(1), (2000) 332-339.

DOI: 10.1115/1.555364

Google Scholar

[4] T. A. Stolarski, R. Gawarkiewicz, Peculiarities associated with testing polyetheretherketone (PEEK) in a model rolling contact, Tribology International 81, (2015) 9-18.

DOI: 10.1016/j.triboint.2014.07.018

Google Scholar

[5] K. Mizobe, T. Honda, H. Koike, E. C. Santos, K. Kida, Y. Kashima, Relationship between load, rotation speed and, strength in all-PEEK and PEEK race-PTFE retainer hybrid polymer bearings under dry rolling contact fatigue, Advanced Materials Research 567, (2012) 66-70.

DOI: 10.4028/www.scientific.net/amr.567.66

Google Scholar

[6] K. Mizobe, T. Honda, H. Koike, E. C. Santos, K. Kida, Y. Kashima, Effect of thrust load and rotation speed on wear loss in PPS race-PTFE retainer hybrid polymer thrust bearings under dry contact, Advanced Materials Research 566, (2012) 157-161.

DOI: 10.4028/www.scientific.net/amr.566.157

Google Scholar
