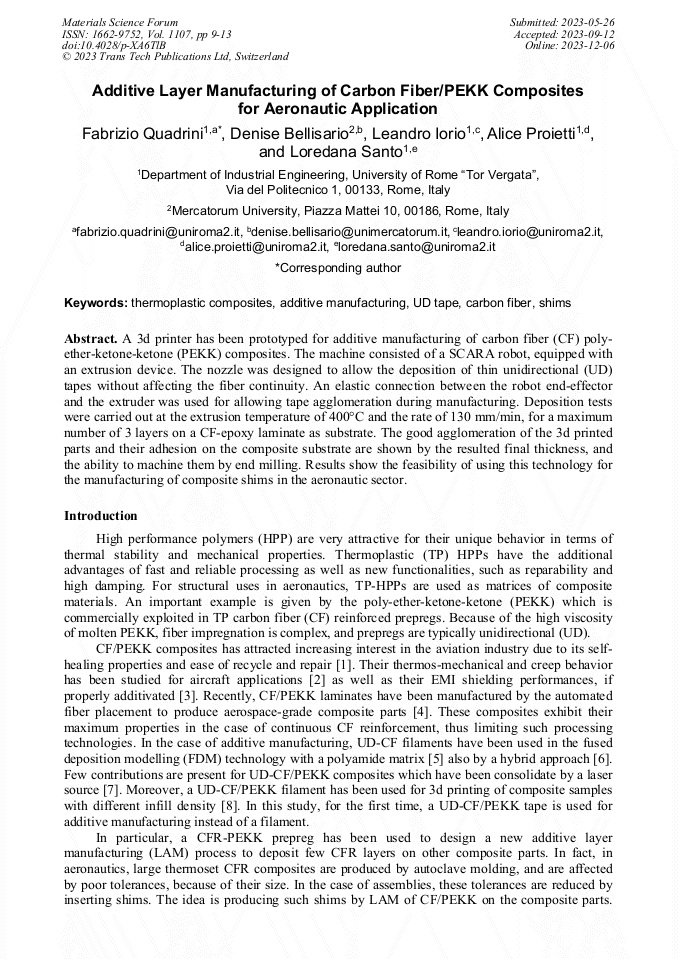

Additive Layer Manufacturing of Carbon Fiber/PEKK Composites for Aeronautic Application

Abstract:

A 3d printer has been prototyped for additive manufacturing of carbon fiber (CF) poly-ether-ketone-ketone (PEKK) composites. The machine consisted of a SCARA robot, equipped with an extrusion device. The nozzle was designed to allow the deposition of thin unidirectional (UD) tapes without affecting the fiber continuity. An elastic connection between the robot end-effector and the extruder was used for allowing tape agglomeration during manufacturing. Deposition tests were carried out at the extrusion temperature of 400°C and the rate of 130 mm/min, for a maximum number of 3 layers on a CF-epoxy laminate as substrate. The good agglomeration of the 3d printed parts and their adhesion on the composite substrate are shown by the resulted final thickness, and the ability to machine them by end milling. Results show the feasibility of using this technology for the manufacturing of composite shims in the aeronautic sector.

• Periodical: Materials Science Forum (Volume 1107)
• Pages: 9-13
• DOI: https://doi.org/10.4028/p-XA6TlB
• Online since: December 2023
• Authors: Fabrizio Quadrini*, Denise Bellisario, Leandro Iorio, Alice Proietti, Loredana Santo
• Keywords: Additive Manufacturing, Carbon Fiber, Shims, Thermoplastic Composites, UD Tape

References

[1] J. Ge, W. Zhang, M. Luo, G. Catalanotti, B.G. Falzon, C. Higgins, D. Zhang, Y. Jin, D. Sun, Multi-objective optimization of thermoplastic CF/PEKK drilling through a hybrid method: An approach towards sustainable manufacturing, Compos. Part A Appl. 167 (2023) art. no. 107418.

DOI: 10.1016/j.compositesa.2022.107418

[2] G. Pedoto, J.C. Grandidier, M. Gigliotti, A. Vinet, Assessment and simulation of the thermomechanical tensile and creep behavior of C/PEKK composites for aircraft applications above the glass transition temperature, Compos. Struct. 318 (2023) art. no. 117069.

DOI: 10.1016/j.compstruct.2023.117069

[3] X. Yang, J. Luo, H. Ren, Y. Xue, C. Yang, T. Yuan, Z. Yang, Y. Liu, H. Zhang, J. Yu, Simultaneously improving the EMI shielding performances and mechanical properties of CF/PEKK composites via MXene interfacial modification, J. Mater. Sci. Technol. 154 (2023) 202-209.

DOI: 10.1016/j.jmst.2023.01.020

[4] E.F. Sukur, Thermally conditioned aerospace-grade carbon fiber reinforced polyether ketone ketone composites: Structure, impact response, and thermomechanical performance, Polym. Compos. 44 (2023) 2530-2544.

DOI: 10.1002/pc.27261

[5] S. Grieder, I. Zhilyaev, M. Küng, C. Brauner, M. Akermann, J. Bosshard, P. Inderkum, J. Francisco, Y. Willemin, M. Eichenhofer, Consolidation of Additive Manufactured Continuous Carbon Fiber Reinforced Polyamide 12 Composites and the Development of Process-Related Numerical Simulation Methods, Polymers 14 (2022) art. no. 3429.

DOI: 10.3390/polym14163429

[6] N. Matkovic, K. Höger, M. Friedmann, F. Stamer, J. Fleischer, G. Lanza, Identification of hybridization strategies for combining fused filament fabrication with unidirectional tape reinforcement, Compos. Commun. 38 (2023) art. no. 101484.

DOI: 10.1016/j.coco.2022.101484

[7] B. Chang, X. Li, P. Parandoush, S. Ruan, C. Shen, D. Lin, Additive manufacturing of continuous carbon fiber reinforced poly-ether-ether-ketone with ultrahigh mechanical properties, Polym. Test. 88 (2020) art. no. 106563.

DOI: 10.1016/j.polymertesting.2020.106563

[8] M. Nachtane, M. Tarfaoui, Y. Ledoux, S. Khammassi, E. Leneveu, J. Pelleter, Experimental investigation on the dynamic behavior of 3D printed CF-PEKK composite under cyclic uniaxial compression, Compos. Struct. 247 (2020) art. no. 11247.

DOI: 10.1016/j.compstruct.2020.112474
