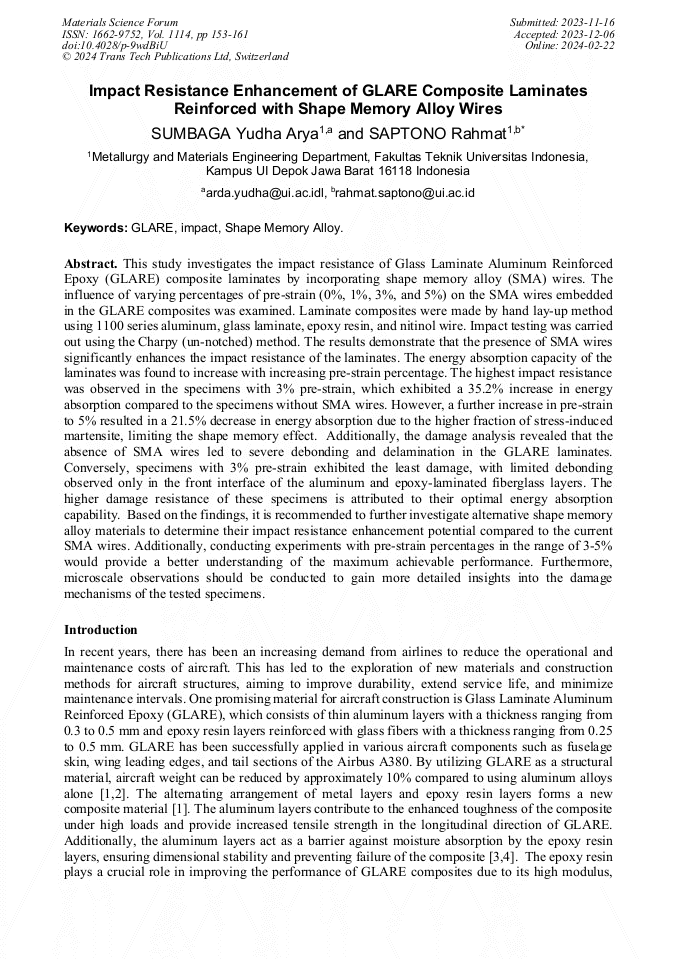

Impact Resistance Enhancement of GLARE Composite Laminates Reinforced with Shape Memory Alloy Wires

Abstract:

This study investigates the impact resistance of Glass Laminate Aluminum Reinforced Epoxy (GLARE) composite laminates by incorporating shape memory alloy (SMA) wires. The influence of varying percentages of pre-strain (0%, 1%, 3%, and 5%) on the SMA wires embedded in the GLARE composites was examined. Laminate composites were made by hand lay-up method using 1100 series aluminum, glass laminate, epoxy resin, and nitinol wire. Impact testing was carried out using the Charpy (un-notched) method. The results demonstrate that the presence of SMA wires significantly enhances the impact resistance of the laminates. The energy absorption capacity of the laminates was found to increase with increasing pre-strain percentage. The highest impact resistance was observed in the specimens with 3% pre-strain, which exhibited a 35.2% increase in energy absorption compared to the specimens without SMA wires. However, a further increase in pre-strain to 5% resulted in a 21.5% decrease in energy absorption due to the higher fraction of stress-induced martensite, limiting the shape memory effect. Additionally, the damage analysis revealed that the absence of SMA wires led to severe debonding and delamination in the GLARE laminates. Conversely, specimens with 3% pre-strain exhibited the least damage, with limited debonding observed only in the front interface of the aluminum and epoxy-laminated fiberglass layers. The higher damage resistance of these specimens is attributed to their optimal energy absorption capability. Based on the findings, it is recommended to further investigate alternative shape memory alloy materials to determine their impact resistance enhancement potential compared to the current SMA wires. Additionally, conducting experiments with pre-strain percentages in the range of 3-5% would provide a better understanding of the maximum achievable performance. Furthermore, microscale observations should be conducted to gain more detailed insights into the damage mechanisms of the tested specimens.

• Periodical: Materials Science Forum (Volume 1114)
• Pages: 153-161
• DOI: https://doi.org/10.4028/p-9wdBiU
• Online since: February 2024
• Authors: Yudha Arya Sumbaga, Rahmat Saptono*
• Keywords: GLARE, Impact, Shape Memory Alloy

References

[1] J. Sinke, Manufacturing of GLARE Part and Structure, App. Comp. Mat. 10 (2003) 293-305.

[2] G. Wu and J.M. Yang, The Mechanical Behavior of GLARE Laminates for Aircraft Structures, Min. Met. Mat. Soc. 57 (2005) 72–79.

[3] J. W. G. Ad Vlot, Fibre Metal Laminates, Dordrecht, Springer, 2001.

[4] M. Osfouri, O. Rahmani, Nitinol wire-reinforced GLAREs as a novel impact resistant material: An experimental study, Comp. Struc. 276 (2021).

DOI: 10.1016/j.compstruct.2021.114521

[5] Concilio, V. Antonucci, F. Auricchio, L. Lecce, and E. Sacco, Shape Memory Alloy Engineering: For Aerospace, Structural, and Biomedical Applications 2nd Edition, Oxford, Butterworth-Heineman, 2021.

DOI: 10.1016/b978-0-12-819264-1.05001-9

[6] V. Birman, K. Chandrashekhara, and S. Sain, An approach to optimization of shape memory alloy hybrid composite plates subjected to low-velocity impact, Comp. 27 5 (1996) 439-446.

DOI: 10.1016/1359-8368(96)00010-8

[7] C.H. Fu, M. P. Sealy, Y. B. Guo, and X. T. Wei, Austenite-martensite phase transformation of biomedical Nitinol by ball burnishing, Mat. Proc. Tech. 214 12 (2014) 3122-3130.

DOI: 10.1016/j.jmatprotec.2014.07.019

[8] S. M. R. Khalili and A. Saeedi, Dynamic response of laminated composite beam reinforced with shape memory alloy wires subjected to low velocity impact of multiple masses, Comp. Mat. 52 8 (2018) 1089-1101.

DOI: 10.1177/0021998317722042

[9] M. Sun, Z. Wang, B. Yang, and X. Sun, An approach to optimization of shape memory alloy hybrid composite plates subjected to low-velocity impact, Comp. Struct. 171 (2017) 170-184.

[10] E. H. Kim, I. Lee, J. H. Roh, J. S. Bae, I. H. Choi, and K. N. Koo, Effects of shape memory alloys on low velocity impact characteristics of composite plate, Comp. Struct. 93 11 (2011) 2903-2909.

DOI: 10.1016/j.compstruct.2011.05.013

[11] H. Sadiq, M. B. Wong, R. Al-Mahaidi, and X. L. Zhao, The effects of heat treatment on the recovery stresses of shape memory alloys, Smart Mat. Struct. 19 (2010) 3.

DOI: 10.1088/0964-1726/19/3/035021

[12] X. Yan and J. Van Humbeeck, Influence of pre-strain on recovery stress of annealed NiTi thin wire during isothermal holding, Alloys and Compounds 509 3 (2011) 1001-1006.

DOI: 10.1016/j.jallcom.2010.09.156

[13] M. Rathnasabapathy, A. P. Mouritz, and A. C. Orifici, Finite element modelling of the impact response of fibre metal laminates under tension preloading Comp. Part A 157 (2022) 106930

DOI: 10.1016/j.compositesa.2022.106930

[14] M. Sadighi, T. Pärnänen, R. C. Alderliesten, M. Sayeaftabi, and R. Benedictus, Experimental and numerical investigation of metal type and thickness effects on the impact resistance of fiber metal laminates, App. Comp. Mat. 19 3-4 (2012) 545-559.

DOI: 10.1007/s10443-011-9235-6

[15] Seyed Yaghoubi, Y. Liu, and B. Liaw, Low-Velocity Impact on GLARE 5 Fiber-Metal Laminates: Influences of Specimen Thickness and Impactor Mass, Aero. Eng. 25 3 (2012) 409-420.

DOI: 10.1061/(asce)as.1943-5525.0000134

[16] S. Sridharan (Ed.), Delamination Behavior of Composites, Boca Raton, Woodhead Publishing Limited, 2008.

[17] S. Abrate (Ed.), Impact Engineering of Composite Structures, Vienna, Springer, (2011)

[18] F. R. Gibson, Principles of Composite Material Mechanics 4th Edition, Boca Raton, CRC Press, 2016.
