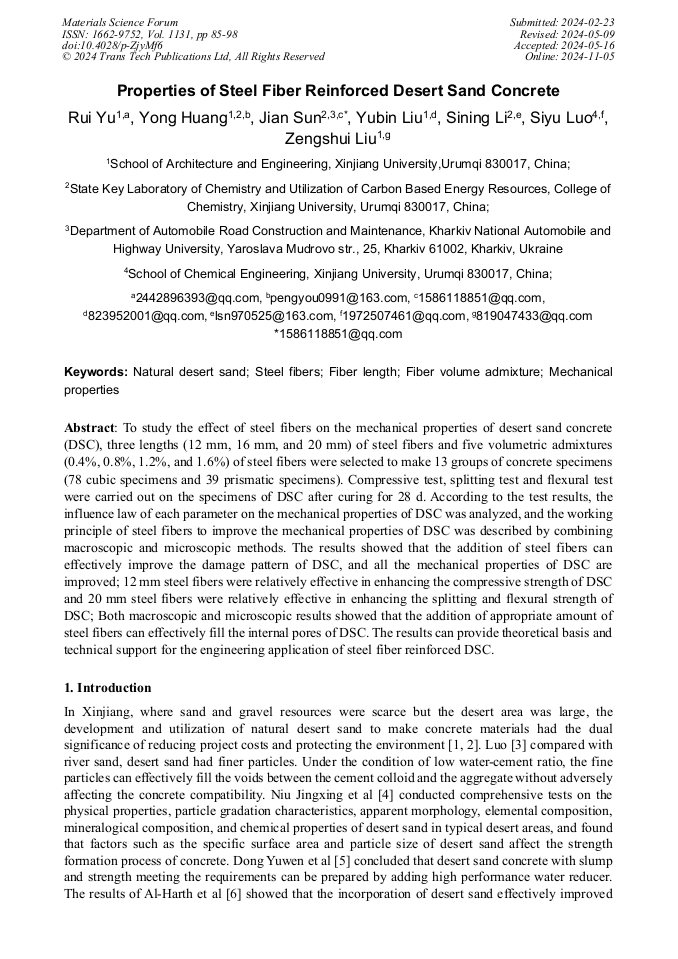

Properties of Steel Fiber Reinforced Desert Sand Concrete

Abstract:

To study the effect of steel fibers on the mechanical properties of desert sand concrete (DSC), three lengths (12 mm, 16 mm, and 20 mm) of steel fibers and five volumetric admixtures (0.4%, 0.8%, 1.2%, and 1.6%) of steel fibers were selected to make 13 groups of concrete specimens (78 cubic specimens and 39 prismatic specimens). Compressive test, splitting test and flexural test were carried out on the specimens of DSC after curing for 28 days. According to the test results, the influence law of each parameter on the mechanical properties of DSC was analyzed, and the working principle of steel fibers to improve the mechanical properties of DSC was described by combining macroscopic and microscopic methods. The results showed that the addition of steel fibers can effectively improve the damage pattern of DSC, and all the mechanical properties of DSC are improved; 12 mm steel fibers were relatively effective in enhancing the compressive strength of DSC and 20 mm steel fibers were relatively effective in enhancing the splitting and flexural strength of DSC; Both macroscopic and microscopic results showed that the addition of appropriate amount of steel fibers can effectively fill the internal pores of DSC. The results can provide theoretical basis and technical support for the engineering application of steel fiber reinforced DSC.

• Periodical: Materials Science Forum (Volume 1131)
• Pages: 85-98
• DOI: https://doi.org/10.4028/p-ZjyMf6
• Online since: November 2024
• Authors: Rui Yu, Yong Huang, Jian Sun*, Yu Bin Liu, Si Ning Li, Si Yu Luo, Zeng Shui Liu
• Keywords: Fiber Length, Fiber Volume Admixture, Mechanical Properties, Natural Desert Sand, Steel Fibers

References

[1] Cao Chang, Li Yonghua. Crazy river sand [J]. China Economic Weekly, 2014, 28-32. DOI:CNKI:SUN:JJZK.0.2014-18-016.

[2] Zhang Kun, Wang Yong, Niu Zhaoyuan, et al. Research progress on resource utilization of desert sand concrete [J]. Qinghai Transportation Science and Technology, 2018, 116-120.

[3] M., BéDéRINA, and et al. Reuse of local sand: effect of limestone filler proportion on the rheological and mechanical properties of different sand concretes [J]. Cement Concrete Research, 2005, 35(6):1172-1179.

DOI: 10.1016/j.cemconres.2004.07.006

[4] Niu Jingxing, Wang Zhi, Pan Zhouyang, et al. Physicochemical properties of desert sand and its effect on concrete strength [J]. Journal of Shihezi University (Natural Science Edition), 1-7.

[5] Zepei Zhou, Siuwan Zhou, Yuwen Dong et al. Experimental study on preparation and performance of desert sand concrete with large slump [J]. Hydropower Energy Science, 2015, 33: 107-111. DOI:CNKI:SUN:SDNY.0.2015-08-027.

[6] Al-Harthy A.S, Halim M.A, Taha R, et al. The properties of concrete made with fine dune sand [J]. Construction Building Materials, 2007, 21(8): 1803-1808.

DOI: 10.1016/j.conbuildmat.2006.05.053

[7] Byla, Ahz, Bgl, et al. Multi-scale study on mechanical property and strength prediction of aeolian sand concrete - ScienceDirect [J]. Construction Building Materials, 2020, 247.

DOI: 10.1016/j.conbuildmat.2020.118538

[8] Li Wenlong. Research on road performance of windlogged sand concrete [D]. Hebei University of Technology, 2021.

[9] Yang Weiwu, Chen Yunlong, Liu Haifeng, et al. Research on Mechanical Properties of Desert Sand High Strength Concrete [J]. Concrete, 2014, 100-102.

[10] Li Zhiqiang, Wang Guoqing, Yang Sen, et al. Experimental study on splitting strength of sand concrete in Gurbantunggut Desert [J]. Concrete, 2016, 78-81. DOI:CNKI:SUN:HLTF.0.2016-08-020.

[11] Du Yonggang, Liu Haifeng, Ma Hejiao, et al. Experimental study on compressive and flexural strength of desert sand concrete [J]. Concrete, 2018, 102-104,108.

[12] Li Huipeng, Cui Zhuang. Experimental study on splitting tensile strength of desert sand concrete [J]. Comprehensive utilization of fly ash, 2022,36:95-99.DOI:CNKI:SUN:GYJZ.0.2019-01-024.

[13] Guo Wei, Liu Juanhong. Research on the proportion and concrete properties of fine sand concrete in Xinjiang desert [J]. Comprehensive utilization of fly ash, 2014, 28-31.

[14] Wang YS. Experimental study on mechanical properties and durability of desert sand concrete by steel fiber and rubber powder [D]; Ningxia University, 2013.

[15] Mu Changwen, Mu Song. Development and Prospect of Concrete Technology [J]. Silicate Bulletin, 2020, 39: 1-11.

[16] Qin Honggen, Wang Xiutian, Pang Chaoming, et al. Influence of characteristic parameters of steel fibers on the reinforcing toughening and crack-resisting effect of concrete [J]. Concrete and Cement Products, 2000, 45-48.

[17] Sui Haoliang, Wang Fubin, Yang Xin. A review on the effect of macro factors of fiber on concrete [J]. Heilongjiang Water Conservancy Science and Technology, 2023, 51: 111-113.

[18] Chang Sheng, Luo Yunrong, Fu Lei. A review on the mechanical properties of steel fiber concrete [J]. Journal of Sichuan University of Light and Chemical Engineering (Natural Science Edition), 2022, 35: 84-92.

[19] Pan Qingxiang, Cai Chenzhi. Review of steel fiber concrete [J]. Science and Technology Information, 2010, 96-96.

[20] Han J, Zhao M, Chen J, et al. Effects of steel fiber length and coarse aggregate maximum size on mechanical properties of steel fiber reinforced concrete [J]. Construction Building Materials, 2019, 209(Jun.10): 577-591.

DOI: 10.1016/j.conbuildmat.2019.03.086

[21] Yoo D Y, Lee J H, Yoon Y S. Effect of fiber content on mechanical and fracture properties of ultra-high performance fiber reinforced cementitious composites [J]. Composite Structures, 2013, 106(dec.): 742-753.

DOI: 10.1016/j.compstruct.2013.07.033

[22] Ying Wenzong. Research on mechanical properties of different types of steel fiber reinforced concrete [J]. Transportation Standardization, 2014, 42: 111-114.

[23] Guan Yi, Jiang Yalong, Shao Yang, et al. Compressive test and numerical simulation of steel fiber concrete [J]. Journal of Lanzhou Institute of Technology, 2023, 30: 98-102.

[24] Abbas S, Soliman A M, Nehdi M L. Exploring mechanical and durability properties of ultra-high performance concrete incorporating various steel fiber lengths and dosages [J]. Construction Building Materials, 2015, 75(jan.30): 429-441. DOI:10.1016/j.conbuildmat. 2014.11.017.

DOI: 10.1016/j.conbuildmat.2014.11.017

[25] HAN Shicheng, ZHANG Cong, HUA Yuan. Mechanical properties of hybrid fibre reinforced strain hardening cementitious composites (HyFRSHCC)[J]. Silicate Bulletin, 2019, 38(1): 77-82,87. DOI:CNKI:SUN:GSYT.0.2019-01-014.

[26] Han Juhong, Li Mingxuan, YANG Xiaoqing, et al. Experimental study on fracture properties of concrete with mixed steel fibers [J]. Journal of Civil Engineering, 2020, 53 (09): 31-40.

[27] Yu R, Spiesz P, Brouwers H J H. Static properties and impact resistance of a green Ultra-High Performance Hybrid Fibre Reinforced Concrete (UHPHFRC): Experiments and modeling [J]. Construction Building Materials, 2014, 68: 158-171.

DOI: 10.1016/j.conbuildmat.2014.06.033

[28] Wu Z, Shi C, He W, et al. Effects of steel fiber content and shape on mechanical properties of ultra-high performance concrete [J]. Construction and Building Materials, 2016, 103(Jan.30): 8-14.

DOI: 10.1016/j.conbuildmat.2015.11.028

[29] Li Guangyan. Research on the effect of steel fiber admixture on the tensile strength of activated powder RPC concrete [J]. Contemporary Chemical Industry, 2018, 47: 2345-2348.

[30] Chang Hong, Shen Peng, Gu Fuguang. Experimental study on mechanical properties of steel fiber concrete [J]. Concrete, 2020, 4: 67-69.

[31] Huang Yong, Shi Caijun, Ouyang Xue, et al. Progress of concrete splitting tensile test methods and properties [J]. Materials Guide, 2021, 35 (01): 1131-1140.

[32] BAI Min, NIU Ditao, JIANG Lei,et al. Research on improvement of mechanical properties and microstructure of concrete by steel fibres [J]. Silicate Bulletin,2013,32(10):2084-2089. DOI:CNKI:SUN:GSYT.0.2013-10-037.
