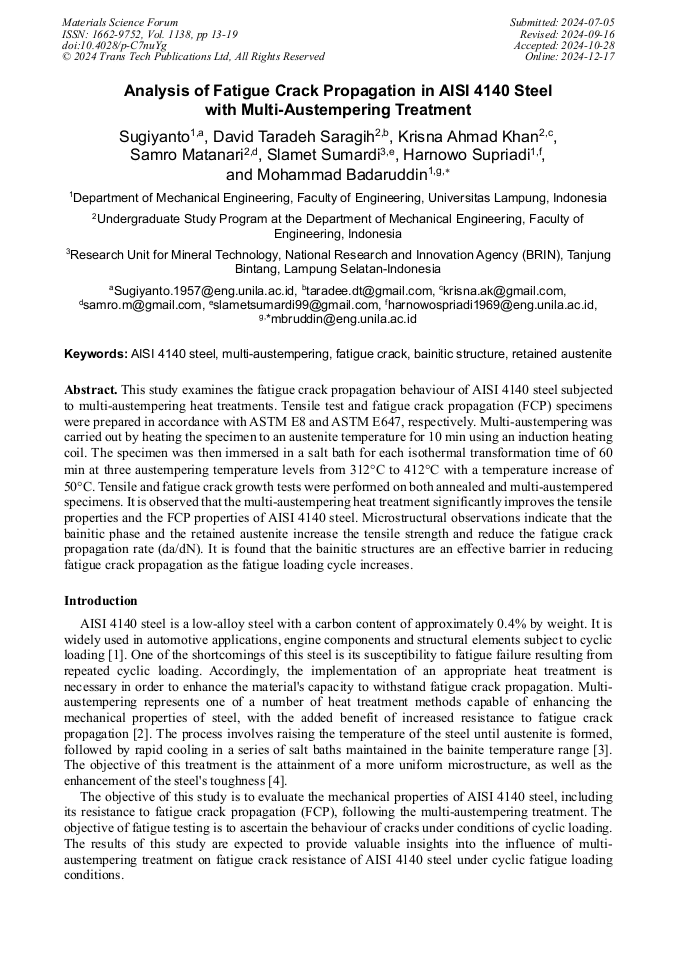

Analysis of Fatigue Crack Propagation in AISI 4140 Steel with Multi-Austempering Treatment

Abstract:

This study examines the fatigue crack propagation behaviour of AISI 4140 steel subjected to multi-austempering heat treatments. Tensile test and fatigue crack propagation (FCP) specimens were prepared in accordance with ASTM E8 and ASTM E647, respectively. Multi-austempering was carried out by heating the specimen to an austenite temperature for 10 min using an induction heating coil. The specimen was then immersed in a salt bath for each isothermal transformation time of 60 min at three austempering temperature levels from 312°C to 412°C with a temperature increase of 50°C. Tensile and fatigue crack growth tests were performed on both annealed and multi-austempered specimens. It is observed that the multi-austempering heat treatment significantly improves the tensile properties and the FCP properties of AISI 4140 steel. Microstructural observations indicate that the bainitic phase and the retained austenite increase the tensile strength and reduce the fatigue crack propagation rate (da/dN). It is found that the bainitic structures are an effective barrier in reducing fatigue crack propagation as the fatigue loading cycle increases

• Periodical: Materials Science Forum (Volume 1138)
• Pages: 13-19
• DOI: https://doi.org/10.4028/p-C7nuYg
• Online since: December 2024
• Authors: Sugiyanto Sugiyanto, David Tarade Saragih, Krisna Ahmad Khan, Samro Matanari, Slamet Sumardi, Harnowo Supriadi, Mohammad Badaruddin*
• Keywords: AISI 4140 Steel, Bainitic Structure, Fatigue Crack, Multi-Austempering, Retained Austenite

References

[1] M. Badaruddin, Sugiyanto, H. Wardono, Andoko, C.J. Wang, A.K. Rivai, Improvement of low-cycle fatigue resistance in AISI 4140 steel by annealing treatment, International Journal of Fatigue, 125 (2019) 406-417.

DOI: 10.1016/j.ijfatigue.2019.04.020

[2] M. Badaruddin, Sugiyanto, S. Sumardi, D. Asmi, Improvement of the fatigue crack growth resistance in AISI 4140 steel under single- and multi-austempering heat treatments, Results in Engineering, 21 (2024) 101814.

DOI: 10.1016/j.rineng.2024.101814

[3] M. Badaruddin, R.A. Ainnayah, R.N. Wijaya, S. Sumardi, Investigation of Austempering Effect on Fatigue Crack Growth of AISI 4140 Steel, Defect and Diffusion Forum, 431 (2024) 115-120.

DOI: 10.4028/p-5jjqqo

[4] M.M. Bilal, K. Yaqoob, M.H. Zahid, E.u. haq, W.H. Tanveer, A. Wadood, B. Ahmed, Effect of austempering conditions on the microstructure and mechanical properties of AISI 4340 and AISI 4140 steels, Journal of Materials Research and Technology, 8 (2019) 5194-5200.

DOI: 10.1016/j.jmrt.2019.08.042

[5] ASTM-E8M, Standard Test Methods for Tension Testing of Metallic Materials, West Conshohocken, PA, United States, DOI (2004).

[6] ASTM E647, Standard Test Method for Measurement of Fatigue Crack Growth Rates, ASTM International, West Conshohocken, PA, 2000.

[7] X.L. Wang, K.M. Wu, F. Hu, L. Yu, X.L. Wan, Multi-step isothermal bainitic transformation in medium-carbon steel, Scripta Materialia, 74 (2014) 56-59.

DOI: 10.1016/j.scriptamat.2013.10.019

[8] H.F. Lan, L.X. Du, Q. Li, C.L. Qiu, J.P. Li, R.D.K. Misra, Improvement of strength-toughness combination in austempered low carbon bainitic steel: The key role of refining prior austenite grain size, Journal of Alloys and Compounds, 710 (2017) 702-710.

DOI: 10.1016/j.jallcom.2017.03.024

[9] L. Oger, S. Vernier, P. Joly, J.M. Cloue, L. Laffont, E. Andrieu, Study of the relationships between microstructure and local mechanical properties in the ductile-to-brittle transition of a bainitic steel containing local segregations, Materials Today Communications, 37 (2023) 107436.

DOI: 10.1016/j.mtcomm.2023.107436

[10] J.G. Speer, D.V. Edmonds, F.C. Rizzo, D.K. Matlock, Partitioning of carbon from supersaturated plates of ferrite, with application to steel processing and fundamentals of the bainite transformation, Current Opinion in Solid State and Materials Science, 8 (2004) 219-237.

DOI: 10.1016/j.cossms.2004.09.003

[11] D. Birenis, Y. Ogawa, H. Matsunaga, O. Takakuwa, J. Yamabe, Ø. Prytz, A. Thøgersen, Hydrogen-assisted fatigue crack propagation in a pure BCC iron. Part II: Accelerated regime manifested by quasi-cleavage fracture at relatively high stress intensity range values, MATEC Web Conf., 165 (2018) 03010.

DOI: 10.1051/matecconf/201816503010
