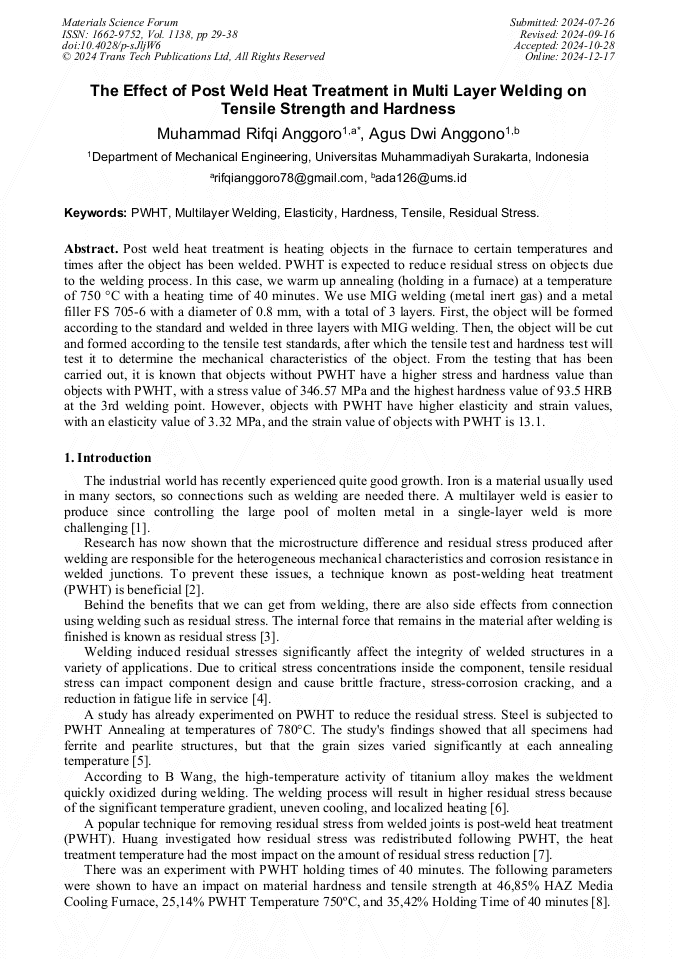

The Effect of Post Weld Heat Treatment in Multi Layer Welding on Tensile Strength and Hardness

Abstract:

Post weld heat treatment is heating objects in the furnace to certain temperatures and times after the object has been welded. PWHT is expected to reduce residual stress on objects due to the welding process. In this case, we warm up annealing (holding in a furnace) at a temperature of 750 °C with a heating time of 40 minutes. We use MIG welding (metal inert gas) and a metal filler FS 705-6 with a diameter of 0.8 mm, with a total of 3 layers. First, the object will be formed according to the standard and welded in three layers with MIG welding. Then, the object will be cut and formed according to the tensile test standards, after which the tensile test and hardness test will test it to determine the mechanical characteristics of the object. From the testing that has been carried out, it is known that objects without PWHT have a higher stress and hardness value than objects with PWHT, with a stress value of 346.57 MPa and the highest hardness value of 93.5 HRB at the 3rd welding point. However, objects with PWHT have higher elasticity and strain values, with an elasticity value of 3.32 MPa, and the strain value of objects with PWHT is 13.1.

• Periodical: Materials Science Forum (Volume 1138)
• Pages: 29-38
• DOI: https://doi.org/10.4028/p-sJljW6
• Online since: December 2024
• Authors: Muhammad Rifqi Anggoro*, Agus Dwi Anggono
• Keywords: Elasticity, Hardness, Multilayer Welding, PWHT, Residual Stress, Tensile

References

[1] H. Jian, Y. Wang, X. Yang, X. Lei, and C. Mi, "Effect of Multilayer and Multi-pass Welding on Microstructure and Properties of Al–Mg Alloy Welding Joint," Metallography, Microstructure, and Analysis, vol. 9, no. 3, p.428–437, Jun. 2020.

DOI: 10.1007/s13632-020-00646-1

[2] D. Zhao, F. Liu, Y. B. Tan, W. Shi, and S. Xiang, "Improving the strength-ductility synergy and corrosion resistance of Inconel 718/316L dissimilar laser beam welding joint via post-weld heat treatment," Journal of Materials Research and Technology, vol. 26, p.71–87, Sep. 2023.

DOI: 10.1016/j.jmrt.2023.07.202

[3] Z. Sun and X. Yu, "Prediction of welding residual stress and distortion in multi-layer butt-welded 22SiMn2TiB steel with LTT filling metal," Journal of Materials Research and Technology, vol. 18, p.3564–3580, May 2022.

DOI: 10.1016/j.jmrt.2022.04.031

[4] C. Heinze, C. Schwenk, and M. Rethmeier, "Numerical calculation of residual stress development of multi-pass gas metal arc welding," J Constr Steel Res, vol. 72, p.12–19, May 2012.

DOI: 10.1016/j.jcsr.2011.08.011

[5] J. Li et al., "Effect of annealing temperature on the evolution of microstructure, texture, and mechanical properties of hot-rolled 12Cr-ODS steel," Journal of Materials Research and Technology, vol. 30, p.4800–4812, May 2024.

DOI: 10.1016/j.jmrt.2024.04.204

[6] B. Wang, L. Zhou, Y. Cao, P. Xue, and L. Wu, "Analysis of residual stress relief for Ti62A alloy welded joints by post weld heat treatment considering creep effect," Journal of Materials Research and Technology, vol. 24, p.7462–7474, May 2023.

DOI: 10.1016/j.jmrt.2023.05.057

[7] B. Huang, J. Liu, S. Zhang, Q. Chen, and L. Chen, "Effect of post-weld heat treatment on the residual stress and deformation of 20/0Cr18Ni9 dissimilar metal welded joint by experiments and simulations," Journal of Materials Research and Technology, vol. 9, no. 3, p.6186–6200, 2020.

DOI: 10.1016/j.jmrt.2020.04.022

[8] G. TNIGUCHI and K. YAMASHITA, "Effects of Post Weld Heat Treatment (PWHT) Temperature on Mechanical Properties of Weld Metals for High-Cr Ferritic Heat-Resistant Steel," KOBELCO TECHNOLOGY, p.33–39, 2013.

DOI: 10.1007/bf03321150

[9] E. GÜNAY, Elasticity of Materials-Basic Principles and Design of Structures. 2019.

[10] T. Siagian, I. Siregar, and H. Lubis, "Characteristics of St.37 Steel Materials with Temperature and Time on Heat Treatment Test using Furnace," 2018. [Online]. Available: www.ijisrt.com49
