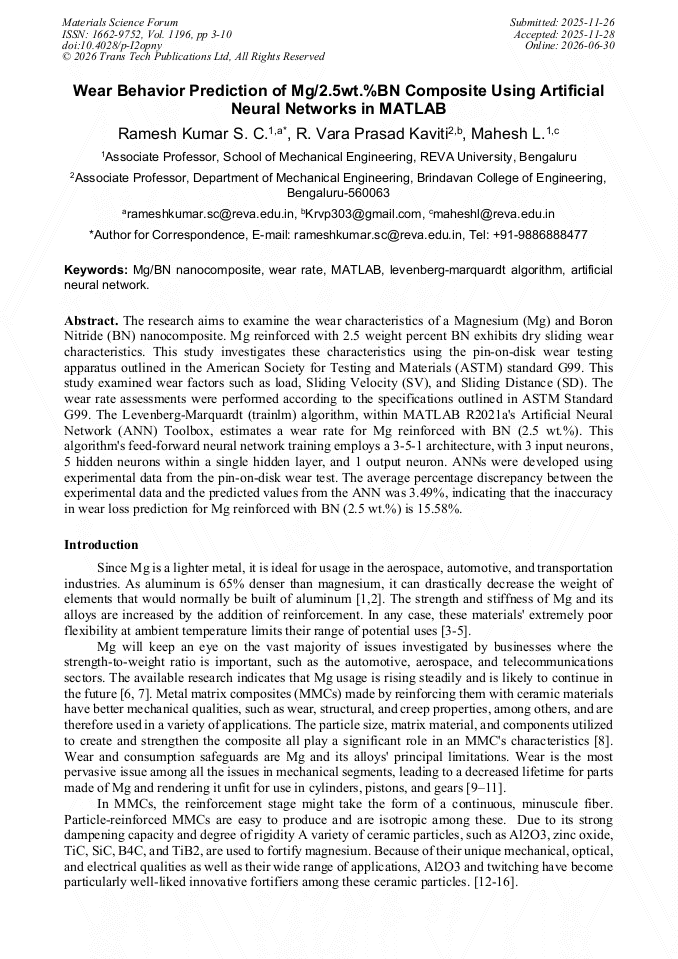

Wear Behavior Prediction of Mg/2.5wt.%BN Composite Using Artificial Neural Networks in MATLAB

Abstract:

The research aims to examine the wear characteristics of a Magnesium (Mg) and Boron Nitride (BN) nanocomposite. Mg reinforced with 2.5 weight percent BN exhibits dry sliding wear characteristics. This study investigates these characteristics using the pin-on-disk wear testing apparatus outlined in the American Society for Testing and Materials (ASTM) standard G99. This study examined wear factors such as load, Sliding Velocity (SV), and Sliding Distance (SD). The wear rate assessments were performed according to the specifications outlined in ASTM Standard G99. The Levenberg-Marquardt (trainlm) algorithm, within MATLAB R2021a's Artificial Neural Network (ANN) Toolbox, estimates a wear rate for Mg reinforced with BN (2.5 wt.%). This algorithm's feed-forward neural network training employs a 3-5-1 architecture, with 3 input neurons, 5 hidden neurons within a single hidden layer, and 1 output neuron. ANNs were developed using experimental data from the pin-on-disk wear test. The average percentage discrepancy between the experimental data and the predicted values from the ANN was 3.49%, indicating that the inaccuracy in wear loss prediction for Mg reinforced with BN (2.5 wt.%) is 15.58%.

• Periodical: Materials Science Forum (Volume 1196)
• Pages: 3-10
• DOI: https://doi.org/10.4028/p-I2opny
• Online since: June 2026
• Authors: S. C. Ramesh Kumar*, R. Vara Prasad Kaviti, L. Mahesh
• Keywords: Artificial Neural Network, Levenberg-Marquardt Algorithm, MATLAB, Mg/BN Nanocomposite, Wear Rate

References

[1] Lim CYH et al. Wear of magnesium composites reinforced with nano-sized alumina particulates. Wear 2005;259:620–5.

DOI: 10.1016/j.wear.2005.02.006

[2] Goh CS et al. Properties and deformation behaviour of Mg–Y2O3 nano-composites. Acta Mater 2007;55:5115–21.

[3] Kainer K.U et al. Mg Alloys and Technology; Wiley-VCH: Weinheim, Germany, 2003; p.1–22.

[4] Lloyd, D.J. Particle reinforced aluminum and magnesium matrix composites. Int. Mater. Rev.1994, 39, 1–23.

[5] Dieter, G.E. Mechanical Metallurgy; McGraw-Hill: New York, USA, 1986.

[6] Shanthi M et al. Sliding wear behavior of calcium containingAZ31B/Al2O3 nanocomposites. Wear 2010;269:473–9.

DOI: 10.1016/j.wear.2010.04.034

[7] Cicek Bunyamin et al. Wear behaviors of Pb added Mg–Al–Si composites reinforced with in situ Mg2Si particles. Mater Design 2013;50:929–35.

DOI: 10.1016/j.matdes.2013.03.097

[8] Manoj Kumar BV et al. The role of Tribochemistry on fretting wear of Mg–SiC particulate composite. Compos Part:A 2005;36:13–23.

[9] AjithKumar KK et al. Dry sliding wear behavior of Mg–Si alloys. Wear 2013;303:56–64.

DOI: 10.1016/j.wear.2013.02.020

[10] Yang ZR et al. Evaluation of wear characteristics of Al3Tip/Mg composite. Mater Charact 2010;61:554–63.

[11] Won Bae Lee et al. Microstructures and wear property of friction stir welded AZ91 Mg/SiC particle reinforced composite. Composite Science Technology 2006; 66: 1513–20.

DOI: 10.1016/j.compscitech.2005.11.023

[12] Hassan S et al. Development of high-performance Mg nano-composite using nano-Al2O3as reinforcement. Material Science Engineering A 2005;392:163–8

[13] Tun K et al. Investigation into tensile and compressive responses of Mg–ZnO composites. Material Science Technology 2012;28:582–8.

[14] Saravanan RA et al. Fabrication and characterization of pure magnesium-30 vol.% SiCp particle composite. Material Science Engg A 2000;276:108–16.

[15] Selvam B et al. Dry sliding wear behavior of zinc oxide reinforced magnesium matrix nano-composites. Mater Des 2014;58:475–81.

DOI: 10.1016/j.matdes.2014.02.006

[16] D. Jeyasimman, R. Narayanasamy, R. Ponalagusamy, V. Anandakrishnan, M. Kamaraj, The effects of various reinforcements on dry sliding wear behavior of AA 6061 nanocomposites. Mater Des 2014.

DOI: 10.1016/j.matdes.2014.08.039

[17] Thein Maung Aye et al. Mechanical properties of nano-structured Mg–5 wt% Al–x wt% AlN composite synthesized from Mg chips. Compos Struct 2006;75:206–12.

DOI: 10.1016/j.compstruct.2006.04.059

[18] Basavarajappa Set al. Application of Taguchi techniques to study dry sliding wear behavior of MMC. Mater Des 2007;28:1393–8.

[19] Taltavull C et al. Dry sliding wear behavior of AM50B Mg alloy. Mater Des 2014;56:549–56.

DOI: 10.1016/j.matdes.2013.12.015

[20] Rao RN et al. Effect of sliding distance on the wear and friction behavior of as cast and heat-treated Al–SiCp composites. Mater Des 2011;32:3051–8.

DOI: 10.1016/j.matdes.2011.01.033

[21] Deuis RL et al. Dry sliding wear of Al composites-A review. Compos Sci Technol 1997; 57: 415–35.

[22] Kwok JKM et al. High-speed tribological properties of some Al/SiCp composites II wear mechanisms. Compos Sci Technol 1999;59:65–75.

DOI: 10.1016/s0266-3538(98)00067-0

[23] S.D. Saravanana et al. Prediction of Tribological Behaviour of Rice Husk Ash Reinforced Al Alloy Matrix Composites Using ANN. Russian Journal of Non-Ferrous Metals; 2015;56;97–106.

DOI: 10.3103/s1067821215010174

[24] R Vara Prasad Kaviti, et al. Investigation on dry sliding wear behavior of Mg/BN nanocomposites. 2018.
