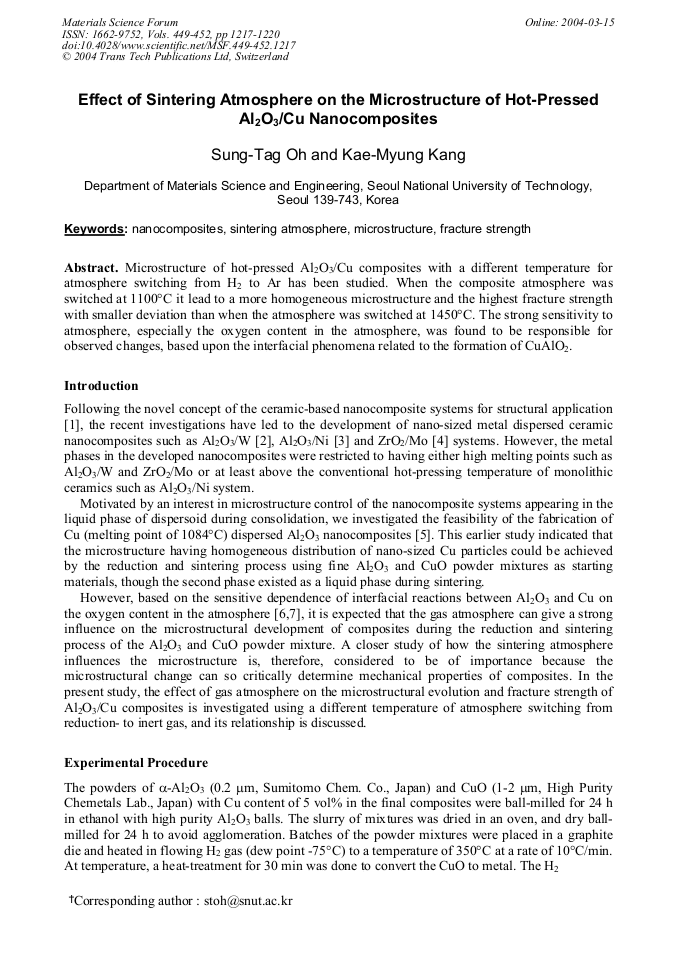

Effect of Sintering Atmosphere on the Microstructure of Hot-Pressed Al₂O₃/Cu Nanocomposites

Abstract:

Microstructure of hot-pressed Al2O3/Cu composites with a different temperature for atmosphere switching from H2 to Ar has been studied. When the composite atmosphere was switched at 1100°C it lead to a more homogeneous microstructure and the highest fracture strength with smaller deviation than when the atmosphere was switched at 1450°C. The strong sensitivity to atmosphere, especially the oxygen content in the atmosphere, was found to be responsible for observed changes, based upon the interfacial phenomena related to the formation of CuAlO2

• Periodical: Materials Science Forum (Volumes 449-452)
• Pages: 1217-1220
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.449-452.1217
• Online since: March 2004
• Authors: Sung Tag Oh, Kae Myung Kang
• Keywords: Fracture Strength, Microstructure, Nanocomposite, Sintering Atmosphere

References

[1] K. Niihara: J. Ceram. Soc. Jpn. Vol. 99 (1991), p.974.

[2] T. Sekino and K. Niihara: Nanostruct. Mater. Vol. 6 (1995), p.663.

[3] T. Sekino, T. Nakajima, S. Ueda and K. Niihara: J. Am. Ceram. Soc. Vol. 80 (1997), p.1139.

[4] M. Nawa, K. Yamazaki, T. Sekino and K. Niihara: Mater. Letters Vol. 20 (1994), p.299.

[5] S. -T. Oh, T. Sekino and K. Niihara: J. Europ. Ceram. Soc. Vol. 18 (1998), p.31.

[6] T.E. O`Brien and A.C.D. Chaklader: J. Am. Ceram. Soc. Vol. 57 (1974), p.329.

[7] K.T. Jacob and C.B. Alcock: J. Am. Ceram. Soc. Vol. 58 (1975), p.192.

[8] C.S. Smith: Trans. Metal. Soc. AIME Vol. 175 (1948), p.15.

[9] B.C. Allen and W.D. Kingery: Trans. Metal. Soc. AIME Vol. 215 (1959), p.30.

[10] B. Gallois and H.P. Lupis: Metall. Trans. B Vol. 12B (1981), p.549.

[11] W.D. Kingery, H.K. Bowen and D.R. Uhlmann: Introduction to Ceramics (John Wiley and Sons, New York 1976).

[12] S.T. Kim and C.H. Kim: J. Mater. Sci. Vol. 27 (1992), p. (2061).
