Microstructure at/around Interface between Plasma-Sprayed Hydroxyapatite and Ti Alloy

Abstract:

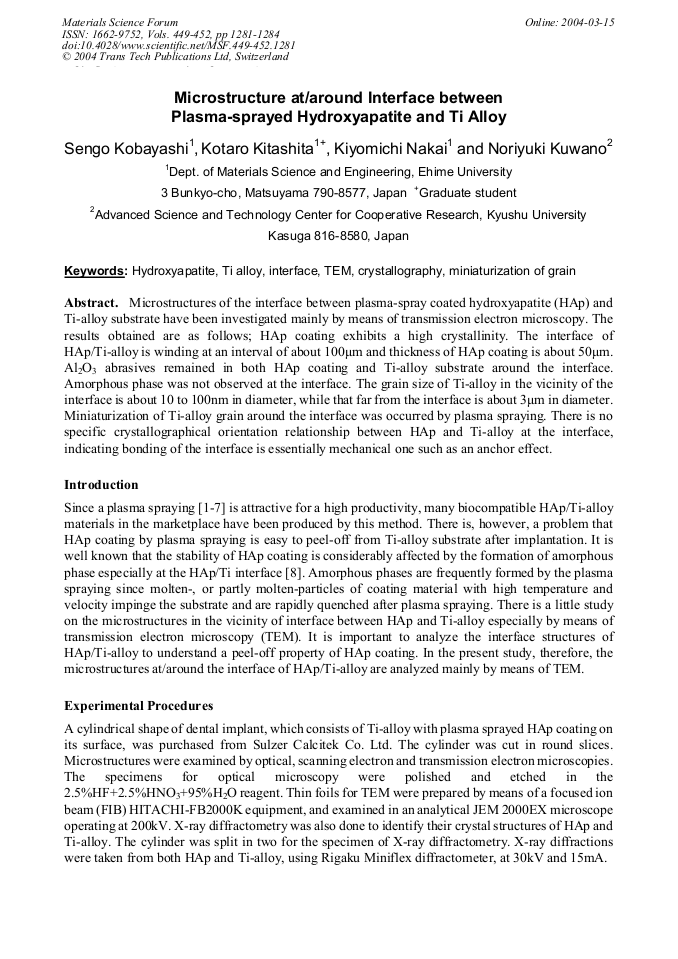

Article Preview

Microstructures of the interface between plasma-spray coated hydroxyapatite (HAp) and Ti-alloy substrate have been investigated mainly by means of transmission electron microscopy. The results obtained are as follows; HAp coating exhibits a high crystallinity. The interface of HAp/Ti-alloy is winding at an interval of about 100µm and thickness of HAp coating is about 50µm. Al2O3 abrasives remained in both HAp coating and Ti-alloy substrate around the interface. Amorphous phase was not observed at the interface. The grain size of Ti-alloy in the vicinity of the interface is about 10 to 100nm in diameter, while that far from the interface is about 3µm in diameter. Miniaturization of Ti-alloy grain around the interface was occurred by plasma spraying. There is no specific crystallographical orientation relationship between HAp and Ti-alloy at the interface, indicating bonding of the interface is essentially mechanical one such as an anchor effect.

Info:

Periodical:

Materials Science Forum (Volumes 449-452)

Edited by:

S.-G. Kang and T. Kobayashi

Pages:

1281-1284

Citation:

S. Kobayashi et al., "Microstructure at/around Interface between Plasma-Sprayed Hydroxyapatite and Ti Alloy", Materials Science Forum, Vols. 449-452, pp. 1281-1284, 2004

Online since:

March 2004

Export:

Price:

$38.00

[1] E. Park, R. A. Condrate Sr, D. T. Hoelzer and G. S. Fischman: J. Mater. Sci. Mater. Med. Vol. 9 (1998), p.643.

[2] F. J. Garcia-Sanz, M. B. Mayor, J. L. Arias, J. Pou, B. Leon and M. Perez-Amor: J. Mater. Sci. Mater. Med. Vol. 8 (1997), p.861.

[3] J. Vogel, C. Rüssel, G. Günther, P. Hartmann, F. Vizethum and N. Bergner: J. Mater. Sci. Mater. Med. Vol. 7 (1996), p.495.

[4] J. Weng, X. –G. Liu, X. –D. Li, and X. –D. Zhang: Biomaterials Vol. 16 (1995), p.39.

[5] R. Mcpherson, N. Gane and T. J. Bastow: J. Mater. Sci. Mater. Med. Vol. 6 (1995), p.327.

[6] C. Y. Yang, B. C. Wang, E. Chang and J. D. Wu: J. Mater. Sci. Mater. Med. Vol. 6 (1995), p.249.

[7] J. H. Chern Lin, M. L. Liu and C. P. Ju: J. Mater. Sci. Mater. Med. Vol. 5 (1994), p.279.

[8] M. Weinlaender, J. Beumer III, E. B. Keney, P. K. Moy and F. Adar: J. Mater. Sci. Mater. Med. Vol. 3 (1992), p.397.

[9] D. Matejka and B. Benko: Plasma Spraying of Metallic and Ceramic Materials (John Wiley & Sons Ltd, Baffins Lane, Chichester, West Sussex, PO19 1UD, UK 1989).
