Spray Casting of Al-25Si Alloy and Hot Deformation Behavior

Abstract:

Article Preview

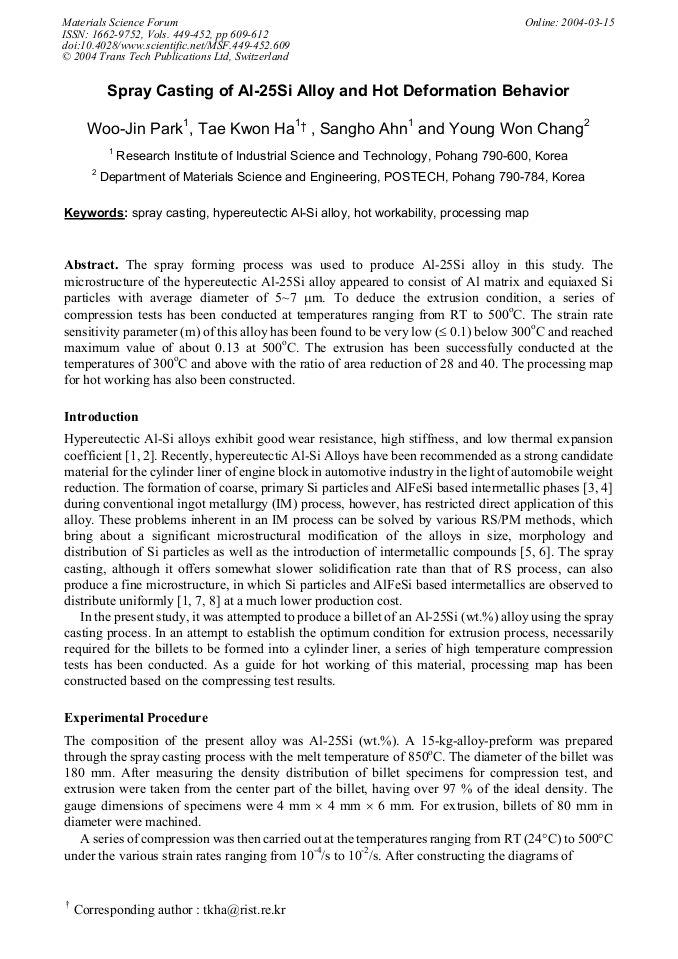

The spray forming process was used to produce Al-25Si alloy in this study. The microstructure of the hypereutectic Al-25Si alloy appeared to consist of Al matrix and equiaxed Si particles with average diameter of 5~7 µm. To deduce the extrusion condition, a series of compression tests has been conducted at temperatures ranging from RT to 500oC. The strain rate sensitivity parameter (m) of this alloy has been found to be very low ( ≤0.1) below 300oC and reached maximum value of about 0.13 at 500°C. The extrusion has been successfully conducted at the temperatures of 300°C and above with the ratio of area reduction of 28 and 40. The processing map for hot working has also been constructed.

Info:

Periodical:

Materials Science Forum (Volumes 449-452)

Edited by:

S.-G. Kang and T. Kobayashi

Pages:

609-612

Citation:

W. J. Park et al., "Spray Casting of Al-25Si Alloy and Hot Deformation Behavior", Materials Science Forum, Vols. 449-452, pp. 609-612, 2004

Online since:

March 2004

Export:

Price:

$38.00

[1] J. Zhou, J. Duszczyk and B. M. Lorevaar, J. Mater. Sci., 26 (1991), p.5275.

[2] H. Sano, N. Tokinano, Y. Ohkubo and K. Sibue, Powder Metallurgy, 36 (1993), p.250.

[3] A. M. Samuel, F. H. Samuel and H. W. Doty, J. Mater. Sci., 31 (1996), p.5529.

[4] J. -S. Lee and H. Ra, J. Korean Inst. of Met. & Mater., 34 (1996), p.1346.

[5] W. -W. Park, B. -S. You and N. J. Kim, Mater. & Design, 17 (1996), p.255.

[6] T. Satoh, K. Okimoto and S. Nishida, J. Mater. Pro. Tech., 68 (1997), p.221.

[7] J. L. Estrada and J. Duszczyk, J. Mater. Sci., 25 (1990), p.1381.

[8] Y. Wu, W. A. Cassada and E. J. Lavernia, Metall. Mater. Trans. A, 26A (1995), p.1235.

[9] O. D. Sherby, and J. Wadsworth, Prog. Mater. Sci., 33 (1989), p.169.

[10] W. Johnson, J. Inst. Metals, 85 (1956), p.403.

[11] R. J. Wilcox and P. H. Witton, J. Inst. Metals, 87 (1958), p.289.

[12] Y.V.R.K. Prasad and S. Sasidhara, Hot Working Guide-acompendium of precessing maps, (Materials Park, OH, ASM Int., 1997). 0. 11 0. 14 0. 18 0. 21 0. 14 0. 11 0. 25 0. 14 0. 25 0. 11 0. 28 0. 070 0. 070 0. 28 0. 070 -3. 5 -3. 0 -2. 5 -2. 0 -1. 5 -1. 0 200 250 300 350 400 450 500 ���� = 0. 2 Temperature ( o C) log strain rate (s -1 ).

Fetching data from Crossref.
This may take some time to load.
