Effects of the Rotating Speed of Centrifugal Machine on the Gradient Structure and Properties of Heavy Cross-Sectional WCP/Fe-C Composites

Abstract:

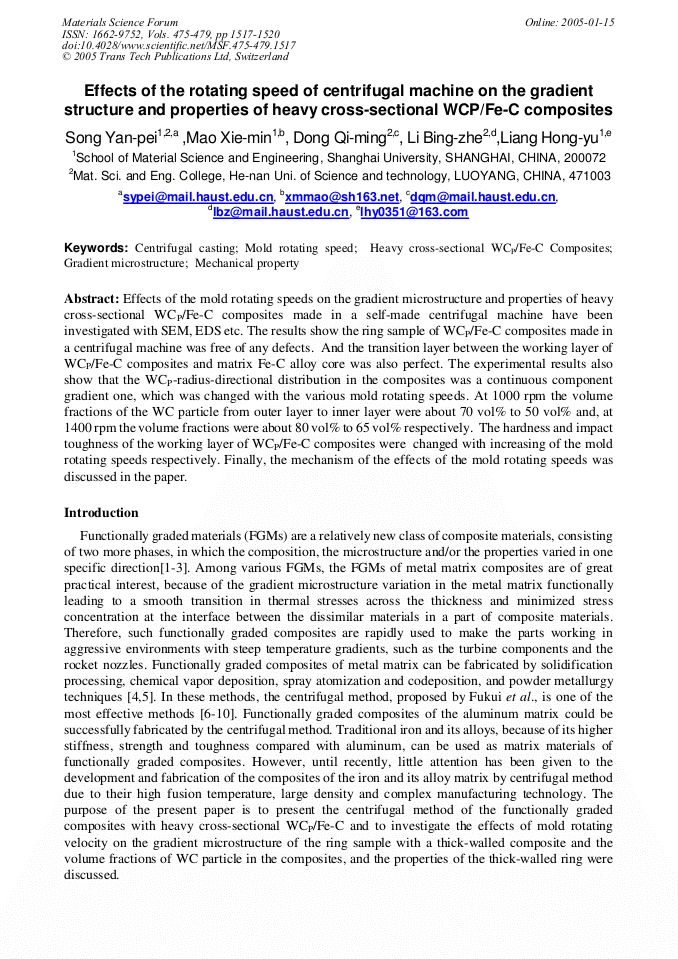

Effects of the mold rotating speeds on the gradient microstructure and properties of heavy cross-sectional WCP/Fe-C composites made in a self-made centrifugal machine have been investigated with SEM, EDS etc. The results show the ring sample of WCP/Fe-C composites made in a centrifugal machine was free of any defects. And the transition layer between the working layer of WCP/Fe-C composites and matrix Fe-C alloy core was also perfect. The experimental results also show that the WCP-radius-directional distribution in the composites was a continuous component gradient one, which was changed with the various mold rotating speeds. At 1000 rpm the volume fractions of the WC particle from outer layer to inner layer were about 70 vol% to 50 vol% and, at 1400 rpm the volume fractions were about 80 vol% to 65 vol% respectively. The hardness and impact toughness of the working layer of WCP/Fe-C composites were changed with increasing of the mold rotating speeds respectively. Finally, the mechanism of the effects of the mold rotating speeds was discussed in the paper.

• Periodical: Materials Science Forum (Volumes 475-479)
• Pages: 1517-1520
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.475-479.1517
• Online since: January 2005
• Authors: Yan Pei Song, Xie Min Mao, Qi Ming Dong, Bing Zhe Li, Hong Yu Liang
• Keywords: Centrifugal Casting, Gradient Microstructure, Heavy Cross-Sectional WC_p/Fe-C Composites, Mechanical Property, Mold Rotating Speed

References

[1] Hirai T. Functional gradient material . Mater Sci Technol 1996: 17B: 293-341.

[2] Suresh S. Mortensen A. Fundamentals of functionally graded materials, processing and thermo-mechanical behaviour of graded metals and metal-ceramic composites. London: IOM Communications Ltd, (1998).

[3] Miyamoto Y, Kaysser WA, Rabin BH, Kawasaki A, Ford RG, editors. Functionally graded materials, design, processing and applications. Boston: Kluwer Academic Publishers, (1999).

DOI: 10.1007/978-1-4615-5301-4_7

[4] A. Mortensen, S. Suresh, Int. Mater. Rev. 40(1995) 239.

[5] S. Ho, E.J. Lavernia, Metall. Mater. Trans. A 27A(1996) 3241.

[6] Fukui Y, Fundamental investigation of functionally gradient material manufacturing system using centrifugal force. JSME Int J Series Ⅲ 1991; 34: 144-148.

DOI: 10.1299/jsmec1988.34.144

[7] Fukui Y, Watanabe Y, : Metal Mater Trans A 1996, 27A, p, 4145.

[8] Watanabe Y, Yamanaka N, Fukui Y.: Composites Part A 1998, 29A, p, 595.

[9] Matsuda K, Watanabe Y.: Ceramic Trans Vol. 114(2001), p, 491.

[10] Watanabe Y, Fukui Y. : Aluminum Trans 2000, 2, p, 195.

[11] Ichino K., Kotaoka Y. and Koseki T.: KAWASAKI STEEL TECHNICAL REPORT, NO. 37, Oct. 1997, p, 13. 48 54 60 66 72 78 84 0 4 8 12 16 Impact toughness of composites (J/cm 2 ) Radius of WCP/Fe-C composites thick-walled ring (mm) at 1400rpm at 1000rpm 48 54 60 66 72 78 84 60 65 70 75 80 85 90 Hardness of composites (HRA) Radius of WCP/Fe-C composites thick-walled ring (mm) at 1000rpm at 1400rpm.
