Deformation Behavior of Ti-6Al-4V and Ti-6.85Al-1.6V Alloy with a Globular Microstructure

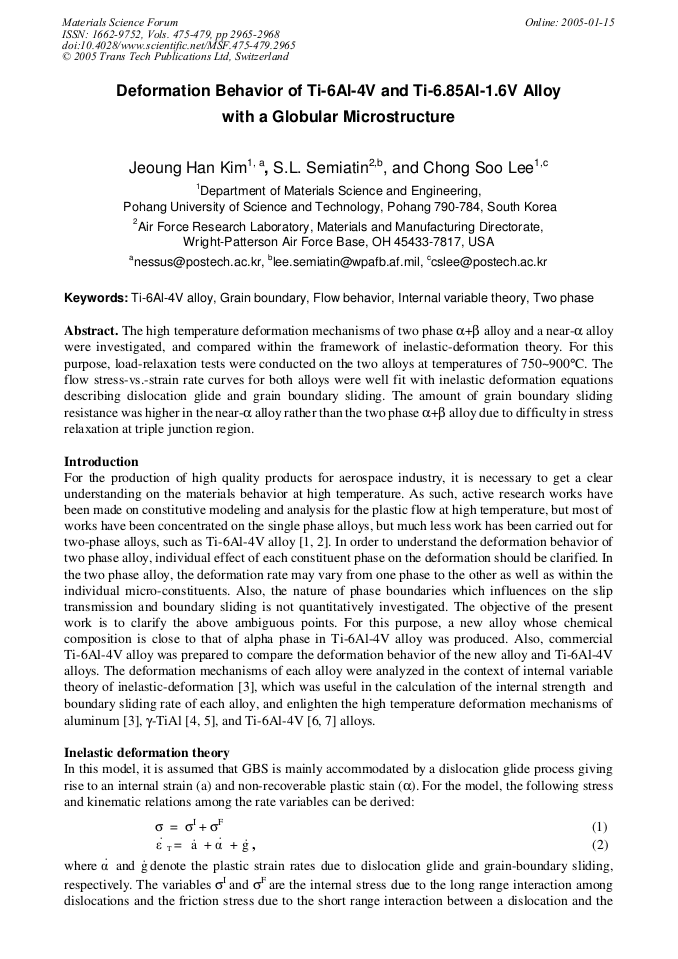

The high temperature deformation mechanisms of two phase a+b alloy and a near-a alloy were investigated, and compared within the framework of inelastic-deformation theory. For this purpose, load-relaxation tests were conducted on the two alloys at temperatures of 750~900°C. The flow stress-vs.-strain rate curves for both alloys were well fit with inelastic deformation equations describing dislocation glide and grain boundary sliding. The amount of grain boundary sliding resistance was higher in the near-a alloy rather than the two phase a+b alloy due to difficulty in stress relaxation at triple junction region.
Z.Y. Zhong, H. Saka, T.H. Kim, E.A. Holm, Y.F. Han and X.S. Xie
J. H. Kim et al., "Deformation Behavior of Ti-6Al-4V and Ti-6.85Al-1.6V Alloy with a Globular Microstructure", Materials Science Forum, Vols. 475-479, pp. 2965-2968, 2005
