Evaluation of Grain Boundary Effect on the Strength of Fe-C Martensitic Steels through Nanoindentation Technique

Article Preview

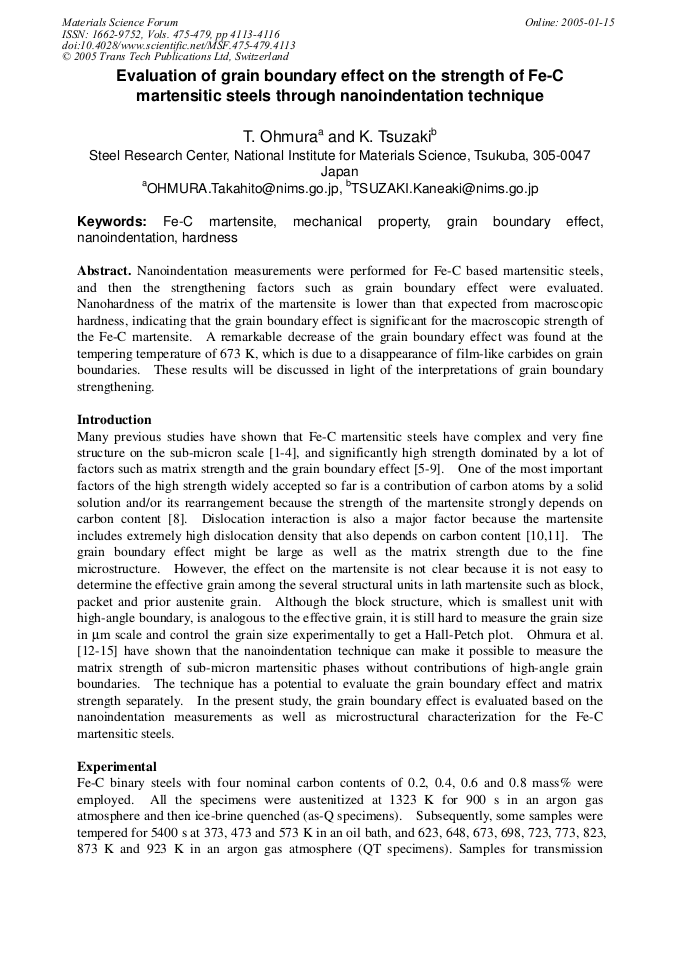

Abstract:

Nanoindentation measurements were performed for Fe-C based martensitic steels, and then the strengthening factors such as grain boundary effect were evaluated. Nanohardness of the matrix of the martensite is lower than that expected from macroscopic hardness, indicating that the grain boundary effect is significant for the macroscopic strength of the Fe-C martensite. A remarkable decrease of the grain boundary effect was found at the tempering temperature of 673 K, which is due to a disappearance of film-like carbides on grain boundaries. These results will be discussed in light of the interpretations of grain boundary strengthening.

You might also be interested in these eBooks

Info:

Periodical:

Materials Science Forum (Volumes 475-479)

Pages:

4113-4116

Citation:

Online since:

January 2005

Export:

Price:

Permissions CCC:

Permissions PLS:

Сopyright:

© 2005 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

[1] A.R. Marder and G. Krauss: Trans. ASM Vol. 60 (1967), p.651.

Google Scholar

[2] J.M. Marder and A.R. Marder: Trans. ASM Vol. 62 (1969), p.1.

Google Scholar

[3] A.R. Marder and G. Krauss, Trans. ASM Vol. 62 (1969), p.957.

Google Scholar

[4] T. Maki K. Tsuzaki and I. Tamura: Trans ISIJ Vol. 20 (1980), p.207.

Google Scholar

[5] W.C. Leslie and R.J. Sober: Trans. ASM Vol. 60 (1967), p.459.

Google Scholar

[6] L. -A. Norstrom: Scand. J. Metall. Vol. 5 (1976), p.159.

Google Scholar

[7] F.B. Pickering: Hardenability Concepts with Applications to Steel (AIME, USA, 1978).

Google Scholar

[8] G. Krauss: Hardenability Concepts with Applications to Steel (AIME, USA, 1978).

Google Scholar

[9] G. Krauss: Mater. Sci. Eng. Vol. A273-275 (1999), p.40.

Google Scholar

[10] P.M. Kelly and M. Kehoe: Suppl. Trans. JIM Vol. 17 (1976), p.399.

Google Scholar

[11] T. Furuhara, S. Morito and T. Maki: J. Phys. IV Vol. 112 (2003), p.255.

Google Scholar

[12] T. Ohmura, K. Tsuzaki and S. Matsuoka: Scripta Mater. Vol. 45 (2001), p.889.

Google Scholar

[13] T. Ohmura, K. Tsuzaki and S. Matsuoka: Phil. Mag. A Vol. 82 (2002), p. (1903).

Google Scholar

[14] T. Ohmura, T. Hara and K. Tsuzaki: J. Mater. Res. Vol. 18 (2003), p.1465.

Google Scholar

[15] T. Ohmura, T. Hara and K. Tsuzaki: Scripta Mater. Vol. 49 (2003), p.1157.

Google Scholar

[16] W.C. Oliver and G.M. Pharr: J. Mater. Res. Vol. 7 (1992), p.1564.

Google Scholar

[17] J. D. Eshelby, F.C. Frank and F.R.N. Nabaro: Phil. Mag. Vol. 42 (1951), 351.

Google Scholar

[18] A.N. Stroh: Proc. Roy. Soc. Vol. 223 (1954), 404. Fig. 4 Schematic representation of a Hall-Petch plot for the tempered martensitic steels d -1/2 σ (Hn~σ0 )573K (Hn~σ0 )723K (Hv~σf )573K (Hv~σf )723K k723K k573K 0 0.

Google Scholar
