Corrosion of Ni-W Coatings in SO2 Atmosphere between 500 and 700 °C

Dong Bok Lee; J.H. Ko

doi:10.4028/www.scientific.net/MSF.486-487.169

Paper Titles

Surface Characteristics of Ni-Diamond Composite Powders by Electroless Plating Method
p.153

Self-Lubricating Composite Coating on Air Foil Bearing Shaft by Hollow Cathode Plasma Jet
p.157

Surface Coating of Reactive Layer with Inner Nano-Pores on Lantanium Gallium Based Oxide
p.161

Oxidation of SiOC Composite Having Dispersoids of Mo_4.8Si₃C_0.6 and MoSi₂
p.165

Corrosion of Ni-W Coatings in SO₂ Atmosphere between 500 and 700 °C
p.169

Fluxless Brazing of Al6061 Alloys Using Ag-28Cu Insert
p.173

Phosphate Recovery from Water as Hydroxyapatite with Activated Oystershell
p.177

Mechanical and Thermal Properties of Silicon Nitride Hot Pressed with Adding Rare-Earth Oxides
p.181

Stress Concentration Regions in Ceramic Ball Heads for Total Hip Replacement Considering Trauma-Like Loading
p.185

HomeMaterials Science ForumMaterials Science Forum Vols. 486-487Corrosion of Ni-W Coatings in SO2 Atmosphere...

Corrosion of Ni-W Coatings in SO₂ Atmosphere between 500 and 700 °C

Abstract:

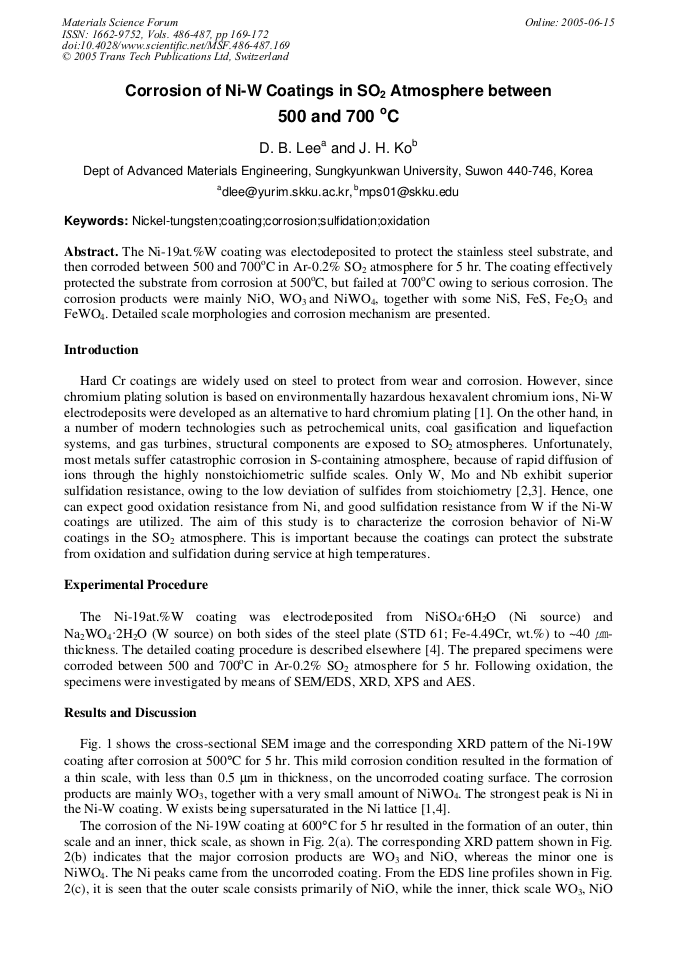

The Ni-19at.%W coating was electodeposited to protect the stainless steel substrate, and then corroded between 500 and 700oC in Ar-0.2% SO2 atmosphere for 5 hr. The coating effectively protected the substrate from corrosion at 500oC, but failed at 700oC owing to serious corrosion. The corrosion products were mainly NiO, WO3 and NiWO4, together with some NiS, FeS, Fe2O3 and FeWO4. Detailed scale morphologies and corrosion mechanism are presented.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Materials Science Forum (Volumes 486-487)

Pages:

169-172

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.486-487.169

Citation:

Cite this paper

Online since:

June 2005

Authors:

Dong Bok Lee, J.H. Ko

Keywords:

Coating, Corrosion, Nickel-Tungsten, Oxidation, Sulfidation

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] T. Yamasaki, P. Schloβmacher, K. Enrlich, Y. Ogino, NanoStruct. Mater., Vol. 10 (1998) p.375.

Google Scholar

[2] L. Czerski, S. Mrowec, T. Werber, J. Electrochem. Soc., Vol. 109 (1962) p.273.

Google Scholar

[3] K. N. Strafford, P. K. Datta, A. F. Hampton, F. Starr, W. Y. Chan, Corr. Sci., Vol. 29 (1989) p.775.

Google Scholar

[4] D. B. Lee, J. H. Ko, S. C. Kwon, Mater. Sci. Eng., Vol. A380 (2004) pp.73-78.

Google Scholar

[5] R. Peraldi, D. Monceau, B. Pieraggi, Oxid. Met., Vol. 58 (2002) p.275.

Google Scholar

[10] 20 30 40 50 60.

Google Scholar

[10] [20] [30] [40] [50] [60] [70] Sputter Time (min) Concentration (at%) O Ni W Pt Ni.

Google Scholar

[10] 20 30 40 50 60.

Google Scholar

[10] [20] [30] [40] [50] [60] [70] Sputter Time (min) Concentration (at%) O Ni W Pt Ni Fig. 5. AES spectrum Ni-19W coating after corrosion in Ar-0. 2%SO2 at 700°C for 2 min. 40μm substrate epoxy scale 40μm substrate epoxy scale Fig. 6. Cross-sectional SEM image of stainless steel substrate after corrosion at 700°C for 5 hr in Ar0. 2%SO2.

Google Scholar
