Ferroelectric Ceramics Related to BaTiO3 for Z5U Multilayer Capacitors

Abstract:

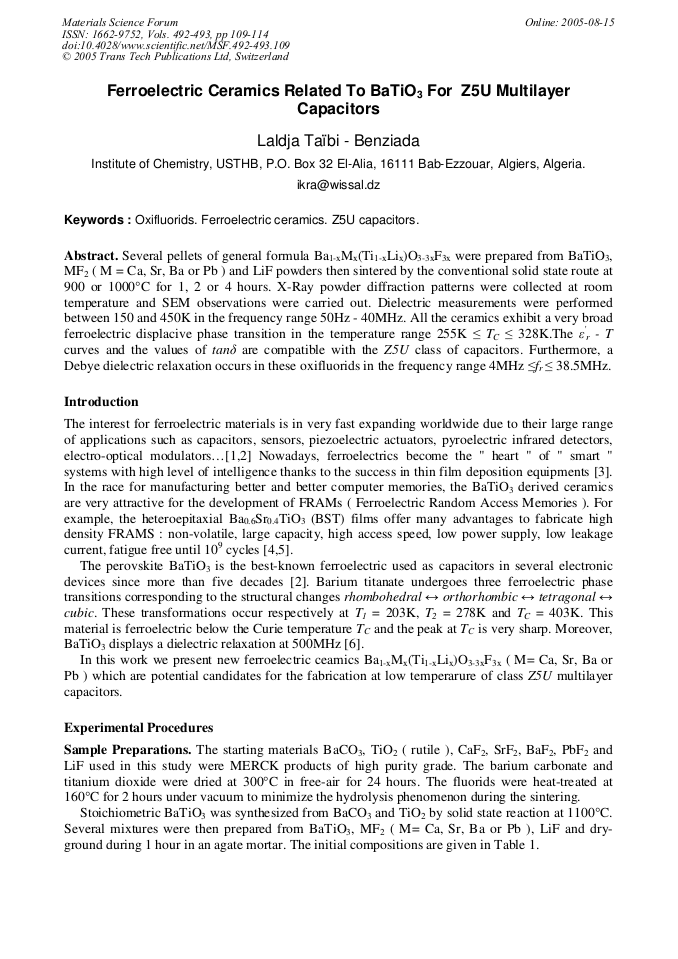

Article Preview

Several pellets of general formula Ba1-xMx(Ti1-xLix)O3-3xF3x were prepared from BaTiO3, MF2 ( M = Ca, Sr, Ba or Pb ) and LiF powders then sintered by the conventional solid state route at 900 or 1000°C for 1, 2 or 4 hours. X-Ray powder diffraction patterns were collected at room temperature and SEM observations were carried out. Dielectric measurements were performed between 150 and 450K in the frequency range 50Hz - 40MHz. All the ceramics exhibit a very broad ferroelectric displacive phase transition in the temperature range 255K ≤ TC ≤ 328K.The ε' r - T curves and the values of tanδ are compatible with the Z5U class of capacitors. Furthermore, a Debye dielectric relaxation occurs in these oxifluorids in the frequency range 4MHz ≤fr ≤ 38.5MHz.

Info:

Periodical:

Materials Science Forum (Volumes 492-493)

Edited by:

Omer Van der Biest, Michael Gasik, Jozef Vleugels

Pages:

109-114

Citation:

L. Taïbi-Benziada "Ferroelectric Ceramics Related to BaTiO3 for Z5U Multilayer Capacitors", Materials Science Forum, Vols. 492-493, pp. 109-114, 2005

Online since:

August 2005

Export:

Price:

$38.00

[1] J.M. Herbert: Ferroelectric Transducers and Sensors (Gordon and Breach, 1982).

[2] J.C. Niepce et J.M. Haussonne: BaTiO3: Matériau de Base pour les Condensateurs Céramiques Vol. 1 et 2 (Forceram, Editions Septima, 1994).

[3] F. Leccabue, B.E. Watts and G. Bocelli: Ferroelectric Thin Films, Proceedings of COST 514 European Concerted Action Workshop (Edizioni ETS , 1997).

[4] J.F. Scott: Physics World , February (1995), p.46.

[5] T. Shiosaki: Proceedings of COST 514 European Concerted Action Workshop (1997), p.19.

[6] G. Schmidt: Proceedings of 19th Spring Conference on Ferroelectricity (1991), p.29.

[7] J. Ravez, J. P. Chaminade, T. Sekiya, L. Benziada, C. Houttemane and M. Pouchard: Japanese Journal of Applied Physics Vol. 24 (1985), p.430.

[8] H. Schmitt: Proceedings of 19th Spring Conference on Ferroelectricity (1991), p.21.

[9] S.C. Abrahams, S.K. Kurtz and P.B. Jamieson: Phys. Rev. Vol. 172 (1968), p.551.

[10] L. Benziada - Taïbi, J. Ravez et P. Hagenmuller: J. Fluor. Chem. Vol. 26 (1984), p.395.

[11] S. Kazaoui , J. Ravez , C. Elissalde and M. Maglione: Ferroelectrics Vol. 135 (1992), p.85.

[12] L. Benziada and J. Claverie: Ferroelectrics Vol. 189 (1996), p.129. ε" r 10 -3 εr 4 2 0 5 6 fr 7 logf (Hz) 2 1 0 0 1 2 3 4 10-3 ε'r 10-3 ε" r Fig. 3: ε'r and ε"r versus frequency and Argand diagram for sample C at room temperature.
