Survival of Goss Grains during Cold Rolling of a Silicon Steel Single Crystal

Abstract:

Article Preview

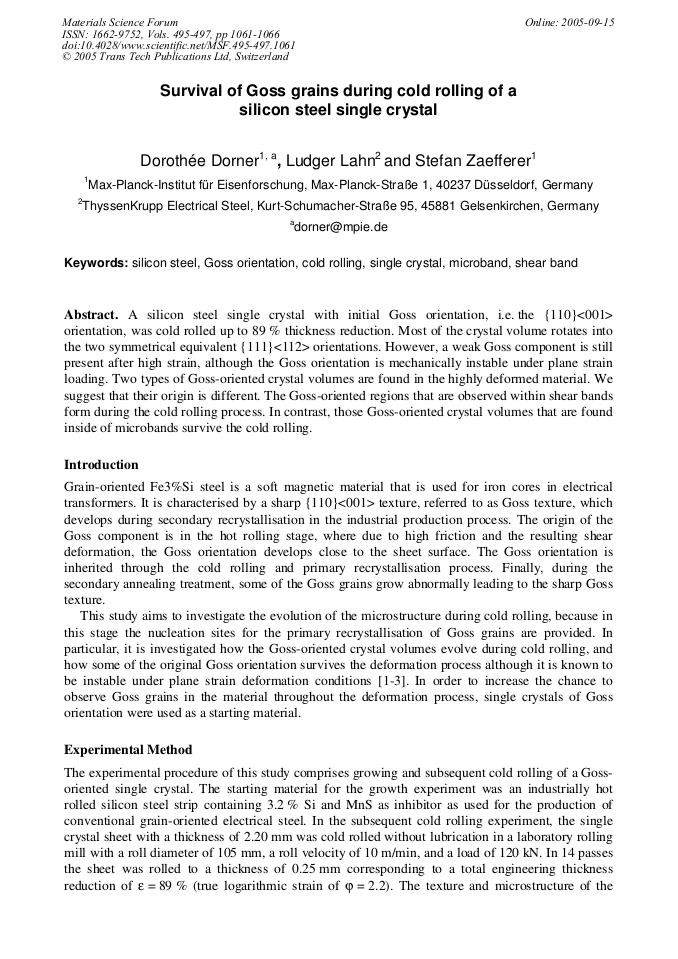

A silicon steel single crystal with initial Goss orientation, i.e. the {110}<001> orientation, was cold rolled up to 89 % thickness reduction. Most of the crystal volume rotates into the two symmetrical equivalent {111}<112> orientations. However, a weak Goss component is still present after high strain, although the Goss orientation is mechanically instable under plane strain loading. Two types of Goss-oriented crystal volumes are found in the highly deformed material. We suggest that their origin is different. The Goss-oriented regions that are observed within shear bands form during the cold rolling process. In contrast, those Goss-oriented crystal volumes that are found inside of microbands survive the cold rolling.

Info:

Periodical:

Materials Science Forum (Volumes 495-497)

Edited by:

Paul Van Houtte and Leo Kestens

Pages:

1061-1066

DOI:

10.4028/www.scientific.net/MSF.495-497.1061

Citation:

D. Dorner et al., "Survival of Goss Grains during Cold Rolling of a Silicon Steel Single Crystal", Materials Science Forum, Vols. 495-497, pp. 1061-1066, 2005

Online since:

September 2005

Export:

Price:

$35.00

In order to see related information, you need to Login.

In order to see related information, you need to Login.
