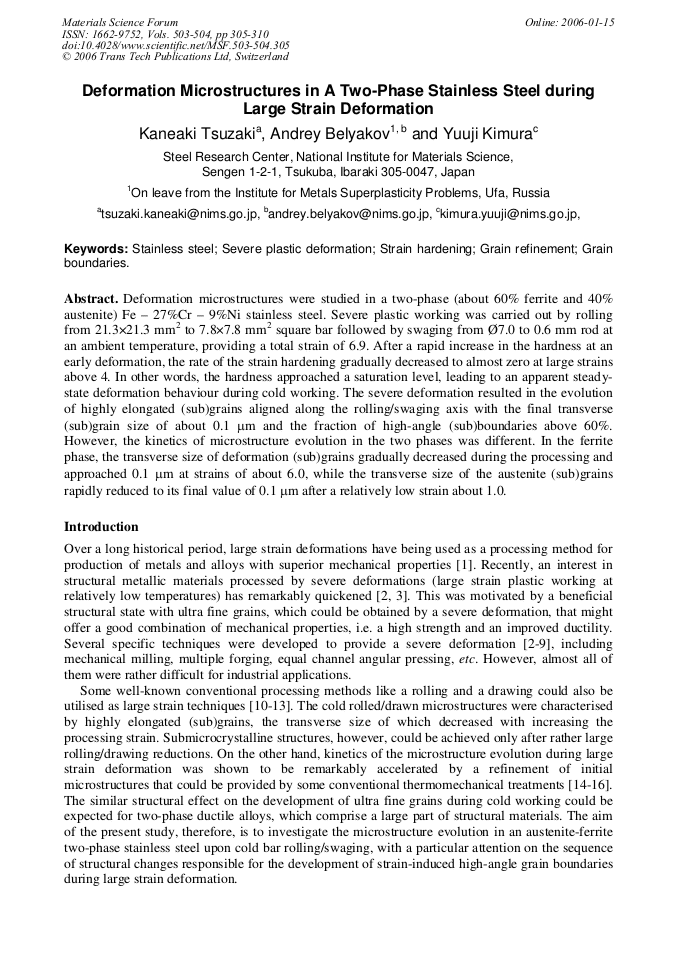

Deformation Microstructures in a Two-Phase Stainless Steel during Large Strain Deformation

Abstract:

Deformation microstructures were studied in a two-phase (about 60% ferrite and 40% austenite) Fe – 27%Cr – 9%Ni stainless steel. Severe plastic working was carried out by rolling from 21.3×21.3 mm2 to 7.8×7.8 mm2 square bar followed by swaging from Ø7.0 to 0.6 mm rod at an ambient temperature, providing a total strain of 6.9. After a rapid increase in the hardness at an early deformation, the rate of the strain hardening gradually decreased to almost zero at large strains above 4. In other words, the hardness approached a saturation level, leading to an apparent steadystate deformation behaviour during cold working. The severe deformation resulted in the evolution of highly elongated (sub)grains aligned along the rolling/swaging axis with the final transverse (sub)grain size of about 0.1 μm and the fraction of high-angle (sub)boundaries above 60%. However, the kinetics of microstructure evolution in the two phases was different. In the ferrite phase, the transverse size of deformation (sub)grains gradually decreased during the processing and approached 0.1 μm at strains of about 6.0, while the transverse size of the austenite (sub)grains rapidly reduced to its final value of 0.1 μm after a relatively low strain about 1.0.

• Periodical: Materials Science Forum (Volumes 503-504)
• Pages: 305-310
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.503-504.305
• Online since: January 2006
• Authors: Kaneaki Tsuzaki, Andrey Belyakov, Yuuji Kimura
• Keywords: Grain Boundary, Grain Refinement, Severe Plastic Deformation (SPD), Stainless Steel (SS), Strain-Hardening

References

[1] J. Wadsworth and O.D. Sherby: Progr. Mat. Sci. Vol. 25 (1980), p.35.

[2] F.J. Humphreys, P.B. Prangnell, J.R. Bowen, A. Gholinia and C. Harris: Phil. Trans. R. Soc. Lond. Vol. 357 (1999), p.1663.

[3] R.Z. Valiev, R.K. Islamgaliev and I.V. Alexandrov: Progr. Mat. Sci. Vol. 45 (2000), p.103.

[4] R. Kaibyshev and O. Sitdikov: Z. Metallkd. Vol. 85 (1994), p.738.

[5] Y. Kimura and S. Takaki: Mater. Trans. JIM Vol. 36 (1995), p.289.

[6] G.A. Salishchev, R.G. Zaripova, A.A. Zakirova and H.J. McQueen: Hot Workability of Steels and Light Alloys-Composites, H.J. McQueen, E.V. Konopleva and N.D. Ryan, eds. (TMS-CIM, Canada 1996) p.217.

[7] Y. Iwahashi, Z. Horita, M. Nemoto and T.G. Langdon: Acta Mater. Vol. 45 (1997), p.4733.

[8] Y. Saito, N. Tsuji, H. Utsunomiya, T. Sakai and R.G. Hong: Scripta Mater. Vol. 39 (1998), p.1221.

[9] A. Belyakov, T. Sakai, H. Miura and K. Tsuzaki: Phil. Mag. A Vol. 81 (2001), p.2629.

[10] J.D. Embury, A.S. Keh and R.M. Fisher: Trans. AIME Vol. 236 (1966), p.1252.

[11] G. Langford and M. Cohen: Trans. ASM Vol. 62 (1969), p.623.

[12] J. Gill Sevillano, P. Van Houtte and E. Aernoudt: Progr. Mat. Sci. Vol. 25 (1981), p.69.

[13] A. Ohmori, S. Torizuka, K. Nagai, N. Koseki and Y. Kogo: Mater. Trans. Vol. 45 (2004), p.2224.

[14] A. Belyakov, T. Sakai, H. Miura and R. Kaibyshev: Iron Steel Inst. Japan, Int. Vol. 39 (1999), p.592.

[15] A. Belyakov, K. Tsuzaki, H. Miura and T. Sakai: Acta Mater. Vol. 51 (2003), p.847.

[16] A. Belyakov, Y. Kimura, Y. Adachi and K. Tsuzaki: Mater. Trans. Vol. 45 (2004), p.2812.

[17] T. Maki and T. Furuhara: Recrystallization - Fundamental Aspects and Relations to Deformation Microstructure, N. Hansen et al. eds. (Riso National Laboratory, Denmark 2000) p.125.
