Radio Frequency Interference Characteristics of Plate-Like Soft Magnetic Powders-Polymer Composites

Abstract:

Radio frequency interference characteristics of plate-like Fe-Si-Al alloy powders-polymer composites were investigated for effective noise suppression. Broadband reflection loss characteristics were exhibited in the composites below a critical compaction pressure of 1.56 x 108 N/m2, while narrowband characteristics were shown in the composites above the critical pressure. Although the composites at 2.34 x 108 N/m2 had the highest complex permeability and complex permittivity, the loss properties did not show the broadband characteristics. The peculiar broadband characteristics were obtained in the composites with wideband dependency of the imaginary part of permittivity and permeability. These findings led us to conclude that the broadband electromagnetic interference characteristics of the composites are caused by the coupling effects of magnetic and dielectric resonance in the radio frequency range.

You might also be interested in these eBooks

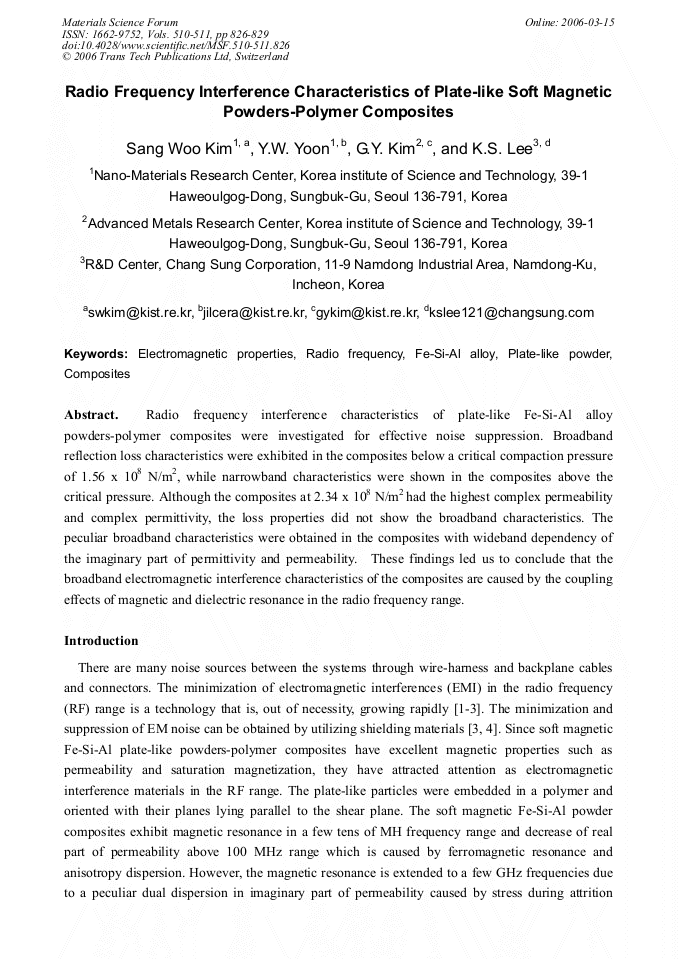

View Preview

Info:

Periodical:

Materials Science Forum (Volumes 510-511)

Pages:

826-829

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.510-511.826

Citation:

Cite this paper

Online since:

March 2006

Authors:

Sang Woo Kim, Y.W. Yoon, G.Y. Kim, Kyung Sub Lee

Keywords:

Composite, Electromagnetic Properties, Fe-Si-Al Alloy, Plate-Like Powder, Radio Frequency

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] K. Kondo, T. Chiba, H. Ono, S. Yoshida: J. Appl. Phys., Vol. 93 (2003), p.7130.

Google Scholar

[2] S. Shahparnia, O.M. Ramahi: IEEE Trans. Electromagn. Comp., Vol. 46 (2004), p.580.

Google Scholar

[3] S. Yoshida, H. Ono, S. Ando, F. Tsuda, T. Ito, Y, Shimada, M. Yamaguchi, K. Arai, S. Ohnuma, T. Maumoto: IEEE Trans. Magn., Vol. 37 (2001), p.2401.

DOI: 10.1109/20.951185

Google Scholar

[4] S. Yoshida, M. Sato, E. Sugawara, Y. Shimada: J. Appl. Phys., Vol. 85 (1999), p.4636.

Google Scholar

[2] 4 6 8 10 12 14 16 18.

Google Scholar

[2] [4] [6] [8] 6. 25E+07 N/m2 1. 56E+08 N/m2 2. 34E+08 N/m2 3. 12E+08 N/m2 4. 68E+08 N/m2 0. 045 Permeability (µµµµ , ) Frequency [GHz] Fig. 4. Variations of imaginary part of permeability for the composites with pressure. Fig. 5. Variations of imaginary part of permeability for the composites with pressure.
