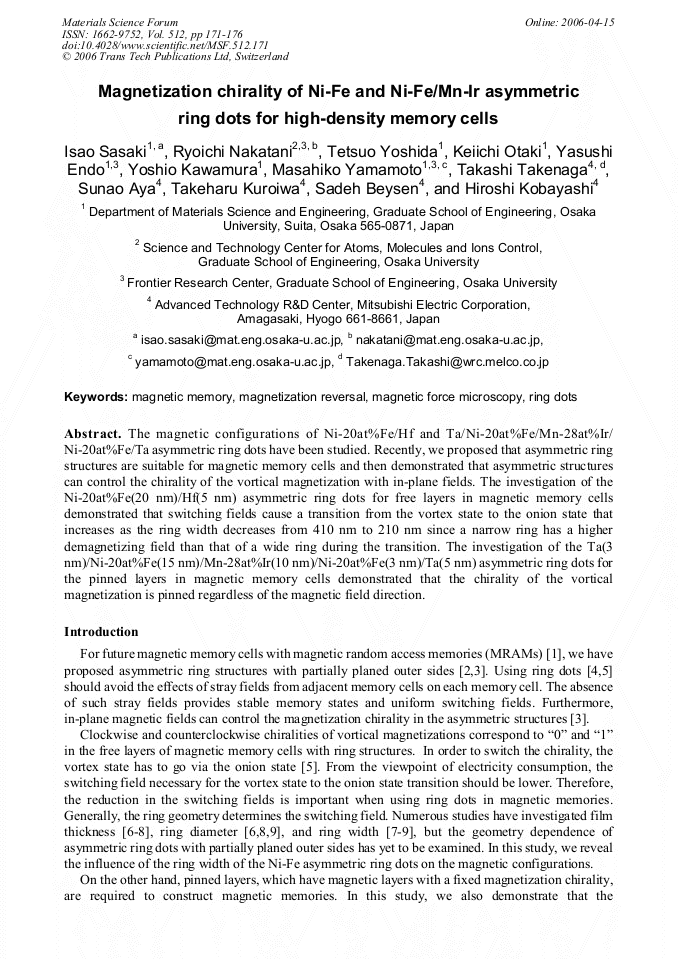

Magnetization Chirality of Ni-Fe and Ni-Fe/Mn-Ir Asymmetric Ring Dots for High-Density Memory Cells

Abstract:

The magnetic configurations of Ni-20at%Fe/Hf and Ta/Ni-20at%Fe/Mn-28at%Ir/ Ni-20at%Fe/Ta asymmetric ring dots have been studied. Recently, we proposed that asymmetric ring structures are suitable for magnetic memory cells and then demonstrated that asymmetric structures can control the chirality of the vortical magnetization with in-plane fields. The investigation of the Ni-20at%Fe(20 nm)/Hf(5 nm) asymmetric ring dots for free layers in magnetic memory cells demonstrated that switching fields cause a transition from the vortex state to the onion state that increases as the ring width decreases from 410 nm to 210 nm since a narrow ring has a higher demagnetizing field than that of a wide ring during the transition. The investigation of the Ta(3 nm)/Ni-20at%Fe(15 nm)/Mn-28at%Ir(10 nm)/Ni-20at%Fe(3 nm)/Ta(5 nm) asymmetric ring dots for the pinned layers in magnetic memory cells demonstrated that the chirality of the vortical magnetization is pinned regardless of the magnetic field direction.

• Periodical: Materials Science Forum (Volume 512)
• Pages: 171-176
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.512.171
• Online since: April 2006
• Authors: Isao Sasaki, Ryoichi Nakatani, Tetsuo Yoshida, Keiichi Otaki, Yasushi Endo, Yoshio Kawamura, Masahiko Yamamoto, Takashi Takenaga, Sunao Aya, Takeharu Kuroiwa, Sadeh Beysen, Hiroshi Kobayashi
• Keywords: Magnetic Force Microscopy (MFM), Magnetic Memory, Magnetization Reversal, Ring Dots

References

[1] S. Tehrani, J.M. Slaughter, E. Chen, M. Durlam, J, Shi and M. DeHerrera: IEEE Trans. Magn. Vol. 35 (1999), p.2814.

DOI: 10.1109/20.800991

[2] R. Nakatani and M. Yamamoto: Jpn. J. Appl. Phys. Part 1 Vol. 42 (2003), p.100.

[3] R. Nakatani, T. Yoshida, Y. Endo, Y. Kawamura, M. Yamamoto, T. Takenaga, S. Aya, T. Kuriowa, S. Beysen and H. Kobayashi: J. Appl. Phys. Vol. 95 (2004), p.6714.

DOI: 10.1063/1.1667433

[4] J. Rothman, M. Kläui, L. Lopez-Diaz, C. A. F. Vaz, A. Bleloch, J. A. C. Bland, Z. Cui and S. Speaks: Phys. Rev. Lett. Vol. 86 (2001), p.1098.

DOI: 10.1103/physrevlett.86.1098

[5] M. Kläui, C.A.F. Vaz, L. Lopez-Diaz and J.A.C. Bland: J. Phys.: Condens. Matter Vol. 15 (2003), p. R985.

[6] S.P. Li, D. Peyrade, M. Natali, A. Lebib, Y. Chen, U. Ebels, L.D. Buda and K. Ounadjela: Phys. Rev. Lett. Vol. 86 (2001), p.1102.

DOI: 10.1103/physrevlett.86.1102

[7] M. Kläui, L. Lopez-Diaz, J. Rothman, C.A.F. Vaz, J.A.C. Bland and Z. Cui: J. Magn. Magn. Mater. Vol. 240 (2002), p.7.

[8] Y.G. Yoo, M. Kläui, C.A.F. Vaz, L.J. Heyderman and J.A.C. Bland: Appl. Phys. Lett. Vol. 82 (2003), p.2470.

[9] F.J. Castaño, C.A. Ross, A. Eilez, W. Jung and C. Frandsen: Phys. Rev. B Vol. 69 (2004), p.144421.
