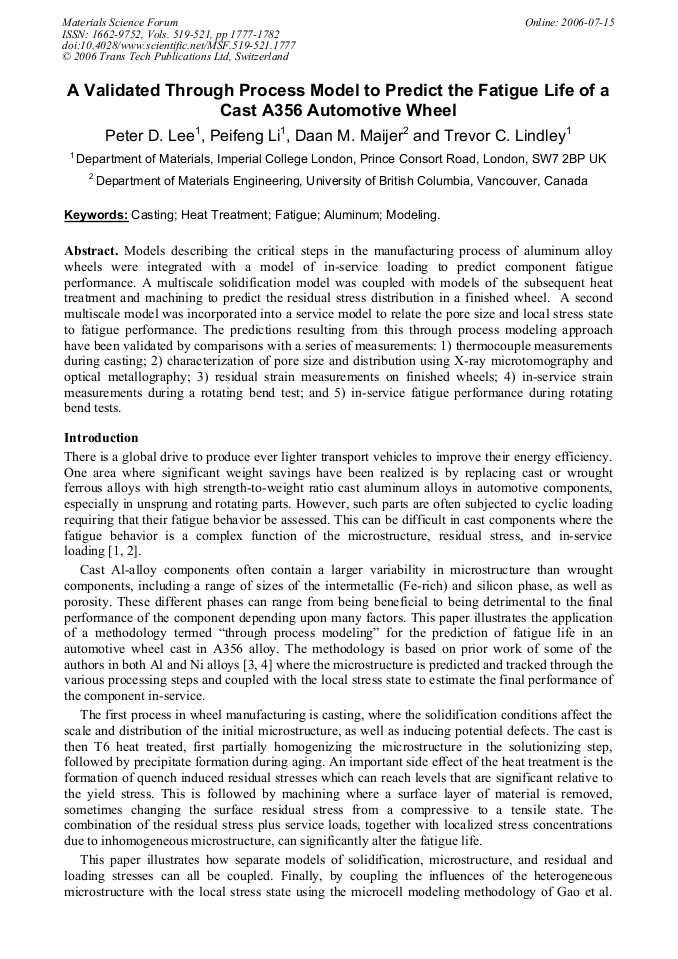

A Validated Through Process Model to Predict the Fatigue Life of a Cast A356 Automotive Wheel

Abstract:

Models describing the critical steps in the manufacturing process of aluminum alloy wheels were integrated with a model of in-service loading to predict component fatigue performance. A multiscale solidification model was coupled with models of the subsequent heat treatment and machining to predict the residual stress distribution in a finished wheel. A second multiscale model was incorporated into a service model to relate the pore size and local stress state to fatigue performance. The predictions resulting from this through process modeling approach have been validated by comparisons with a series of measurements: 1) thermocouple measurements during casting; 2) characterization of pore size and distribution using X-ray microtomography and optical metallography; 3) residual strain measurements on finished wheels; 4) in-service strain measurements during a rotating bend test; and 5) in-service fatigue performance during rotating bend tests.

• Periodical: Materials Science Forum (Volumes 519-521)
• Pages: 1777-1782
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.519-521.1777
• Online since: July 2006
• Authors: Peter D. Lee, Pei Feng Li, Daan M. Maijer, Trevor C. Lindley
• Keywords: Aluminum (Al), Casting, Fatigue, Heat Treatment, Modeling

References

[1] M. J. Caton, J. W. Jones and J. E. Allison: Mater. Sci. Eng. A Vol. 314 (2001), p.81.

[2] J. Z. Yi, Y. X. Gao, P. D. Lee, H. M. Flower and T. C. Lindley: Metall. Mater. Trans. A Vol. 34A (2003), p.1879.

[3] D. M. Maijer, Y. Gao, P. D. Lee, T. C. Lindley and T. Fukui: Metall. Mater. Trans. A Vol. 35A (2004), p.3275.

[4] S. Tin, P. Lee, A. Kermanpur, M. Rist and M. McLean: Metall. Mater. Trans. A Vol. 36A (2005), p.2493.

[5] Y. X. Gao, J. Z. Yi, P. D. Lee and T. C. Lindley: Acta Mater. Vol. 52 (2004), p.5435.

[6] B. Zhang, D. M. Maijer and S. L. Cockcroft: Submitted to Mater. Sci. Eng. A Vol.

[7] R. C. Atwood and P. D. Lee: Metall. Mater. Trans. B Vol. 33B (2002), p.209.

[8] P. D. Lee and J. D. Hunt: Acta Mater. Vol. 49 (2001), p.1383.

[9] J. Z. Yi, Y. X. Gao, P. D. Lee and T. C. Lindley: Mater. Sci. Eng. A Vol. 386 (2004), p.396.

[10] P. D. Lee, A. Chirazi, R. C. Atwood and W. Wang: Mater. Sci. Eng. A Vol. 365 (2004), p.57.

[11] R. C. Atwood, J. R. Jones, P. D. Lee and L. L. Hench: Scripta Mater. Vol. 51 (2004), p.1029.

[12] P. Li, P. D. Lee, D. M. Maijer and T. C. Lindley, in: (Eds. ), Proceedings of the Modeling of Casting, Welding and Advanced Solidification Processes XI, Opio, France, 2006 (In Press).
