Grain Refinement Performance of Aluminium Cast-Alloy by Deformed Al-Al3Ti Alloy Refiner

Hisashi Sato; Kentaro Ota; Yoshimi Watanabe; Zuo Gui Zhang; Kaneaki Tsuzaki

doi:10.4028/www.scientific.net/MSF.519-521.1859

Paper Titles

Semi-Solid Slurry Preparation without Additional Stirring, Cup-Cast Method
p.1835

Role of Grain Refining in Macrosegregation upon Direct Chill Casting of AA 2024 Round Billet
p.1841

Rheo-Extrusion of A7075 Aluminium Alloy Utilizing Semi-Solid Slurry Manufactured by Simple Method
p.1847

Structure Stabilization Al-(10-14)%Mg Alloys during the Long-Term Natural Ageing
p.1853

Grain Refinement Performance of Aluminium Cast-Alloy by Deformed Al-Al₃Ti Alloy Refiner
p.1859

Effect of Solution Treatment and Artificial Aging on the Work Hardening Characteristics of D357 Alloy Castings
p.1865

Observations of Intermetallic Compound Formation of Hot Dip Aluminized Steel
p.1871

Mechanical Behaviour in the Mushy State during Isothermal Tensile Testing
p.1877

Effect of an Addition of Silver on the Age Hardening and the Formation of a Soft Surface Layer in an Al-12mass%Zn Alloy
p.1883

HomeMaterials Science ForumMaterials Science Forum Vols. 519-521Grain Refinement Performance of Aluminium...

Grain Refinement Performance of Aluminium Cast-Alloy by Deformed Al-Al₃Ti Alloy Refiner

Abstract:

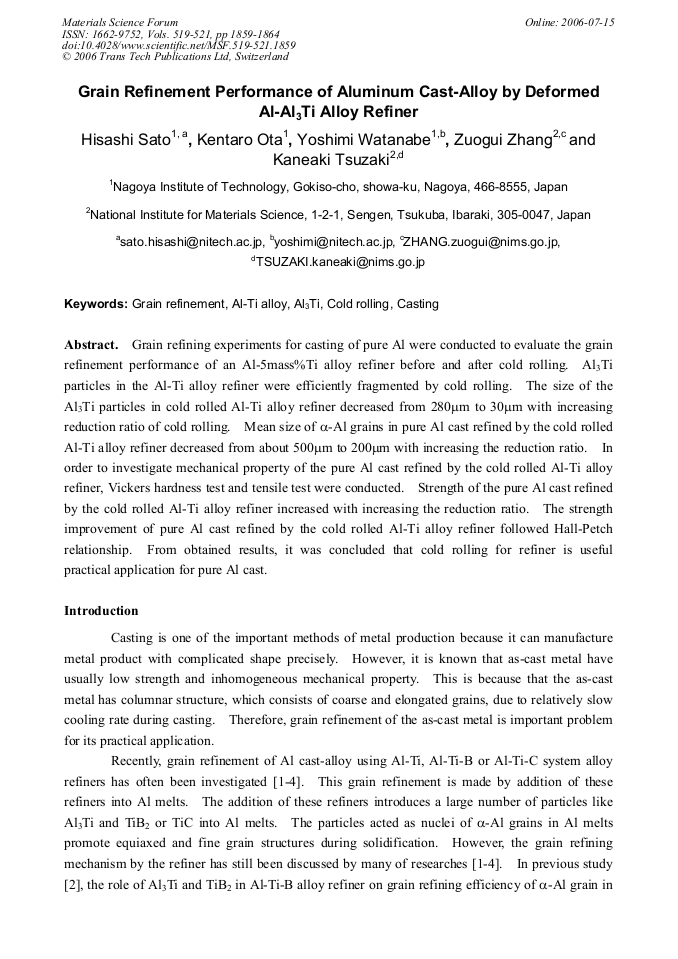

Grain refining experiments for casting of pure Al were conducted to evaluate the grain refinement performance of an Al-5mass%Ti alloy refiner before and after cold rolling. Al3Ti particles in the Al-Ti alloy refiner were efficiently fragmented by cold rolling. The size of the Al3Ti particles in cold rolled Al-Ti alloy refiner decreased from 280μm to 30μm with increasing reduction ratio of cold rolling. Mean size of α-Al grains in pure Al cast refined by the cold rolled Al-Ti alloy refiner decreased from about 500μm to 200μm with increasing the reduction ratio. In order to investigate mechanical property of the pure Al cast refined by the cold rolled Al-Ti alloy refiner, Vickers hardness test and tensile test were conducted. Strength of the pure Al cast refined by the cold rolled Al-Ti alloy refiner increased with increasing the reduction ratio. The strength improvement of pure Al cast refined by the cold rolled Al-Ti alloy refiner followed Hall-Petch relationship. From obtained results, it was concluded that cold rolling for refiner is useful practical application for pure Al cast.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Materials Science Forum (Volumes 519-521)

Pages:

1859-1864

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.519-521.1859

Citation:

Cite this paper

Online since:

July 2006

Authors:

Hisashi Sato, Kentaro Ota, Yoshimi Watanabe, Zuo Gui Zhang, Kaneaki Tsuzaki

Keywords:

Al₃Ti, Al-Ti, Casting, Cold Rolling, Grain Refinement

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Z.G. Zhang, Y. Watanabe, I.S. Kim, X. Liu and X. Bian: Metall. Mater. Trans. A Vol. 36A (2005), p.837.

Google Scholar

[2] M. Easton and D. StJohn: Metall. Mater. Trans. A Vol. 30A (1999), p.1613.

Google Scholar

[3] K. Venkateswarlu, B.S. Murty and M. Chakraborty: Mater Sci. Eng. Vol. A301 (2001), p.180.

Google Scholar

[4] Z.G. Zhang, S. Hosoda, I.S. Kim and Y. Watanabe: Mater. Sci. Eng. A, submitted.

Google Scholar

[5] Y. Saito, H. Utsunomiya, N. Tsuji and T. Sakai: Acta Mater. Vol. 47 (1999), p.579.

Google Scholar

[5] [10] [15] [20] [25] [30] 1. 2 1. 4 1. 6 1. 8 2. 0 2. 2 2. 4 Proof stress of pure Al cast, σ0. 2, [MPa] d -0. 5.

Google Scholar

[5] [10] [15] [20] [25] [30] 1. 2 1. 4 1. 6 1. 8 2. 0 2. 2 2. 4 Proof stress of pure Al cast, σ0. 2, [MPa] d -0. 5 Fig. 7 Variation of 0. 2% proof stress, σ0. 2, of pure Al cast refined by Al-Ti alloy refiner as a function of d-0. 5.

Google Scholar
