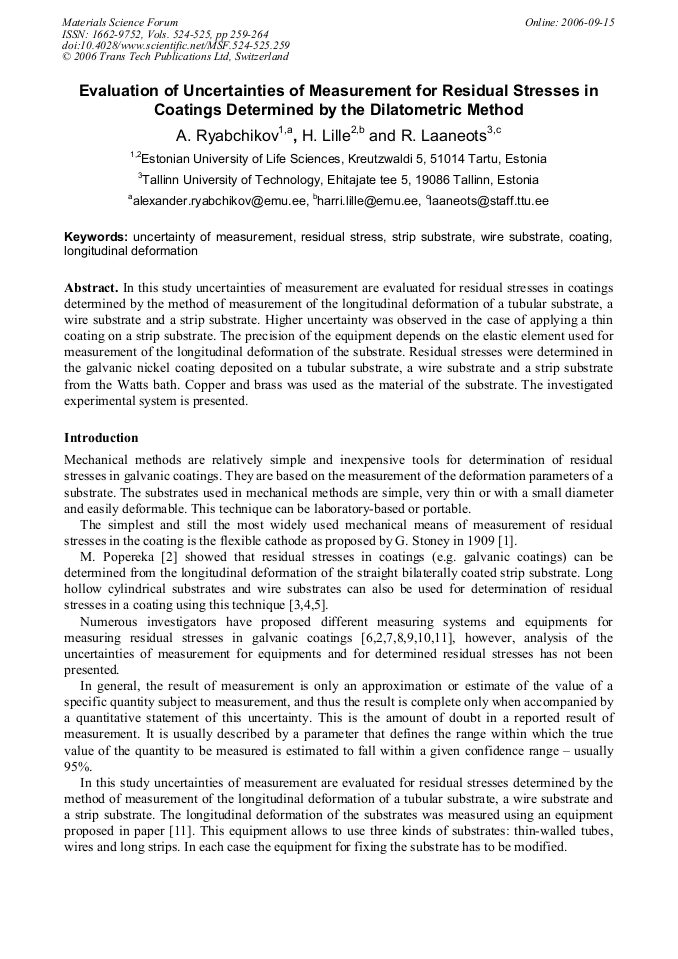

Evaluation of Uncertainties of Measurement for Residual Stresses in Coatings Determined by the Dilatometric Method

Abstract:

In this study uncertainties of measurement are evaluated for residual stresses in coatings determined by the method of measurement of the longitudinal deformation of a tubular substrate, a wire substrate and a strip substrate. Higher uncertainty was observed in the case of applying a thin coating on a strip substrate. The precision of the equipment depends on the elastic element used for measurement of the longitudinal deformation of the substrate. Residual stresses were determined in the galvanic nickel coating deposited on a tubular substrate, a wire substrate and a strip substrate from the Watts bath. Copper and brass was used as the material of the substrate. The investigated experimental system is presented.

• Periodical: Materials Science Forum (Volumes 524-525)
• Pages: 259-264
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.524-525.259
• Online since: September 2006
• Authors: Alexander Ryabchikov, Harri Lille, R. Laaneots
• Keywords: Coating, Longitudinal Deformation, Residual Stress, Strip Substrate, Uncertainty of Measurement, Wire Substrate

References

[1] G. Stoney: Proc. Roy. Soc. A 82 (1909), p.172.

[2] M. Ya. Popereka: Zavodskaya Laboratoriya Vol. 27 (1961), No. 9, p.1135 (in Russian).

[3] J.P. Kõo: Zap. Leningr. Selskokhoz. in-ta Vol. 62 (1961), p.179 (in Russian).

[4] M. Perakh: Surface Technology Vol. 4 (1976), p.538.

[5] V.I. Ignat'ev: Zavodskaya Laboratoriya Vol. 61 (1995), No. 9, p.56 (in Russian).

[6] A. Brenner and S. Senderoff: Journal of Res. Nat. Bur. of Stand. Vol. 42 (1949), p.89.

[7] A. Dvořák and L. Vrobel: Trans. of the Inst. of Metal Finishing Vol. 49 (1971), p.153.

[8] E. Wagner and H. Speckhardt: Metalloberfläche Vol. 30 (1976), No. 4, p.175.

[9] M.A. Shluger, V.I. Ignat'ev, L.D. Tok and R.E. Gimel'farb: Zavodskaya Laboratoriya Vol. 46 (1980), No. 8, p.764 (in Russian).

[10] V.M. Krutskikh, B.M. Platonov, Yu. D. Gamburg and Yu.M. Polukarov: Zavodskaya Laboratoriya Vol. 48 (1982), No. 6, p.81 (in Russian).

[11] A. Ryabchikov, H. Lille and J. Kõo: Mater. Sci. Forum Vol. 404-407 (2002), p.263.

[12] S.G. Rabinovich: Measurement errors and uncertainties. Theory and practice (Springer-Verlag New York, Inc., 2000).

[13] R. Laaneots and O. Mathiesen: Fundamentals of measurement (Tallinna Raamatutrükikoda, Tallinn 2002) (in Estonian).

[14] E.F. Rybicki, J.R. Shadley, Y. Xiong and D.J. Greving: Journal of Thermal Spray Techn. Vol. 4 (1995), p.377.

[15] P. Grant: NPL Report MATC(MN)020 (2002) http: /www. npl. co. uk/materials/residualstress/publications. html.

[16] J. Kõo and A. Ryabchikov: Proc. 19th Symp. on Exp. Mech. of Solids. Jachranka, Poland (2000), p.319.

[17] J. Kõo, H. Lille and A. Ryabchikov: Mater. Sci. Forum Vol. 404-407 (2002), p.849.
