Experimental Methodology Destined to Establish the Frequency Response Function (FRF) between a Dynamic Force and the Signals Emitted by a Piezoelectric Dynamometer

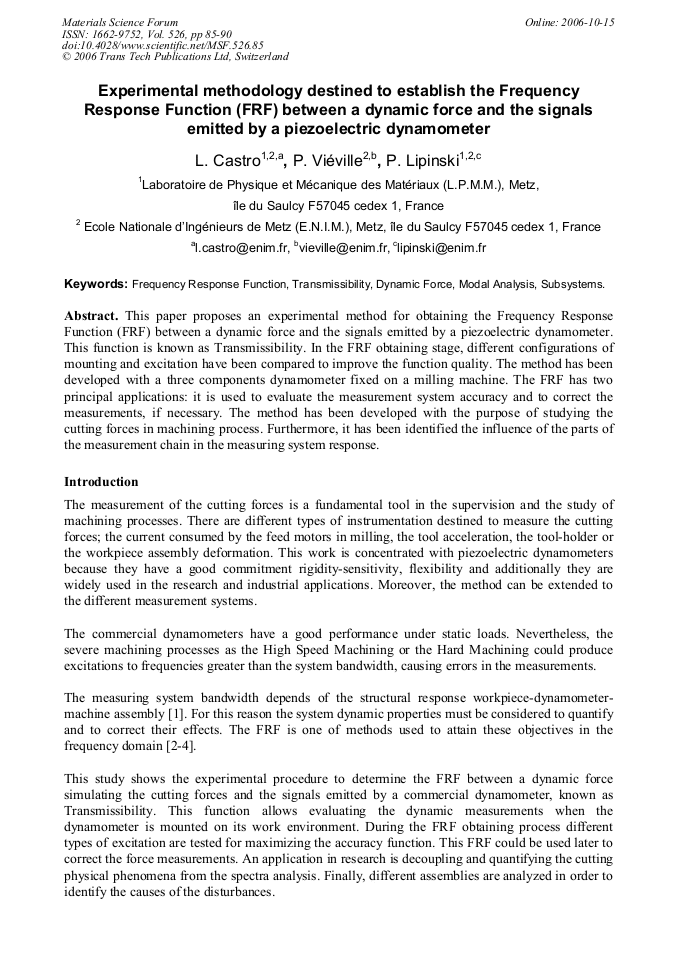

Article Preview

Abstract:

This paper proposes an experimental method for obtaining the Frequency Response Function (FRF) between a dynamic force and the signals emitted by a piezoelectric dynamometer. This function is known as Transmissibility. In the FRF obtaining stage, different configurations of mounting and excitation have been compared to improve the function quality. The method has been developed with a three components dynamometer fixed on a milling machine. The FRF has two principal applications: it is used to evaluate the measurement system accuracy and to correct the measurements, if necessary. The method has been developed with the purpose of studying the cutting forces in machining process. Furthermore, it has been identified the influence of the parts of the measurement chain in the measuring system response.

You might also be interested in these eBooks
Advances in Materials Processing Technologies, 2006 View Preview

Info:

Periodical:

Materials Science Forum (Volume 526)

Pages:

85-90

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.526.85

Citation:

Cite this paper

Online since:

October 2006

Authors:

L. Castro, P. Viéville, Paul Lipiński

Keywords:

Dynamic Force, Frequency Response Function (FRF), Modal Analysis, Subsystems, Transmissibility
