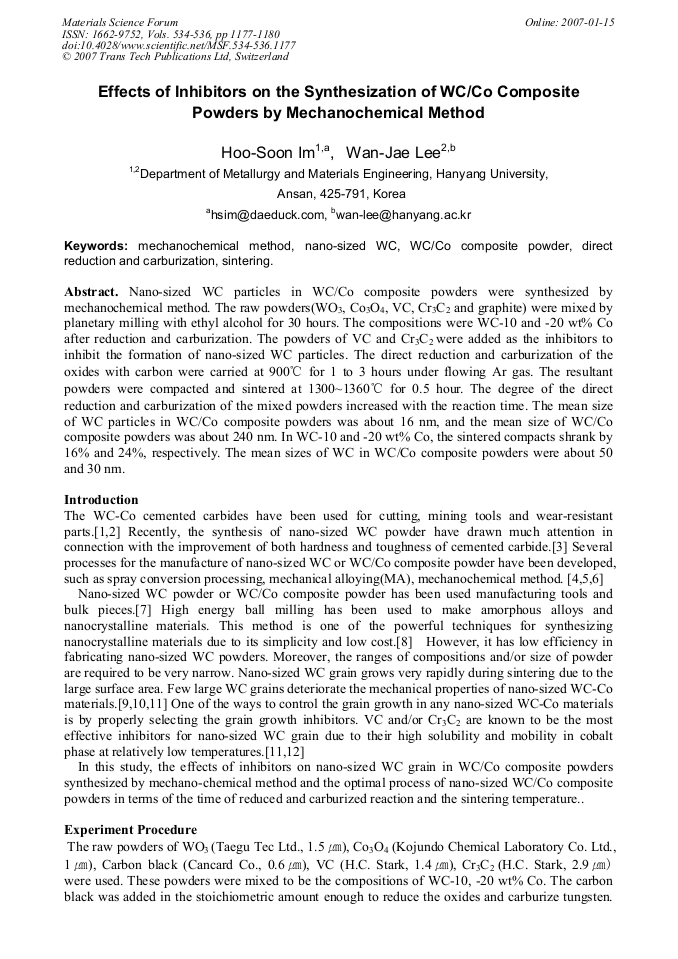

Effects of Inhibitors on the Synthesization of WC/Co Composite Powders by Mechanochemical Method

Abstract:

Nano-sized WC particles in WC/Co composite powders were synthesized by mechanochemical method. The raw powders(WO3, Co3O4, VC, Cr3C2 and graphite) were mixed by planetary milling with ethyl alcohol for 30 hours. The compositions were WC-10 and -20 wt% Co after reduction and carburization. The powders of VC and Cr3C2 were added as the inhibitors to inhibit the formation of nano-sized WC particles. The direct reduction and carburization of the oxides with carbon were carried at 900°C for 1 to 3 hours under flowing Ar gas. The resultant powders were compacted and sintered at 1300~1360°C for 0.5 hour. The degree of the direct reduction and carburization of the mixed powders increased with the reaction time. The mean size of WC particles in WC/Co composite powders was about 16 nm, and the mean size of WC/Co composite powders was about 240 nm. In WC-10 and -20 wt% Co, the sintered compacts shrank by 16% and 24%, respectively. The mean sizes of WC in WC/Co composite powders were about 50 and 30 nm.

Info:

Periodical:

Materials Science Forum (Volumes 534-536)

Main Theme:

Progress in Powder Metallurgy

Edited by:

Duk Yong Yoon, Suk-Joong L. Kang, Kwang Yong Eun and Yong-Seog Kim

Pages:

1177-1180

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.534-536.1177

Citation:

H. S. Im et al., "Effects of Inhibitors on the Synthesization of WC/Co Composite Powders by Mechanochemical Method", Materials Science Forum, Vols. 534-536, pp. 1177-1180, 2007

Online since:

January 2007

Authors:

Hoo Soon Im, Jah Mahn Hur, Wan Jae Lee

Keywords:

Direct Reduction and Carburization, Mechanochemical Method, Nanosized WC, Sintering, WC/Co Composite Powder

Export:

RIS, BibTeX

Price:

$38.00

Permissions:

Request Permissions

Add to Cart

References

[1] S.I. Cha, S.H. Hong, G.H. Ha, B.K. Kim: Scripta Materialia Vol. 44 (2001), p.1039.

[2] G. Gille, J. Bredthauer, B. Gries, B. Mende, W. Heinrich: Int. J. of Refractory Metals & Hard Materials Vol. 18 (2000), p.87.

[3] B.K. Kim, G.H. Ha, G.G. Lee: Nanostructured Materials Vol. 9 (1997), p.223.

[4] L. E. McCandlish, B. H. Kear and J. Bhatiar: U.S. Patent. App. S. N. 433742.

[5] M. S. El-Eskandarany, A. A. Mahday, H. A. Ahmed and A. H. Amer: J. of Alloys and Compounds (2000), p.315.

[6] B. K. Kim, G. H. Ha, G. G. Lee, D. W. Lee: Nanostuctured Materials, Vol. 9 (1997), p.162.

[7] G.R. Goren-Muginstein, S. Berger, A. Rosen, Nanostructured Materials Vol. 5 (1998), p.795.

[8] C.C. Koch: Nanostructured Materials Vol. 9 (1997), p.13.

[9] D.F. Carroll: 14th Int. Plansee Seminar, Vol. 2. Reutte (1997), p.168.

[10] D.F. Carroll, C.L. Connr: Metal Powder Industries Federation Vol. 12 (1997), p.61.

[11] W.D. Schubert, A. Bock, B. Lux: Int. J. Refrac. Met. and Hard Mat. Vol. 13 (1995), p.281.

[12] Hayashi H, Fluke Y, Suzuki H: Powder and Powder Metal. Vol. 19 (1972), p.67.
