High Temperature Oxidation Resistance of Two Ni(Co)CrAlYSi(Hf) Overlay Coatings

Abstract:

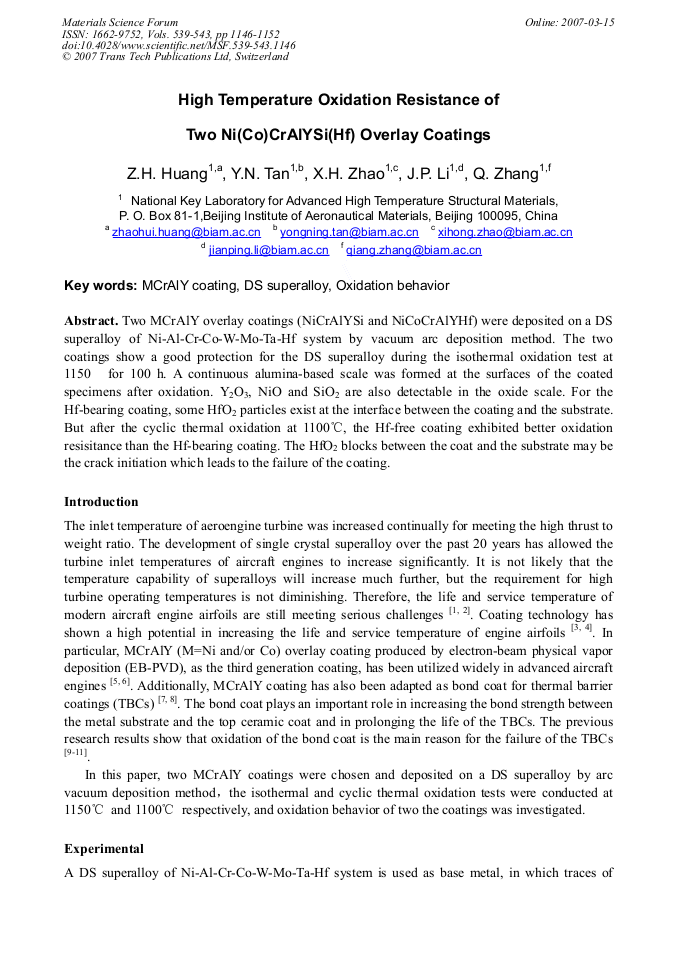

Article Preview

Two MCrAlY overlay coatings (NiCrAlYSi and NiCoCrAlYHf) were deposited on a DS superalloy of Ni-Al-Cr-Co-W-Mo-Ta-Hf system by vacuum arc deposition method. The two coatings show a good protection for the DS superalloy during the isothermal oxidation test at 1150 for 100 h. A continuous alumina-based scale was formed at the surfaces of the coated specimens after oxidation. Y2O3, NiO and SiO2 are also detectable in the oxide scale. For the Hf-bearing coating, some HfO2 particles exist at the interface between the coating and the substrate. But after the cyclic thermal oxidation at 1100°C, the Hf-free coating exhibited better oxidation resisitance than the Hf-bearing coating. The HfO2 blocks between the coat and the substrate may be the crack initiation which leads to the failure of the coating.

Info:

Periodical:

Materials Science Forum (Volumes 539-543)

Main Theme:

Edited by:

T. Chandra, K. Tsuzaki, M. Militzer , C. Ravindran

Pages:

1146-1152

Citation:

Z. H. Huang et al., "High Temperature Oxidation Resistance of Two Ni(Co)CrAlYSi(Hf) Overlay Coatings", Materials Science Forum, Vols. 539-543, pp. 1146-1152, 2007

Online since:

March 2007

Export:

Price:

$38.00

[1] M.J. Goulette, in: Superalloys 1996, edited by R.D. Kissinger, D.J. Deye, D.L. Anton, A. D. Cetel, M.V. Nathal, T.M. Pollock, D.A. Woodfond, TMS Publication, Warrendale 1996, p.3.

[2] B.B. Seth, in: Superalloys 2000, edited by T.M. Pollock, R.D. Kissinger, R.R. Bowman, K.A. Green, M. McLean, J.J. Olson, Schirra, TMS Publication, Warrendale 2000, p.3.

[3] W.S. Walston, in: Superalloys 2004, edited by S.K.A. Green, T.M. Pollock, H. Harada, T.E. Howson, R. C. Read, J. J. Schirra, S, Walston , TMS Publication, Warrendale 2004, p.519.

[4] G.W. Goward: Materials Science and Technology Vol. 2(1986), p.194.

[5] R, Mevrel, C. Duret, R. Pichoir: Materials Science and Technology Vol. 2(1986), p.201.

[6] R. Mevvel: Mater Sci & Eng A Vol. 120(1989), p.13.

[7] A. Maricocchi, A. Bartz, D. Wortman: J Thermal Spray Technol Vol. 6(1997), p.193.

[8] W. Beele, N. Czech, T. Schulenberg: MPS Review Vol. 8(1997), p.19.

[9] N.P. Padture, M . Gell, E.H. Jordan: Science Vol. 296(2002), p.280.

[10] A. Rabiei, A.G. . Evans: Acta Mater Vol. 48(2000), p.3963.

[11] S. A. Haynes, M.K. Ferber, W.D. Porter, E.D. Rigney: Oxid. Met. Vol. 52(1999), p.31.

[12] Al2O3, JCPDS number 46-1212.

[13] Y2O3, JCPDS number 47-1274.

[14] HfO2, JCPDS number 74-1506.

[15] B.A. Pint, J.A. Haynes, K.L. More, in: Superalloys 2000, edited by T.M. Pollock, R.D. Kissinger, R.R. Bowman, K.A. Green, M. McLean, J.J. Olson, Schirra, TMS Publication, Warrendale 2000, p.629.

[16] Cr2O3, JCPDS number 82-1484.

[17] SiO2, JCPDS number 12-708.

[18] AlTaO4, JCPDS number 47-1796.
