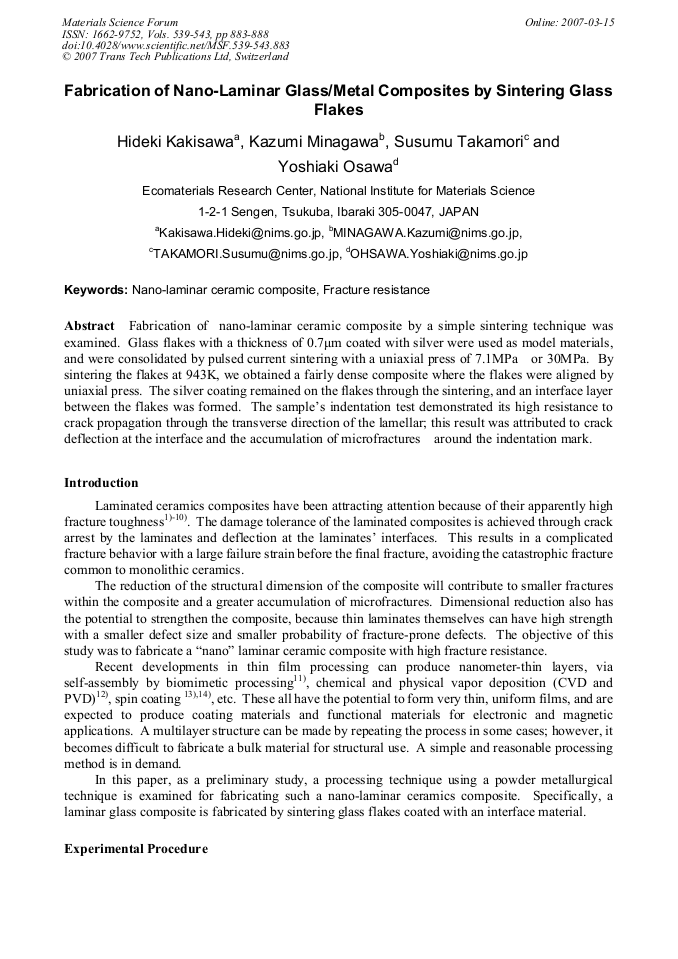

Fabrication of Nano-Laminar Glass/Metal Composites by Sintering Glass Flakes

Abstract:

Fabrication of nano-laminar ceramic composite by a simple sintering technique was examined. Glass flakes with a thickness of 0.7μm coated with silver were used as model materials, and were consolidated by pulsed current sintering with a uniaxial press of 7.1MPa or 30MPa. By sintering the flakes at 943K, we obtained a fairly dense composite where the flakes were aligned by uniaxial press. The silver coating remained on the flakes through the sintering, and an interface layer between the flakes was formed. The sample’s indentation test demonstrated its high resistance to crack propagation through the transverse direction of the lamellar; this result was attributed to crack deflection at the interface and the accumulation of microfractures around the indentation mark.

• Periodical: Materials Science Forum (Volumes 539-543)
• Pages: 883-888
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.539-543.883
• Online since: March 2007
• Authors: Hideki Kakisawa, Kazumi Minagawa, Susumu Takamori, Yoshiaki Osawa
• Keywords: Fracture Resistance, Nano-Laminar Ceramic Composite

References

[1] Chan, H.M., Annu. Rev. Mater. Sci. 27, 249-282 (1997).

[2] Harmer, M.P., Chan H.M. and Miller G.A., J. Am. Ceram. Soc. 75 (7), 1715-1728 (1992).

[3] CLEGG, W.J., Acta Metall. Mater. 40 (11), 3085-3093 (1992).

[4] Oechsner, M., Hillman, C. and Lange, F.F., J. Am, Ceram. Soc. 79 (7): 1834-1838 (1996).

[5] Ohji, T., Shigegaki, Y., Miyajima, T. and Kanzaki, S., J. Am, Ceram. Soc. 80 (4): 991-994 (1997).

[6] Hatton, B. and Nicholson, P.S., J. Am, Ceram. Soc. 84 (3): 571-576 (2001).

[7] Huang, J.L., Chang, Y.L. and Lu, H.H., J. Mater. Res. 12 (9): 2337-2344 (1997).

[8] Phillips, W.J., CLEGG, W.J. and Clyne, T.W., Acta Metall. Mater. 41 (3) 805-817 (1992).

[9] You, C., Jiang, D.L. and Tan, S.H., J. Am, Ceram. Soc. 87 (4): 759-761 (2004).

[10] Pontin, M.G. and Lange, F.F., J. Am, Ceram. Soc. 88 (5): 1315-1317 (2005).

[11] Kato, T., Sugawara, A. and Hosoda, N., Avd. mater. 14 (12) 869-877 (2002).

[12] Choy, K.L., Prog. Mater. Sci. 48 (2): 57-170 (2003).

[13] Tu, Y.L., Calzada, M.L., Phillips, N.J. and Milne, S.J., J. Am. Ceram. Soc. 79 (2) 441-448 (1996).

[14] Cheung, M.C., Chan, H.L.W., Zhou, Q.F. and Choy, C.L., Nanostruct. Mater. 11 (7), 837-844 (1999).

[15] B.R. Lawn and F.R. Fuller, J. Mater. Sci. 10, 2016 (1975).

[16] B.R. Lawn and T.R. Wilshaw, Fracture of Brittle Solid (Cambridge University Press, London, 1975), Chapter 3.

[17] B.R. Lawn, A.G. Evans and D.B. Marshall, J. Am. Ceram. Soc., 1980, 63, 574.

[18] G.R. Anstis, T. Chantikul, B.R. Lawn and D.B. Marshall, J. Am. Ceram. Soc. 64, 533 (1981).
