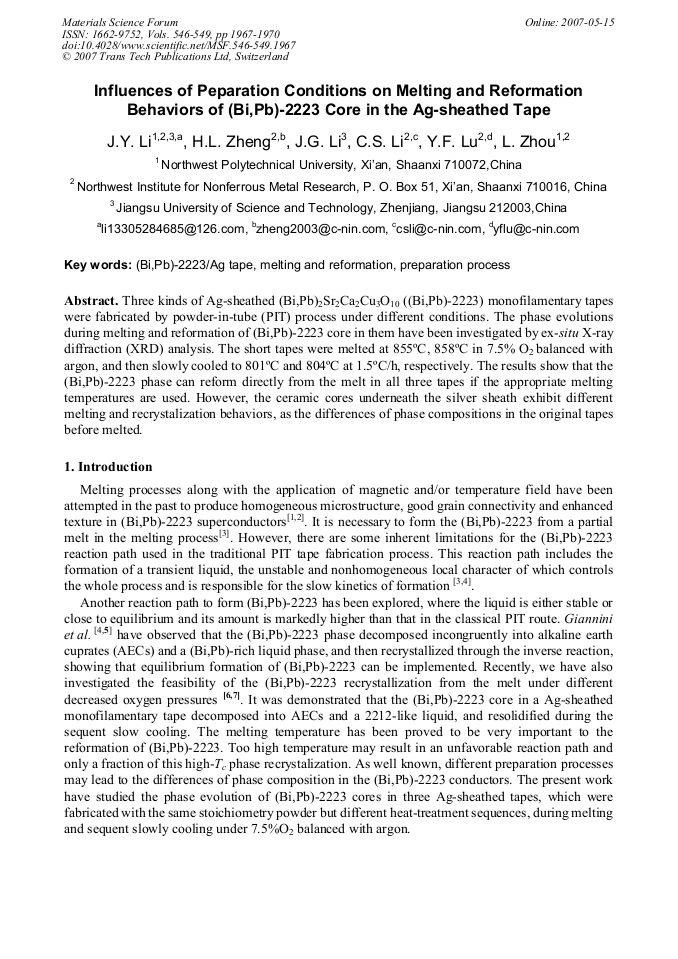

Influences of Preparation Conditions on Melting and Reformation Behaviors of (Bi,Pb)-2223 Core in the Ag-Sheathed Tape

Abstract:

Three kinds of Ag-sheathed (Bi,Pb)2Sr2Ca2Cu3O10 ((Bi,Pb)-2223) monofilamentary tapes were fabricated by powder-in-tube (PIT) process under different conditions. The phase evolutions during melting and reformation of (Bi,Pb)-2223 core in them have been investigated by ex-situ X-ray diffraction (XRD) analysis. The short tapes were melted at 855°C, 858°C in 7.5% O2 balanced with argon, and then slowly cooled to 801°C and 804°C at 1.5°C/h, respectively. The results show that the (Bi,Pb)-2223 phase can reform directly from the melt in all three tapes if the appropriate melting temperatures are used. However, the ceramic cores underneath the silver sheath exhibit different melting and recrystalization behaviors, as the differences of phase compositions in the original tapes before melted.

• Periodical: Materials Science Forum (Volumes 546-549)
• Pages: 1967-1970
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.546-549.1967
• Online since: May 2007
• Authors: J.Y. Li, H.L. Zheng, J.G. Li, Cheng Shan Li, Ya Feng Lu, Lian Zhou
• Keywords: (Bi, Pb)-2223/Ag Tape, Melting, Preparation Process, Reformation

References

[1] S.K. Xia, A. Polasek, L.A. Saleh, B. Marinkovic, et al, Physica C 408-410 (2004) 911-912.

[2] E. Flahaut, et al, Physica B 350 (2004) e339-e341.

[3] R. Flukiger, et al, IEEE Transactions on applied superconductivity, Vol. 11, No. 1, March (2001).

[4] E Giannini, I Savysyuk, V Garnier, et al., Supercond. Sci. Technol. 15 (2002) 1577-1586.

[5] E. Giannini, R. Passerini, P. Toulemonde, E. Walker, et al., Physica C 372-376(2002) 895-898.

[6] J.Y. Li, L. Soubeyroux, H.L. Zheng, C.S. Li, Y.F. Lu, et al., Physica C (in press).

[7] J.Y. Li, H.L. Zheng, J.G. Li, C.S. Li, Y.F. Lu, L. Zhou, Rare Metal Materials and Engineering, (in press).

[8] V Garnier, et al, Supercond. Sci. Technol. 16 (2003) 820-826.

[9] A. Polasek, P. Majewski, E.T. Serra, F. Rizzo, Physica C 408-410 (2004) 860-861.

DOI: 10.1016/j.physc.2004.03.221

[20] 22 24 26 28 30 32 34 36 38 40.

[44] [3] - 2223.

[1] - 2201.

[2] - 2212.

[4] - 2: 1 AEC.

[1] [11] [1] [3] 33.

[3] [3] [3] [2] [2] Tape A M0 M858 M858-834 M858-804 Intensity (a. u. ).

[2] Theta (degree).

[20] 22 24 26 28 30 32 34 36 38 40.

[3] - 2223.

[1] - 2201.

[4] - 2: 1 AEC.

[4] [3] [4] [3] 3.

[3] [3] [3] [1] [1] [1] Tape B M858-804 M858-834 M858 M0.

[2] Theta (degree).

[20] 22 24 26 28 30 32 34 36 38 40.

[3] - 2223.

[1] - 2201.

[1] [1] [1] [3] [3] [3] 3Tape C M858-804 M858-834 M858 M0.

[2] Theta (degree) (a) (b) (c) Figure 5 XRD patterns of (Bi, Pb)-2223 tape A (a), B (b) and C (c) after melted at Tp= 858ºC and cooled down to 834ºC and 804ºC at 0. 025ºC/min.
