For Libraries For Publication Open Access Downloads About Us Contact Us
Paper Titles
Effect of Minor Sc and Zr on the Fatigue Properties of Al-Mg-Mn Alloy
p.863
Aging Characteristics of 7A52 Al-Zn-Mg Alloy
p.867
Structure and Property of Nickel-Modified Ultrahigh Strength Al-Zn-Mg-Cu Alloy by Spray Forming
p.871
Optimizing Solution Heat Treatment to Improve Mechanical Properties of Al Alloy 7055
p.877
Prediction of Hardness of Aluminum Alloy 7055 by Quench Factor Analysis
p.881
Shear Pressing for Grain Refinement of Al-Mg-Li Sheet
p.885
Particle-Stimulated Nucleation of Recrystallization for Grain-Size Control in 01420 Al-Li Alloy
p.889
3D FEM Simulation of Void Growth in Aluminum Single Crystals
p.893
Effect of Trace Element Er on Al-Mg and Al-Mg-Mn Alloys
p.899

Prediction of Hardness of Aluminum Alloy 7055 by Quench Factor Analysis

Article Preview

Abstract:

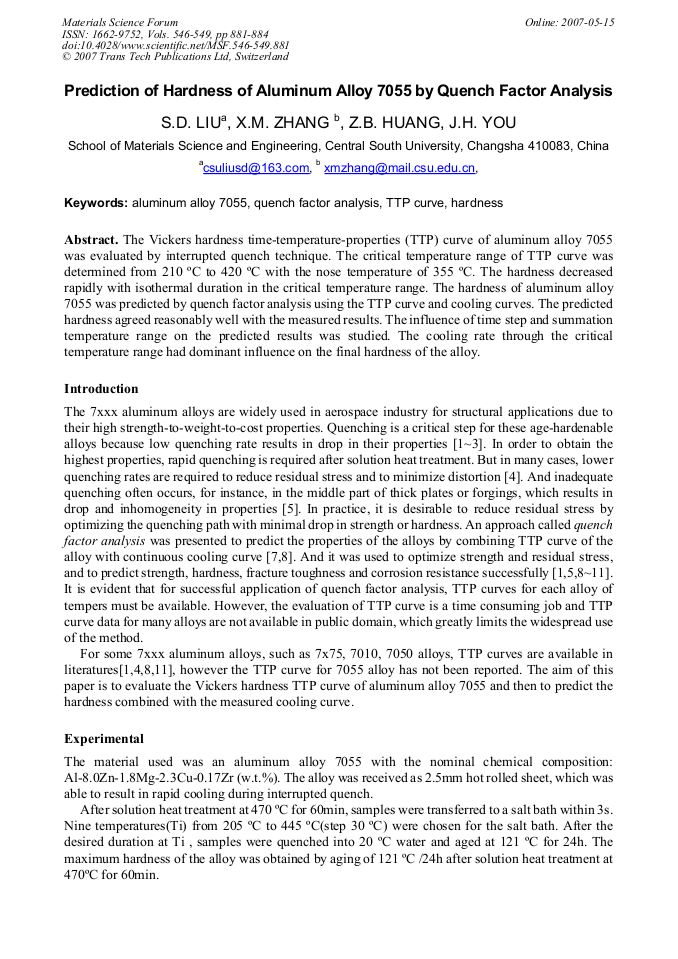

The Vickers hardness time-temperature-properties (TTP) curve of aluminum alloy 7055 was evaluated by interrupted quench technique. The critical temperature range of TTP curve was determined from 210 °C to 420 °C with the nose temperature of 355 °C. The hardness decreased rapidly with isothermal duration in the critical temperature range. The hardness of aluminum alloy 7055 was predicted by quench factor analysis using the TTP curve and cooling curves. The predicted hardness agreed reasonably well with the measured results. The influence of time step and summation temperature range on the predicted results was studied. The cooling rate through the critical temperature range had dominant influence on the final hardness of the alloy.

You might also be interested in these eBooks
Progress in Light Metals, Aerospace Materials and Superconductors View Preview

Info:

Periodical:

Materials Science Forum (Volumes 546-549)

Pages:

881-884

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.546-549.881

Citation:

Cite this paper

Online since:

May 2007

Authors:

Sheng Dan Liu, Xin Ming Zhang, Z.B. Huang, J.H. You

Keywords:

AA 7055 Aluminum Alloy, Hardness, Quench Factor Analysis, TTP Curve

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2007 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

References

[1] J.S. Robinson, R.L. Cudd and D.A. Tanner: J. Mater. Process. Technol Vol. 119(2001), p.261.

Google Scholar

[2] S.T. Lim, S.J. Yun and S.W. Nam: Mater. Sci. Engi. A Vol. 371(2004), p.82.

Google Scholar

[3] A. Deschamps, Y. Br�chet: Mater. Sci. Engi. A Vol. 251(1998), p.200.

Google Scholar

[4] C.E. Bates, G.E. Totten: Heat Treat. Metals, Vol. 4(1988), p.89.

Google Scholar

[5] D.S. MacKenzies: Ph. D Dissertation, University of Missouri-Rolla, Dec. (2002).

Google Scholar

[6] W.L. Fink, L.A. Willey: Trans. AIME Vol. 175(1948), p.414.

Google Scholar

[7] J.W. Evancho, J.T. Staley: Metall. Trans. A Vol. 5(1974), p.43.

Google Scholar

[8] J.T. Staley: Mater. Sci. Technol Vol. 3(1987), p.923.

Google Scholar

[9] J.T. Staley, R.D. Doherty and A.P. Jaworsik: Metall. Trans. A Vol. 24(1993), p.2417.

Google Scholar

[10] G.P. Dolan, J.S. Robinson: J. Mater. Process. Technol Vol. 153-154(2004), p.346.

Google Scholar

[11] R.J. Flynn, J.S. Robinson: J. Mater. Process. Technol Vol. 153-154(2004), p.674.

Google Scholar

[12] S.D. Liu, X.M. Zhang and J.H. You: accepted by Materials Science and Technology(2006).

Google Scholar

[13] J.D. Bernardin, I. Mudawar: Int J. Heat Mass Transfer Vol. 38, 5 , (1995), p.863.

Google Scholar

© 2025 Trans Tech Publications Ltd. All rights are reserved, including those for text and data mining, AI training, and similar technologies. For open access content, terms of the Creative Commons licensing CC-BY are applied.
Scientific.Net is a registered trademark of Trans Tech Publications Ltd.
