Comparison of Microstructure and Mechanical Properties between ZM21 and ZME210 with Different Hot Extrusion Ratios

Jian Peng; Cheng Meng Song; Ya Zhong Zhao; Fu Sheng Pan

doi:10.4028/www.scientific.net/MSF.610-613.796

Paper Titles

Choice of Bubble Radius in Floatation Refining of Magnesium Alloy
p.775

Computer Simulation and Optimization of Equal Channel Angular Extrusion of AZ31 Magnesium Alloy
p.780

Effect of Solid Solution Time on the Microstructure and Mechanical Properties of AZ81-4Gd Magnesium Alloy
p.783

A Study of Hot Extrusion of 6063 Aluminum Alloy-Clad AZ31B Magnesium Alloy Bar
p.791

Comparison of Microstructure and Mechanical Properties between ZM21 and ZME210 with Different Hot Extrusion Ratios
p.796

Mechanical Properties and Microstructures of Mg-Al-Zn Alloys with High Aluminum Contents
p.801

Preparation of Semi-Solid Billet of ZW61 Alloy by Equal Channel Angular Extrusion
p.806

Microstructure and Mechanical Properties of an Mg-Zn-Zr Alloy Modified by Rare Earth of Erbium
p.810

Deformation Behavior and Dynamic Recrystallization of As-Cast Mg-Y-Nd-Gd-Zr Alloy: A Study with Processing Map
p.815

HomeMaterials Science ForumMaterials Science Forum Vols. 610-613Comparison of Microstructure and Mechanical...

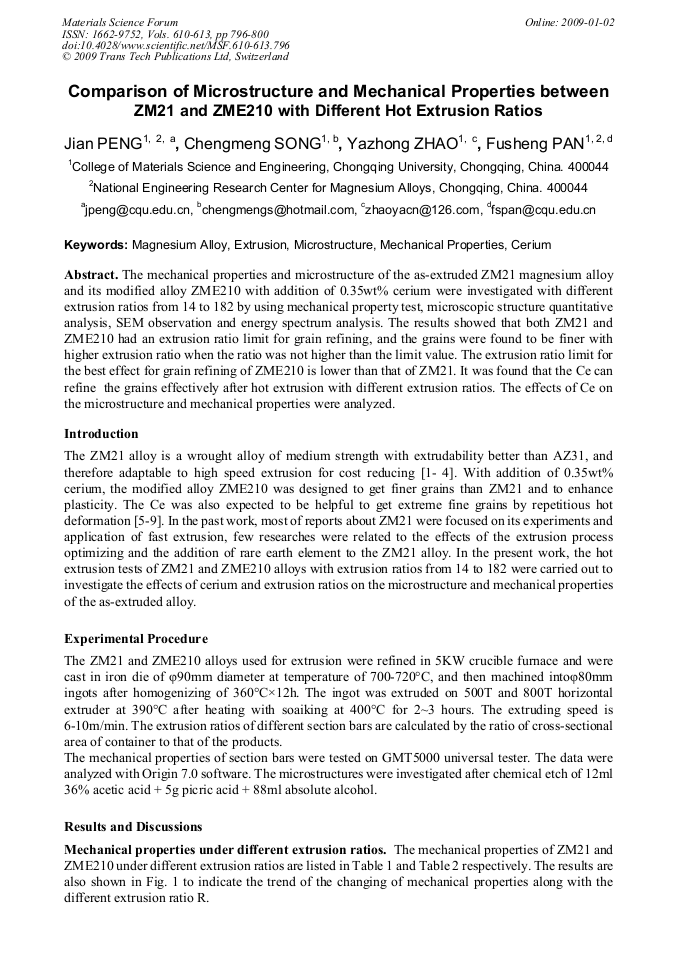

Comparison of Microstructure and Mechanical Properties between ZM21 and ZME210 with Different Hot Extrusion Ratios

Abstract:

The mechanical properties and microstructure of the as-extruded ZM21 magnesium alloy and its modified alloy ZME210 with addition of 0.35wt% cerium were investigated with different extrusion ratios from 14 to 182 by using mechanical property test, microscopic structure quantitative analysis, SEM observation and energy spectrum analysis. The results showed that both ZM21 and ZME210 had an extrusion ratio limit for grain refining, and the grains were found to be finer with higher extrusion ratio when the ratio was not higher than the limit value. The extrusion ratio limit for the best effect for grain refining of ZME210 is lower than that of ZM21. It was found that the Ce can refine the grains effectively after hot extrusion with different extrusion ratios. The effects of Ce on the microstructure and mechanical properties were analyzed.
