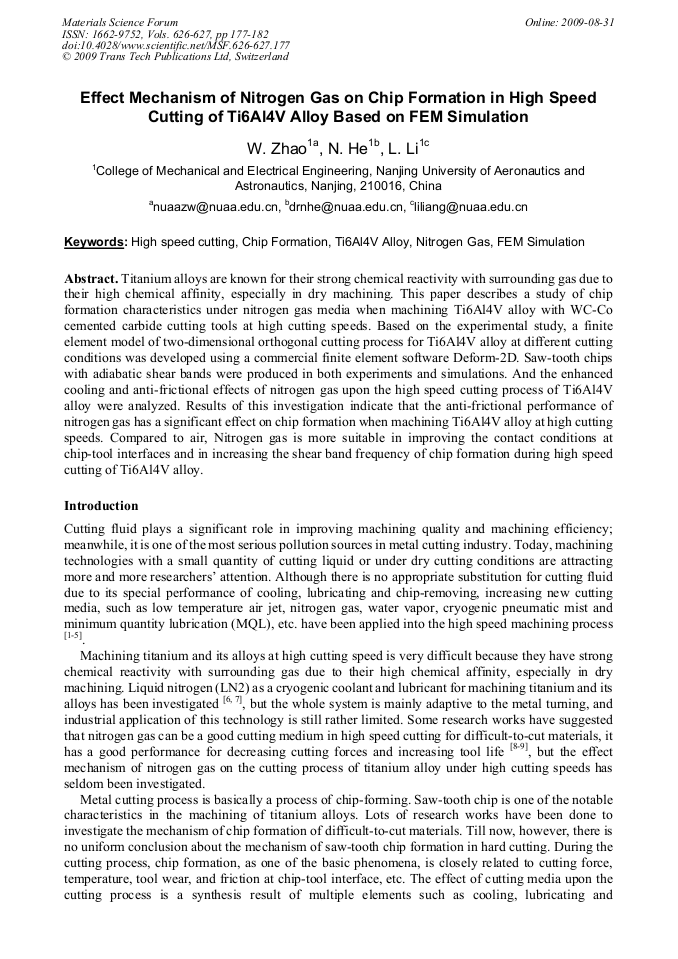

Effect Mechanism of Nitrogen Gas on Chip Formation in High Speed Cutting of Ti6Al4V Alloy Based on FEM Simulation

Abstract:

Titanium alloys are known for their strong chemical reactivity with surrounding gas due to their high chemical affinity, especially in dry machining. This paper describes a study of chip formation characteristics under nitrogen gas media when machining Ti6Al4V alloy with WC-Co cemented carbide cutting tools at high cutting speeds. Based on the experimental study, a finite element model of two-dimensional orthogonal cutting process for Ti6Al4V alloy at different cutting conditions was developed using a commercial finite element software Deform-2D. Saw-tooth chips with adiabatic shear bands were produced in both experiments and simulations. And the enhanced cooling and anti-frictional effects of nitrogen gas upon the high speed cutting process of Ti6Al4V alloy were analyzed. Results of this investigation indicate that the anti-frictional performance of nitrogen gas has a significant effect on chip formation when machining Ti6Al4V alloy at high cutting speeds. Compared to air, Nitrogen gas is more suitable in improving the contact conditions at chip-tool interfaces and in increasing the shear band frequency of chip formation during high speed cutting of Ti6Al4V alloy.

• Periodical: Materials Science Forum (Volumes 626-627)
• Pages: 177-182
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.626-627.177
• Online since: August 2009
• Authors: Wei Zhao, Ning He, Liang Li
• Keywords: Chip Formation, Finite Element (FE) Simulation, High-Speed Cutting, Nitrogen Gas, Ti-6Al-4V Alloy

References

[1] N. He, L. Li, X.L. Li: Mater. Sci. Forum, Vol. 471-472 (2004), p.140.

[2] Z.L. Man, N. He, K. Wu, et al.: Trans. of Nanjing University of Aeronautics and Astronautics, Vol. 19 (2002), p.140.

[3] J.Y. Liu, R.D. Han, Y.F. Sun: Inter. J. of Machine Tools & Manufacture, Vol. 45 (2005), p.687.

[4] Q.L. An, Y.C. Fu, J.H. Xu, et al.: Trans. of Nanjing University of Aeronautics and Astronautics, Vol. 9 (2005), p.230.

[5] H.A. Kishawy, M. Dumitrescu, E. -G. Ng, et al.: Inter. J. of Machine Tools & Manufacture, Vol. 45 (2005), p.219.

[6] S.Y. Hong, Y. Ding: Inter. J. of Machine Tools & Manufacture, Vol. 41 (2001), p.1417.

[7] S.Y. Hong, Y. Ding, W. Jeong: Inter. J. of Machine Tools & Manufacture, Vol. 41 (2001), p.2271.

[8] W. Zhao, N. He, L. Li, et al.: Key Engineering Materials, Vol. 315-316(2006), p.588.

[9] Zhao Wei, He Ning, and Li Liang: Proc. 7th International Conference on Frontiers of Design and Manufacturing (Guang Dong, China, June 19~22, 2006).

[10] Zhao Wei, He Ning and Li Liang: J. of Harbin Institute of Technology (New Series), Vol. 15 (2008), p.564.

[11] Zhao Wei: Research on the Green High Speed Machining of Titanium Alloy (Ph.D. Dissertation, Nanjing University of Aeronautics and Astronautics, 2006) (in Chinese).

[12] L. Li, N. He: Proc. 5th International conference on High Speed Machining (METZ, France, March 14~16, 2006).
