Study on Thermal Errors of High Speed Motorized Spindle on 5-Axis CNC Machine Tools

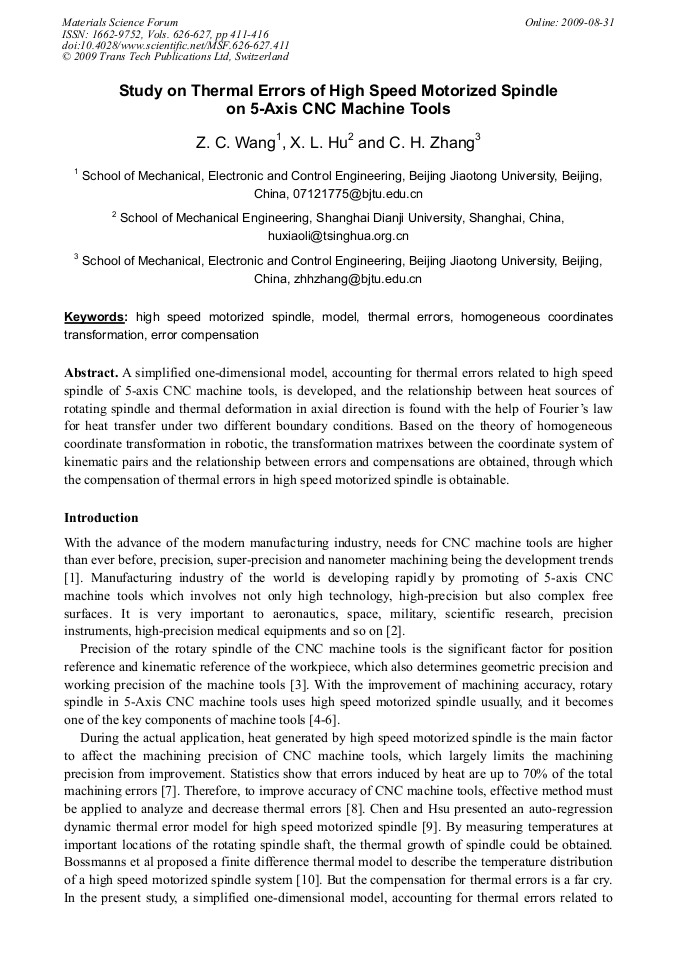

Article Preview

Abstract:

A simplified one-dimensional model, accounting for thermal errors related to high speed spindle of 5-axis CNC machine tools, is developed, and the relationship between heat sources of rotating spindle and thermal deformation in axial direction is found with the help of Fourier’s law for heat transfer under two different boundary conditions. Based on the theory of homogeneous coordinate transformation in robotic, the transformation matrixes between the coordinate system of kinematic pairs and the relationship between errors and compensations are obtained, through which the compensation of thermal errors in high speed motorized spindle is obtainable.
