Effect of Cooling Rate on Morphology and Crystallography of Lath Martensite in Fe-Ni Alloys

Abstract:

The development of blocks and subblocks in the lath martensite was observed with SEM/EBSD and TEM/Kikuchi diffraction patterns analyses. Morphology of lath martensite formed below Ms temperature was observed using step quenching method in 18 mass% Ni maraging steel. The development of lath martensite structure can be described as follow; lath groups with single K-S variant start to form at the austenite grain boundary. Next, other sub-blocks appear adjacent to the lath groups formed first and these lath groups form macroscopic blocks observed in optical microscopy. The morphologies of the lath martensite in Fe -23 mass% Ni alloy cooled at different cooling rates after austenitization were also observed. The packet size and block thickness decreases with increasing cooling rate, although the sub-block thickness do not change. A packet locally contains small packets with different relationship of close packed planes, and the amount of small packets increases with increasing the cooling rate.

You might also be interested in these eBooks

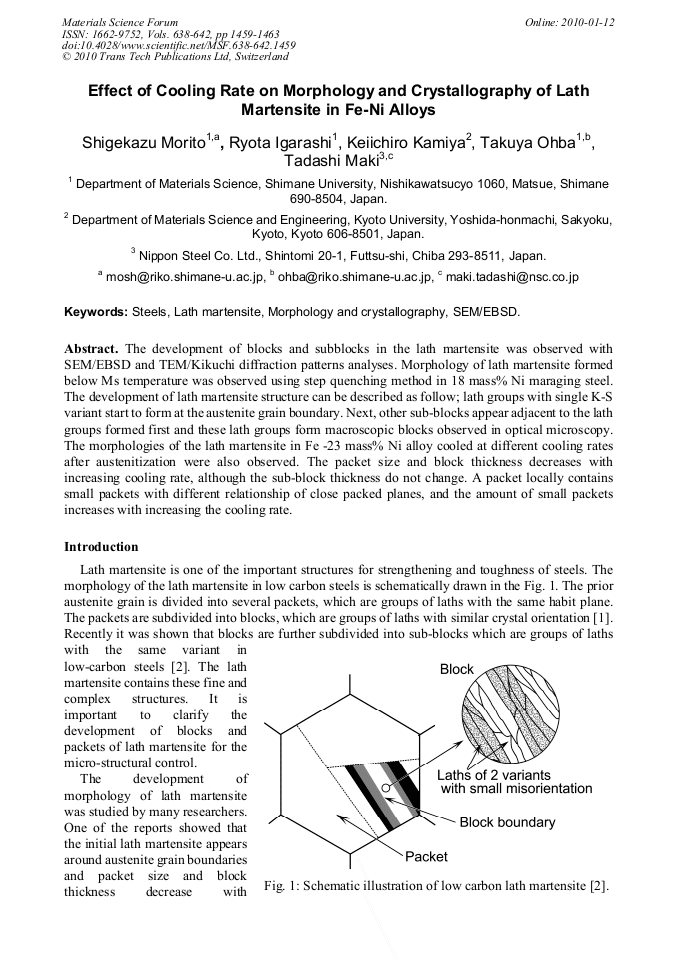

View Preview

Info:

Periodical:

Materials Science Forum (Volumes 638-642)

Pages:

1459-1463

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.638-642.1459

Citation:

Cite this paper

Online since:

January 2010

Authors:

Shigekazu Morito, Ryota Igarashi, Keiichiro Kamiya, Takuya Ohba, Tadashi Maki

Keywords:

Crystallography, Lath Martensite, Morpholoy, SEM/EBSD, Steel

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] J.M. Marder, A.R. Marder, Trans. of ASM, 62 (1969) 1-10.

Google Scholar

[2] S. Morito, H. Tanaka, R. Konishi, T. Furuhara, T. Maki: Acta Materialia, 51 (2003) 1789-1799.

DOI: 10.1016/s1359-6454(02)00577-3

Google Scholar

[3] K. Tsuzaki, T. Maki: J. Jpn. Inst. Metals, 45 (1981) 126-134.

Google Scholar

[4] S. Morito, J. Nishikawa, T. Ohba, T. Furuhara, T. Maki: submitted to Proc. of Int. Conf. on Martensitic Transformation (ICOMAT) 2008 (2008).

Google Scholar

[5] A. Lambert-Perlade, A.F. Gourgues, A. Pineau, Acta Mater., 52 (2004) 2337-2348.

Google Scholar

[6] Y. Edamatsu, S. Morito, T. Ohba, Y. Adachi: submitted to Proc. of 17th Int. Federation for Heat Treatment and Surface Engineering Congress 2008 (2008).

Google Scholar
